Network
Segmentation II
Figure 4
shows the Switch 1100 in a second workgroup situation. This
setup could be that of a small office within a large corporation, or part of
a larger corporate network. Most of the switch ports have multiple
endstations.

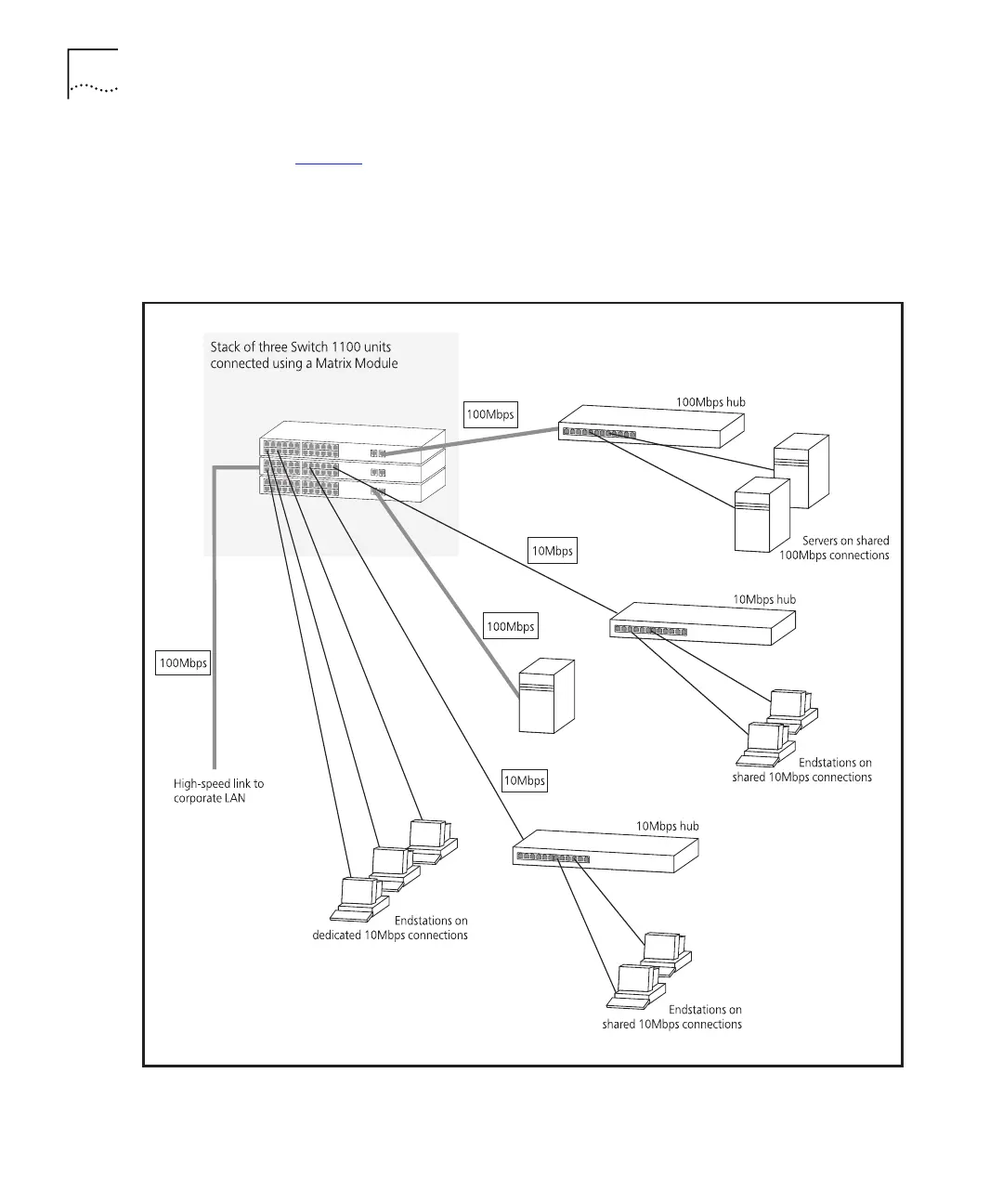

Figure 4
Using the Switch 1100 to segment your network
