Configuration Rules
for Fast Ethernet
The topology rules for 100Mbps Fast Ethernet are slightly different to
those for 10Mbps Ethernet. Figure 6
illustrates the key topology rules and
provides examples of how they allow for large-scale Fast Ethernet
networks.

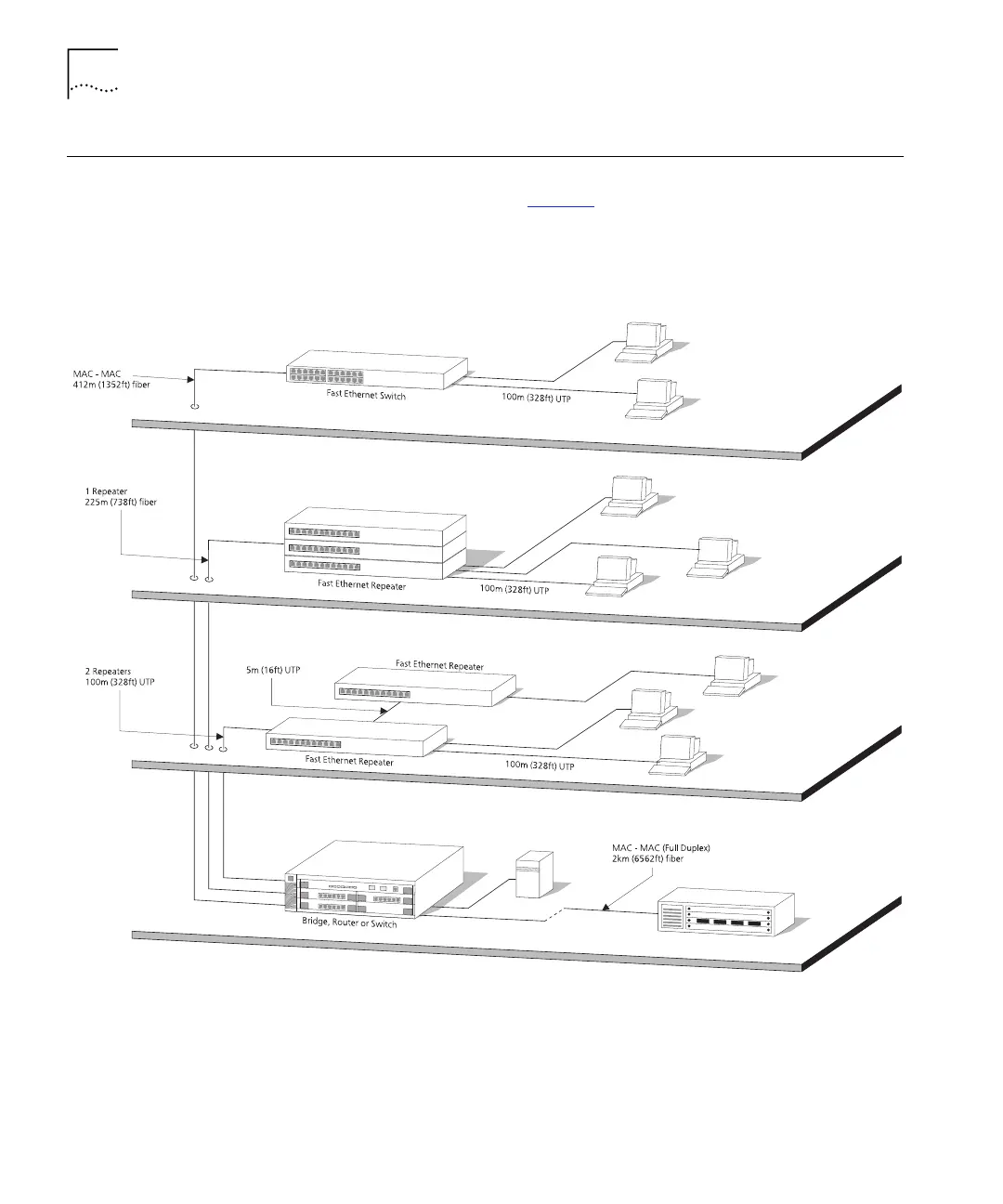

Figure 6
Fast Ethernet configuration rules
