Network Configuration Examples 19
Desktop Switching
Figure 5
shows the Switch 1100 used for a group of users in a large
corporate network. Here switching is brought to the desktop with a
single endstation per port. Local servers are connected via 100Mbps Fast
Ethernet links.

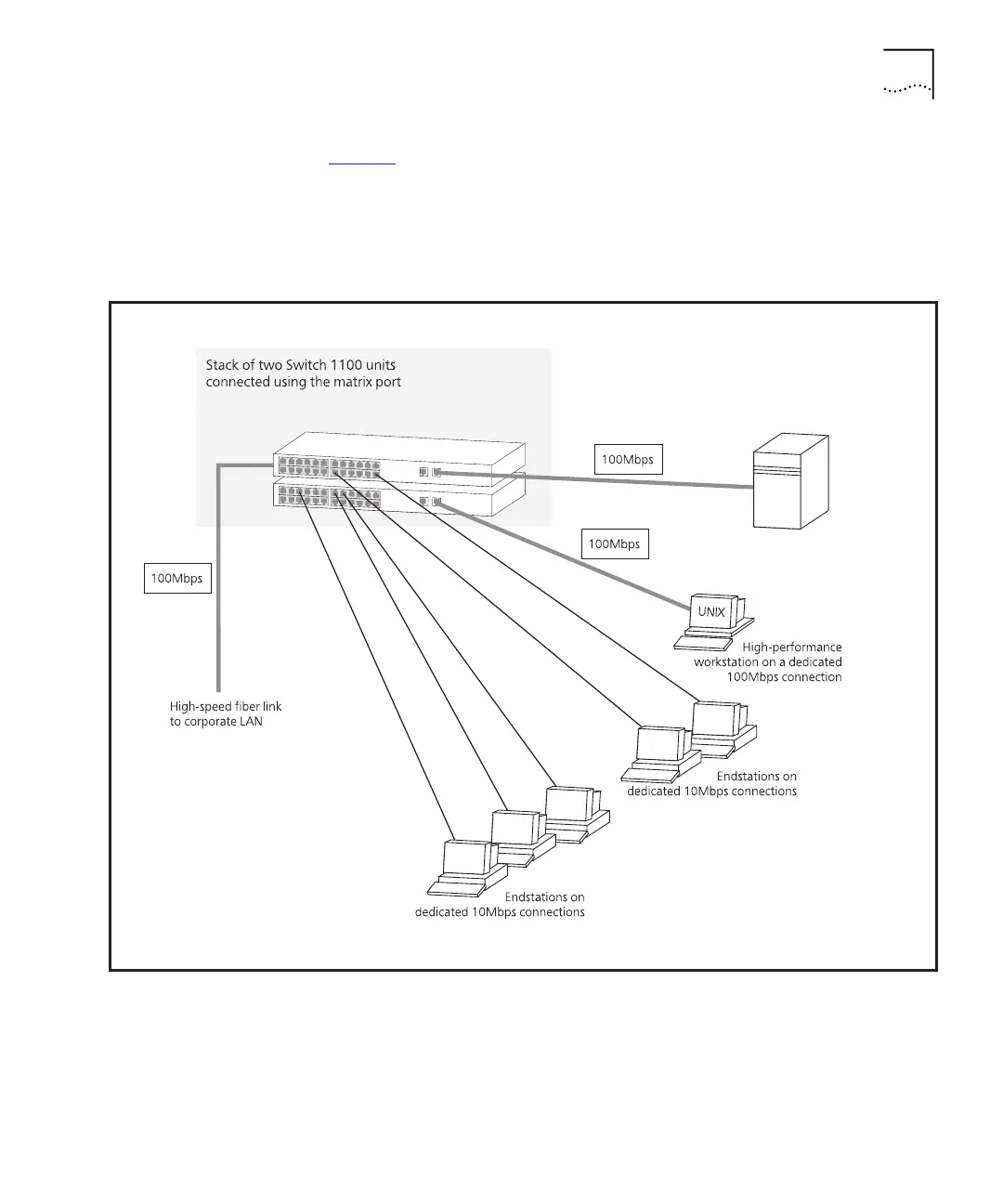

Figure 5
Using the Switch 1100 in a desktop environment
