2-4

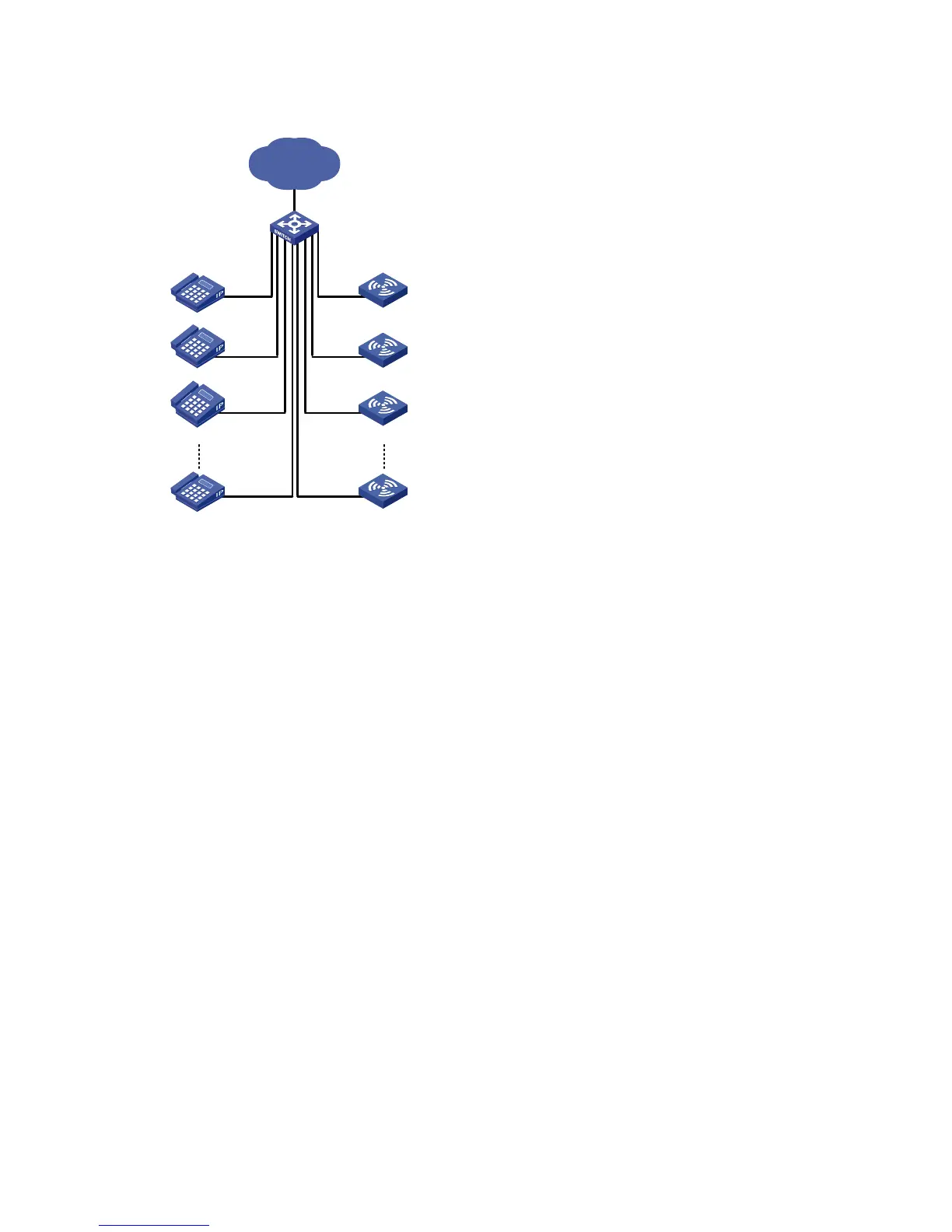

Network diagram
Figure 2-1 PoE profile application
Network
IP Phone
Switch A
AP
IP Phone
IP Phone
IP Phone
AP
AP
AP
Eth1/0/1~Eth1/0/5 Eth1/0/6~Eth1/0/10
Configuration procedure
# Create Profile 1, and enter PoE profile view.
<SwitchA> system-view
[SwitchA] poe-profile Profile1
# In Profile 1, add the PoE policy configuration applicable to Ethernet 1/0/1 through Ethernet 1/0/5 ports
for users of group A.
[SwitchA-poe-profile-Profile1] poe enable
[SwitchA-poe-profile-Profile1] poe mode signal
[SwitchA-poe-profile-Profile1] poe priority critical
[SwitchA-poe-profile-Profile1] poe max-power 3000
[SwitchA-poe-profile-Profile1] quit
# Display detailed configuration information for Profile1.
[SwitchA] display poe-profile name Profile1
Poe-profile: Profile1, 3 action
poe enable
poe max-power 3000
poe priority critical
# Create Profile 2, and enter PoE profile view.
[SwitchA] poe-profile Profile2
# In Profile 2, add the PoE policy configuration applicable to Ethernet 1/0/6 through Ethernet 1/0/10
ports for users of group A.
[SwitchA-poe-profile-Profile2] poe enable
