1-4
[Sysname-Ethernet1/0/1] am ip-pool 202.10.20.1 20
Combining Access Management with Port Isolation
Network requirements
Client PCs are connected to the external network through Switch A (an Ethernet switch).
The IP addresses of the PCs of Organization 1 are in the range 202.10.20.1/24 to
202.10.20.20/24, and those of the PCs in Organization 2 are in the range 202.10.20.25/24
to 202.10.20.50/24 and the range 202.10.20.55 to 202.10.20.65/24.
z Allow the PCs of Organization 1 to access the external network through Ethernet 1/0/1
of Switch A.
z Allow the PCs of Organization 2 to access the external network through Ethernet 1/0/2
of Switch A.
z Ethernet 1/0/1 and Ethernet 1/0/2 belong to VLAN 1. The IP address of VLAN-interface
1 is 202.10.20.200/24.
z PCs of Organization 1 are isolated from those of Organization 2 on Layer 2.
Network diagram

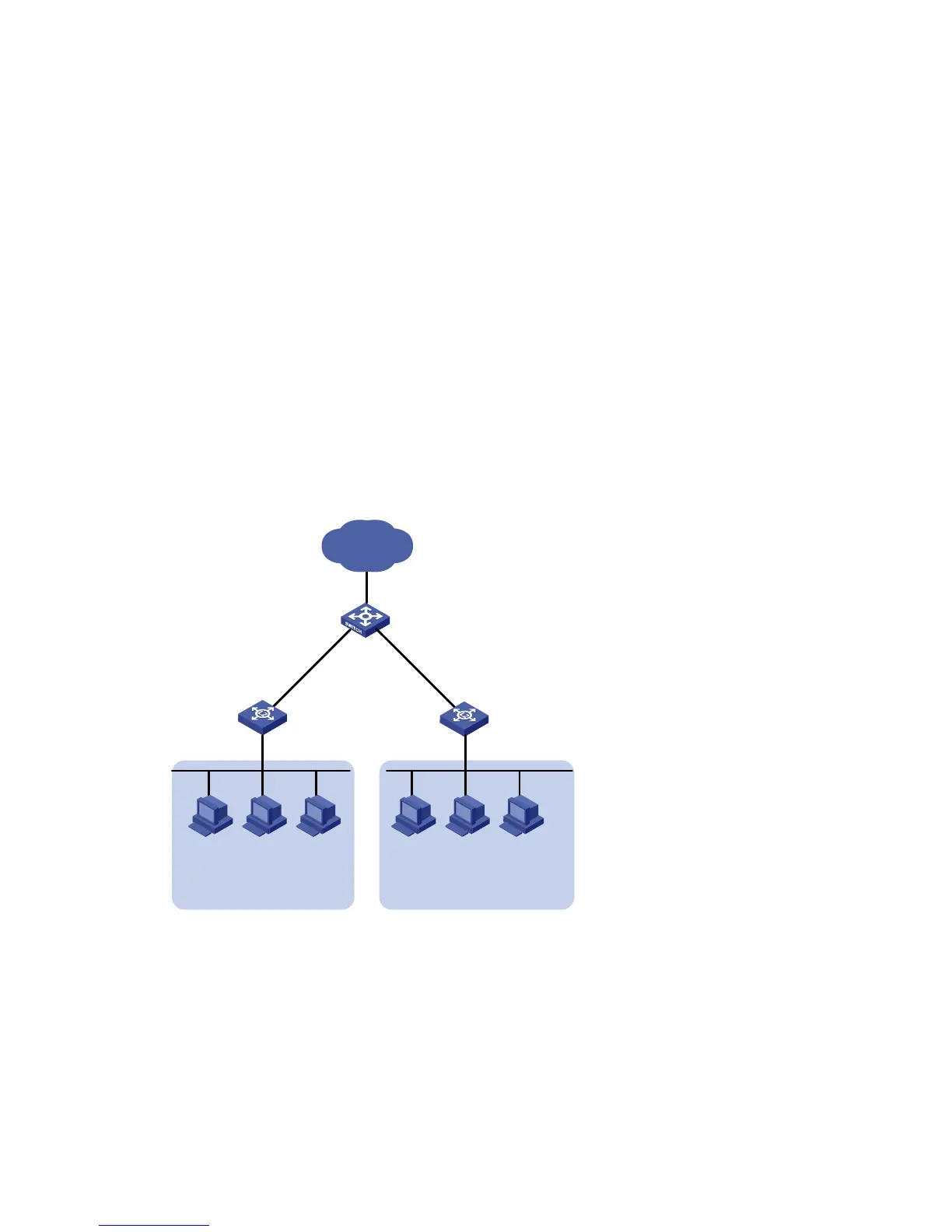

Figure 1-3 Network diagram for combining access management and port isolation
Switch A
Switch B
Eth1/0/1
PC1_1 PC1_2
PC1_20
Internet
202.10.20.1/24～202.10.20.20/24
Switch C
Eth1/0/2
PC2_1 PC2_2
PC2_37
Organization2
Organization1
202.10.20.25/24～202.10.20.50/24
202.10.20.55/24～202.10.20.65/24
Vlan-int1
202.10.20.200/24
Configuration procedure
Perform the following configuration on Switch A.
For information about port isolation and the corresponding configuration, refer to the Port
Isolation Operation.
# Enable access management.
<Sysname> system-view
[Sysname] am enable
