Technical Specifications
Electrical
Standard AC Input:
• 220-250 V Print bed and printer control
• 15 A
• 50 Hz or 60 Hz
• Sold with NEMA L6-15 plug,
see typical outlet diagram below.
An outlet connector enables changing plug type for
worldwide compatibility.
Mechanical
Build Platform: Borosilicate glass, 5 mm thick
XYZ Axes: Lead screw driven SIMO
®
Series linear
actuators from PBC Linear
®
. Screw max values: 640 RPM,
16000 mm/min, 267 mm/sec.
SurePrint™ Servo Motors: Closed loop control provides
positional feedback every 1.25 microns.
• 85% more motor torque equals faster prints
• Closed loop system improves print quality
• Sophisticated control similar to a car's traction
control and anti-lock brake system
Specifications
Printer Type: FFF – Fused Filament Fabrication is a
form of additive manufacturing, commonly used for 3D
modeling, rapid prototyping, and production applications.
Build Area: 1 m x 1 m x 0.5 m
(39.3" x 39.3" x 19.6")
Layer Resolution: Down to 70 microns (0.0027")
Note: Accuracy is dependent upon nozzle size, slice settings, geometry,
print speed, filament quality, and a range of other factors. Under
average conditions, it is typical to achieve layer resolutions of 100
microns with a 0.4 mm nozzle and a well-tuned and calibrated
printer configuration.
Filament Diameter: 3 mm (actual diameter may vary) or
1.75 mm filament. 3 mm diameter is recommended.
Nozzle Diameter: 0.6 mm–other nozzle sizes available
from manufacturer.
Note: See important safety guidelines located in the maintenance
section of this manual before changing nozzles.
Connectivity to Laptop: USB
Physical Dimensions & Weight
Overall Width: 1473.2 mm (58")
Overall Depth: 2286 mm (90")
Overall Height: 1320.8 mm (52")
Approx. System Weight: 540 lbs.
Controls & Firmware
Standard with the 3DP Workbench printer:
• Taurino (AT mega 2560)
• RAMPS 1.4
• Chip Amp Extruder Stepper Drivers
• Consult factory for Marlin Firmware
source code and/or updates
Temperatures
Maximum Nozzle Temperature: 280°C
Maximum Print Bed Temperature: 135°C
Powering down
Turn the power switch on the cart to completely power
down the machine and eliminate the draw of electrical
current.

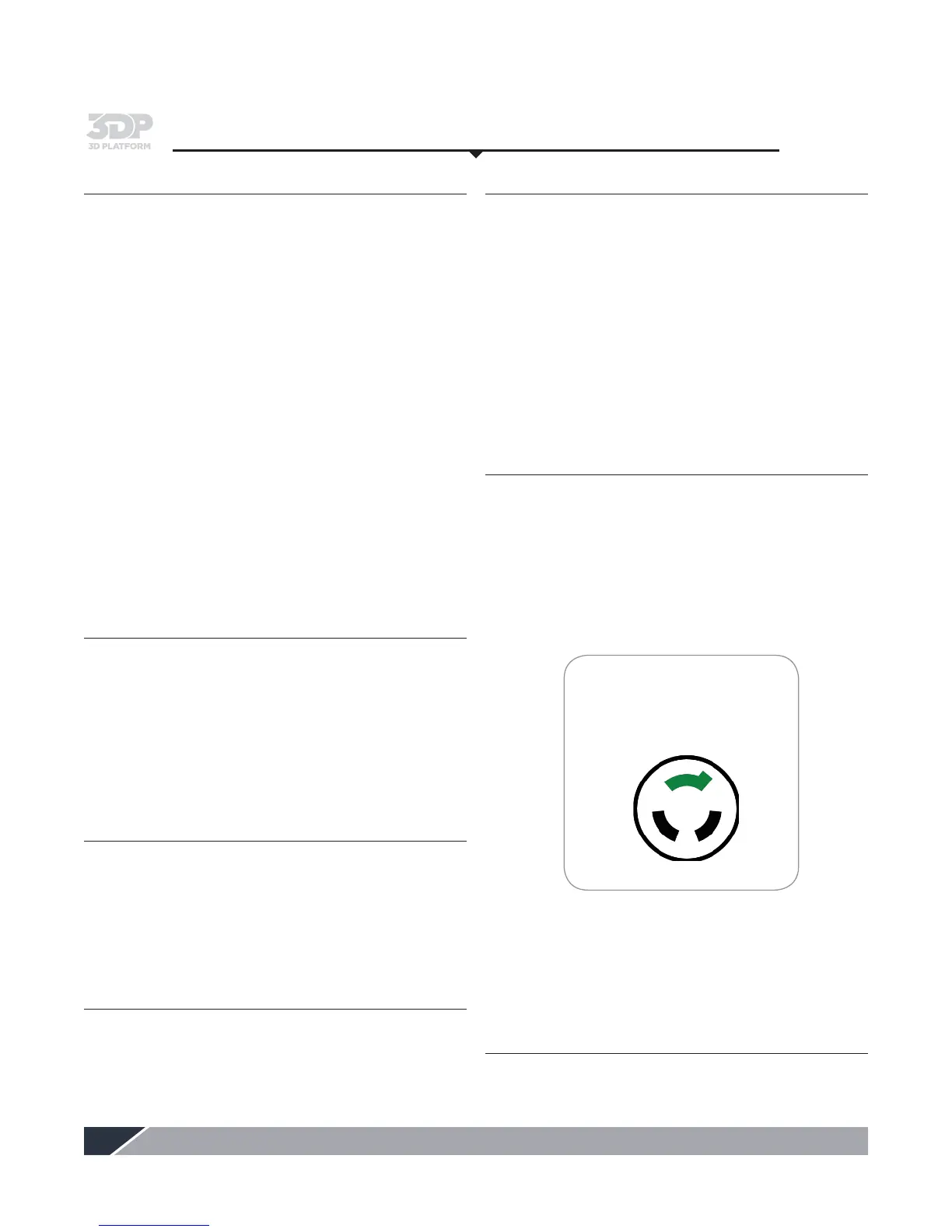

Outlet Diagram (USA)
NEMA L6-15
Main Electrical Panel
The main electrical panel is located in the top, rear
storage drawer of the 3DP Workbench printer. Use
extreme caution. Electrical panel should only be
accessed by an authorized, trained technician.
