3M
™
Advanced Systems Tester 900AST Series
42
Memory
Connect the Red/Black TDR test leads to the circuit
under test. Memory mode is used to compare a
circuit under test to a stored trace in memory.

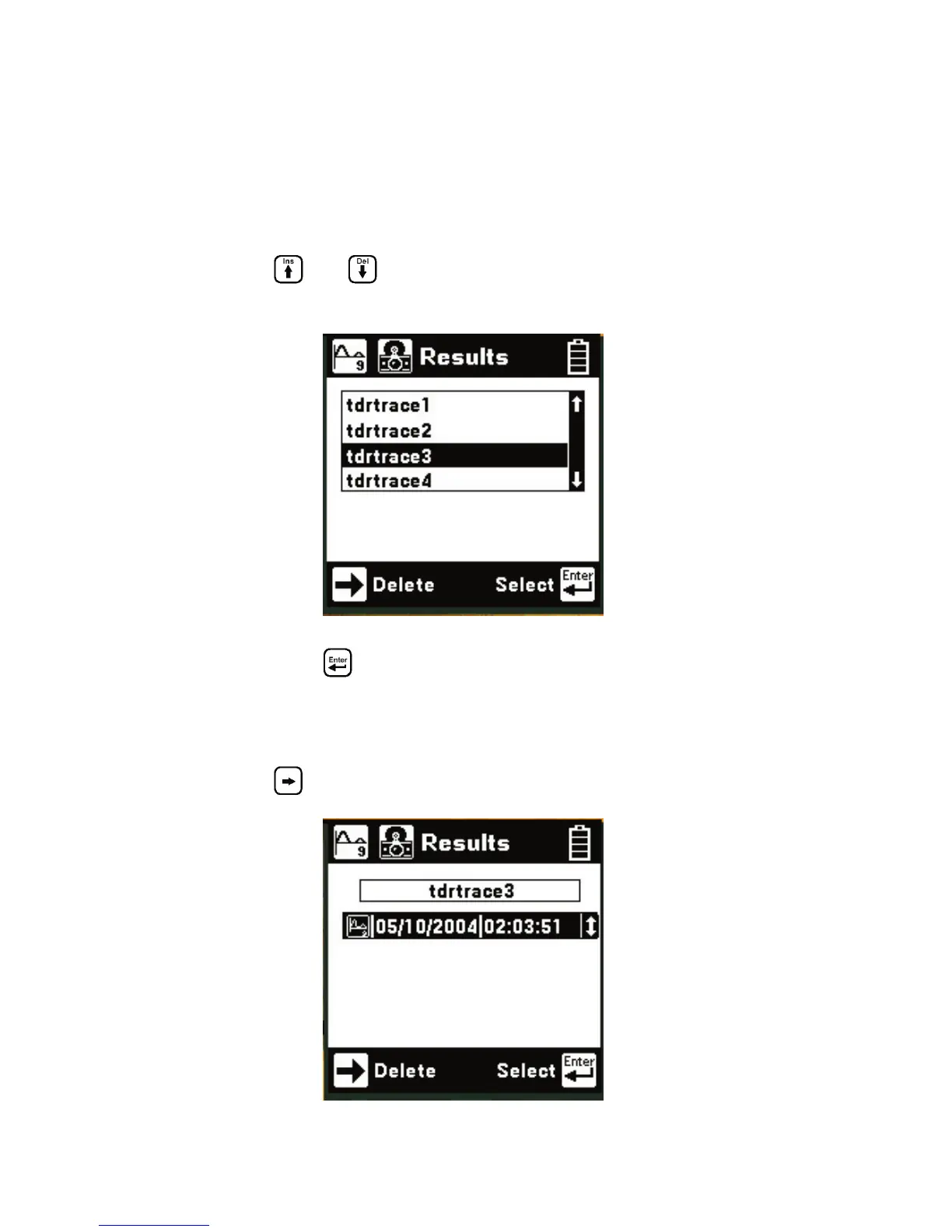

The first screen in memory mode will show a list
of the ID numbers for all stored TDR traces. Use
the and keys to highlight the desired stored
result.
Press the key to select the highlighted result and
display the stored results list for that ID number by
type (TDR), date and time.
You can delete individual stored results by pressing
the key.
