Advanced Systems Tester 900AST Series
5
Front Panel
Screen

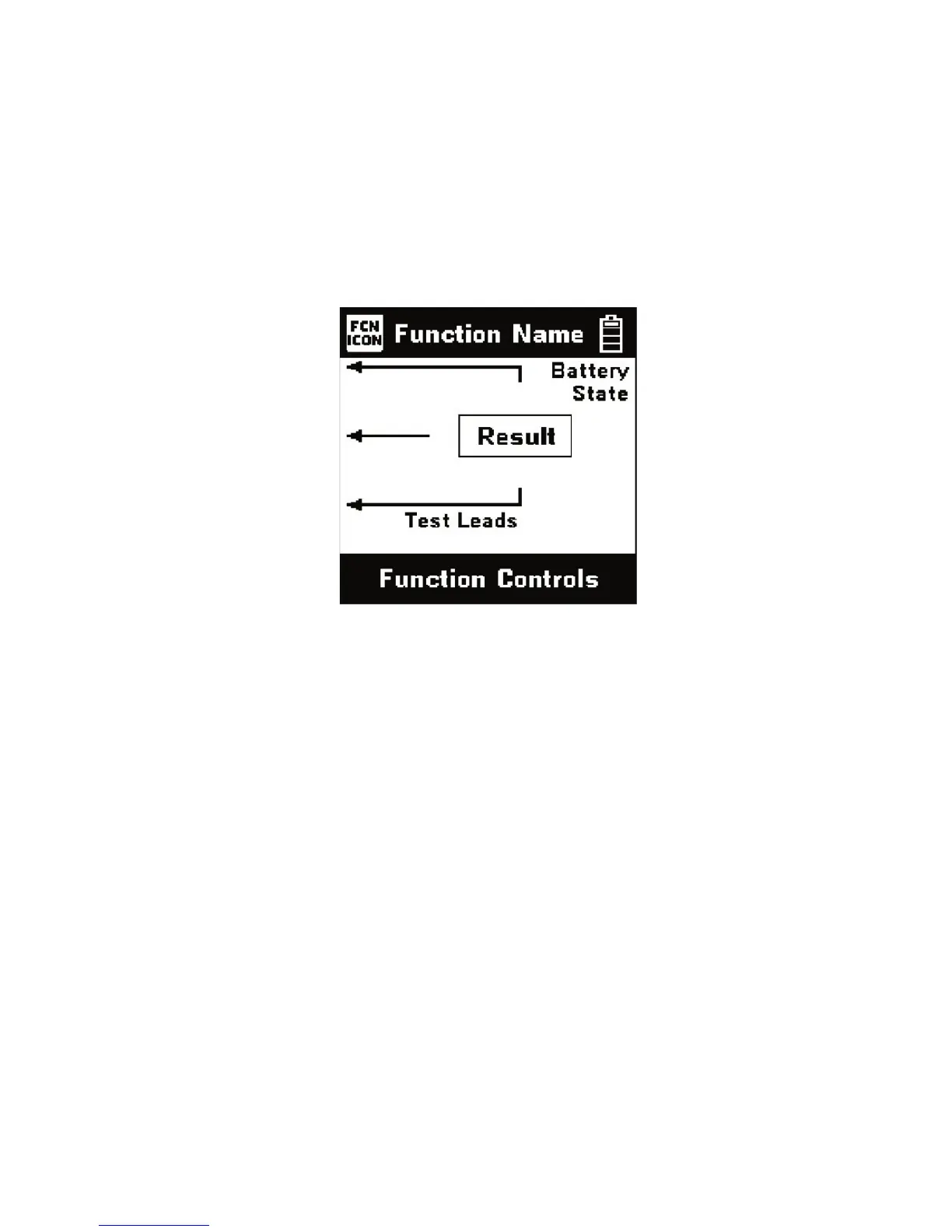

The 900AST tester screen is a high resolution
graphical LCD (Liquid Crystal Display) for viewing
text and graphics. The screen format is similar to the
following for most functions.
Test Leads
The test lead icons are shown on each of the
measurement screens. Each lead points to a color
dot on the front label that corresponds to the
actual test lead and test jack to be used. For TDR
applications using the special coaxial TDR test
lead(s), the test lead icons indicate which test jacks
(also denoted by colors) to use.
