Installation 3M™ Digital Projector
Adjusting the Projected Image
Adjusting the Projector Image Height
The projector is equipped with elevator feet for adjusting
the image height.
To raise the image:
1. Press the elevator buttons
n.
2. Raise the image to the desired height angle
o, then re-
lease the button to lock the elevator feet into position.
3. Use screw in feet
pWR¿QHWXQHWKHGLVSOD\DQJOH
To lower the image:
1. Press the elevator buttons.
2. Lower the image, then release the button to lock the
elevator feet into position.
3. Use screw in foot
pWR¿QHWXQHWKHGLVSOD\DQJOH

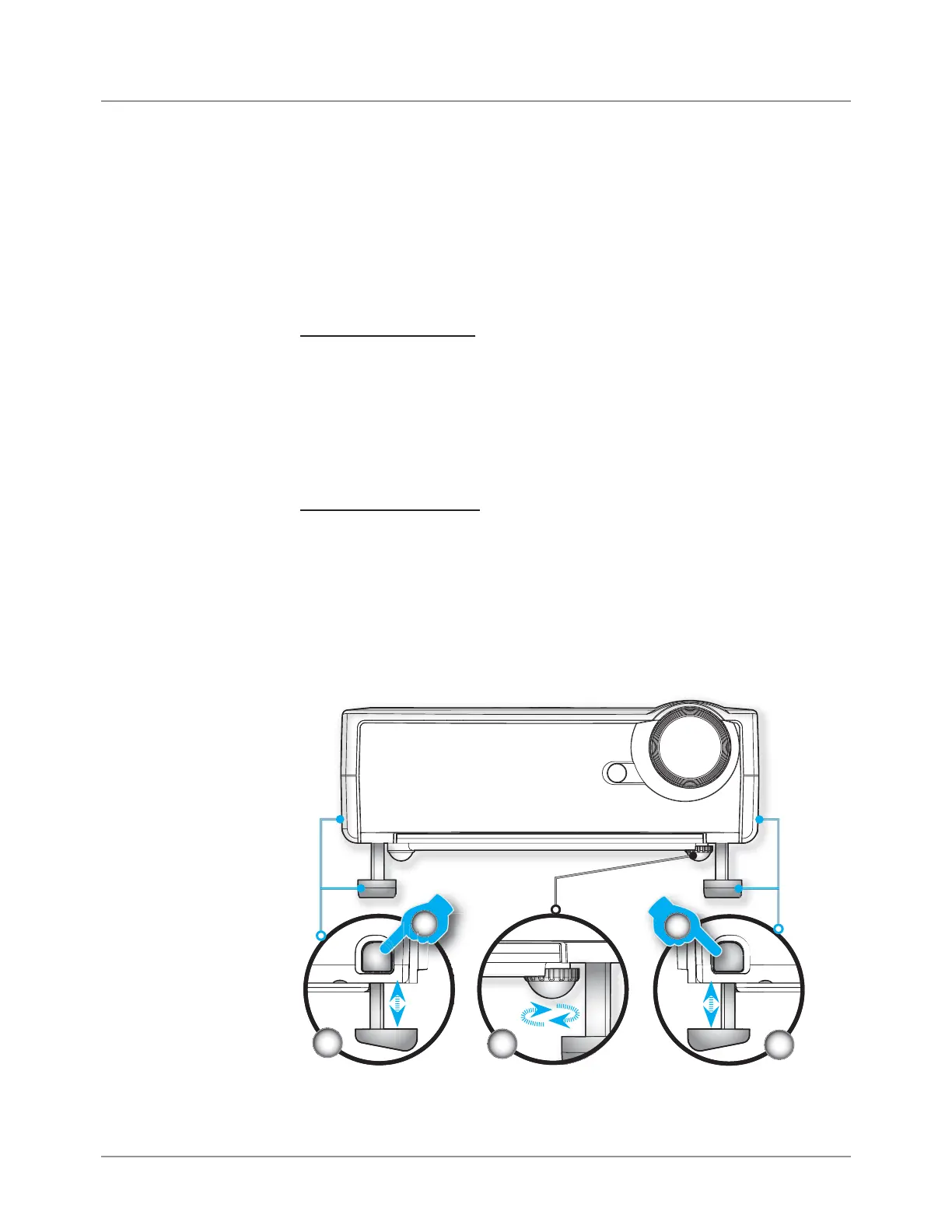

Elevator Feet
Tilt Adjusting Foot
Elevator Feet
1
1
Elevator Buttons
2
3
2
