3M PELTOR ComTac VI - ARC Helmet Attachment to Headband Conversion; Detaching Right Earcup Arm Guide; Detaching Boom Microphone Connector

13

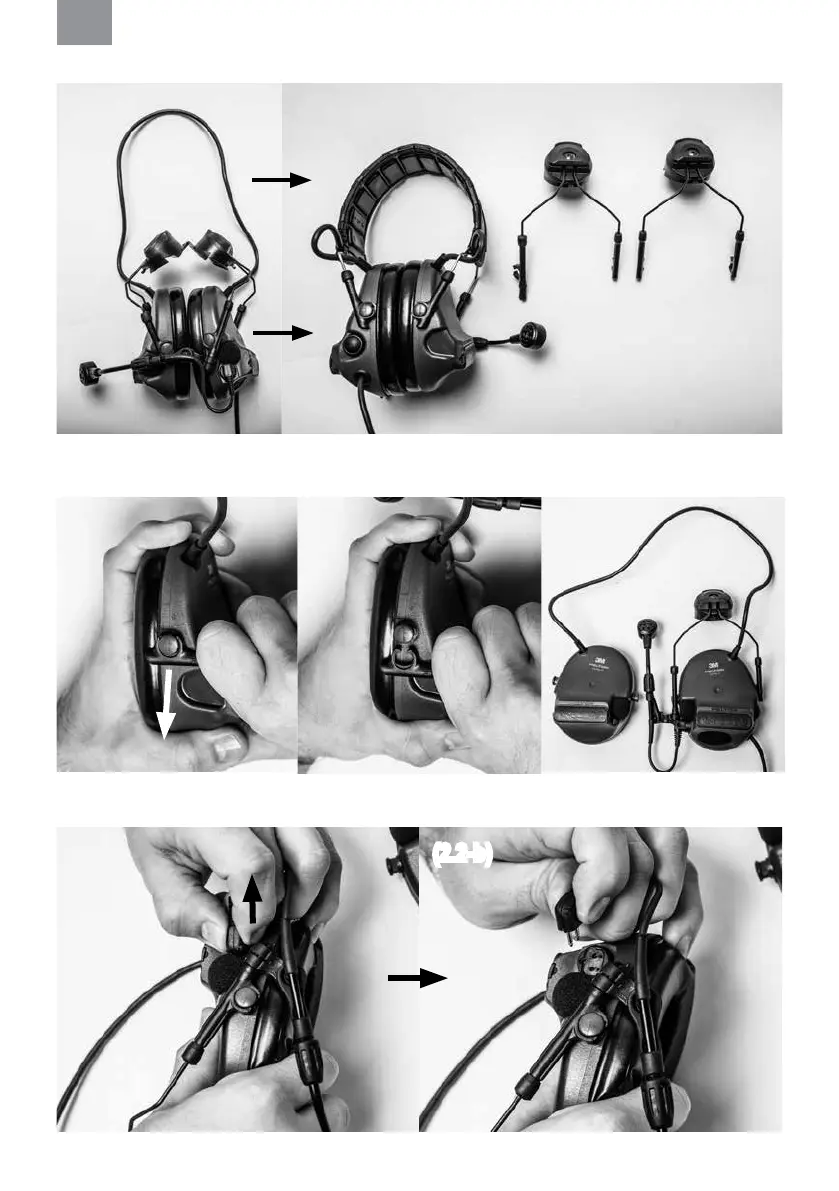

2. ARC Helmet Attachment/Headband Conversion Instructions
(2-a) (2-b)
2.1 Rotate the right earcup (the one without the boom microphone) and detach the earcup arm guide as shown in gure 2.1-a and
2.1-b. Mild force is required. Repeat step 2.1 for the other guide, and the helmet attachment will be removed. At this stage the earcup
should look like in gure 2.1-c.
(2.1-c)
(2.1-a) (2.1-b)
2.2 Detach the boom microphone connector from the connector jack on the left cup as shown in gure 2.2-a and 2.2-b.
(2.2-a)
(2.2-b)
EN
