3M Workstation Monitor 724 User Manual

15
c) Plug the AC adapter into
a 3-prong grounded outlet
(North American System).
Outside North America use
appropriate AC adapter (see
specifications Section 11). The
3M
™
Workstation Monitor
724 is ready for use.
SECTION 6
Wrist Strap Connection
a) Attach a 3M
™
Dual Conductor
Ground Cord to a 3M
™
Dual
Conductor Wrist Band. Plug the cord
into either of the two jacks on the
3M
™
Dual Conductor Remote Input
Jack 732 (Figure 13). Plugging into
a jack activates the monitor for that
input.
b) The high wrist strap red lamp
(H) should illuminate and the
corresponding audible alarm for
the input (1 or 2) should sound
indicating proper functioning of
the monitor.
c) Slip the wrist band on your wrist.
The alarm should quiet and the
wrist strap high red lamp (H)
should slowly extinguish. The
corresponding OK wrist strap green
lamp (1 or 2) should illuminate.

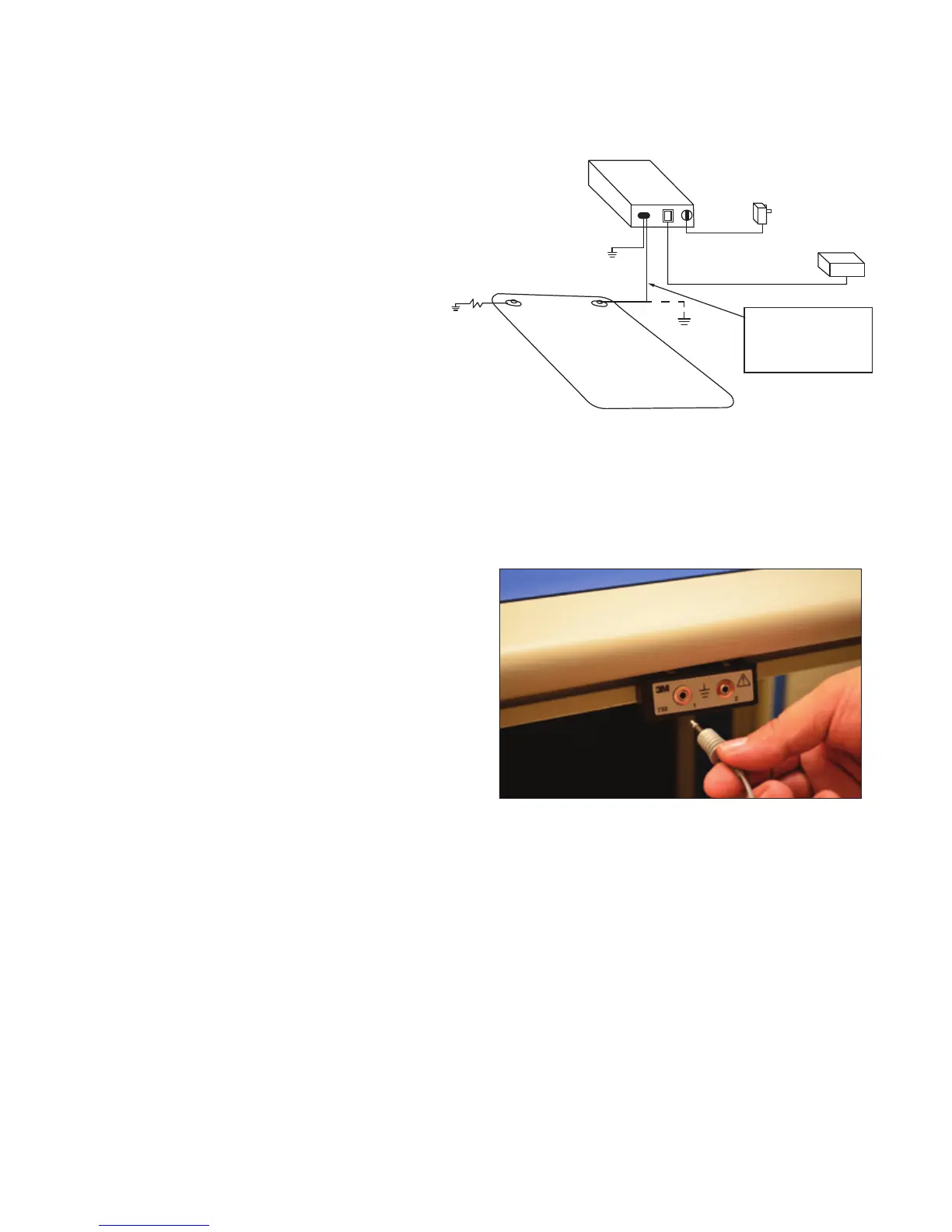

Figure 13 – Connecting wrist snap ground cord to
3M
™
Dual Conductor Remote Input Jack 732.
Figure 12 – 3M
™
Workstation Monitor 724 wire
connection diagram for single work station.
When not using work
station monitoring
feature, connect
work surface wire
to ground.
Conductive
Work Surface
3M
™
Workstation Monitor 724
3M
™
Workstation
Monitor Remote 724
Rear
AC Adapter
Ground
Ground
Ground
