Page 107

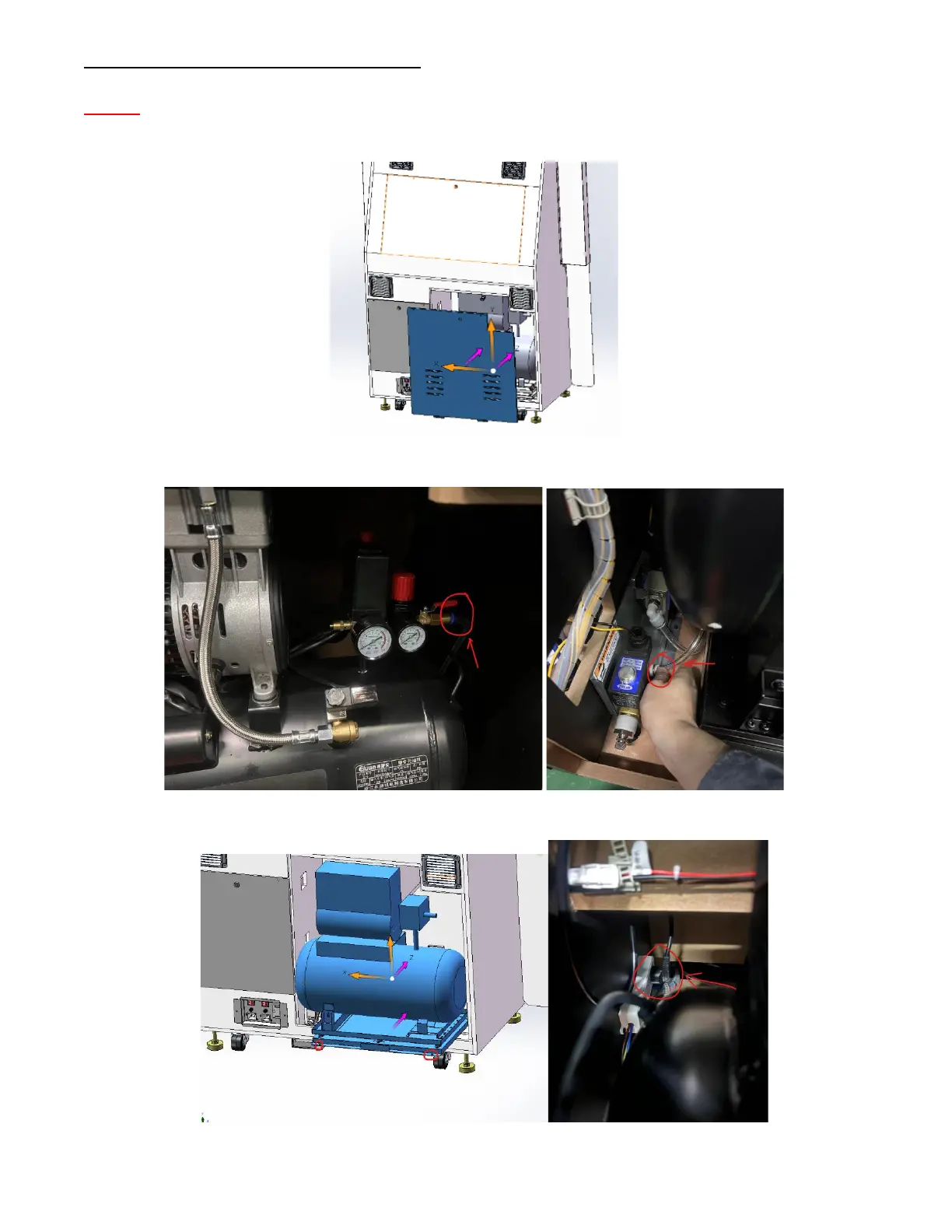

6.2.3 Replacement of Air Compressor
NOTE: Please ensure the tank is discharged before removal. Please disconnect all air pipes and
power cable before operation.
Step 1: Remove the air compressor door screw and open the door with the key.
Step 2: After the air compressor has drained all the water, remove the air pipes from the air outlet
and drainage outlet.
Step 3: Remove the screws from the air compressor components and carefully pull out the air
compressor, then disconnect the electrical plug of the air compressor.
