3MINDWAVE APEX REBELS MOTION - Install Direction; Installation of Cabinet

Page 23

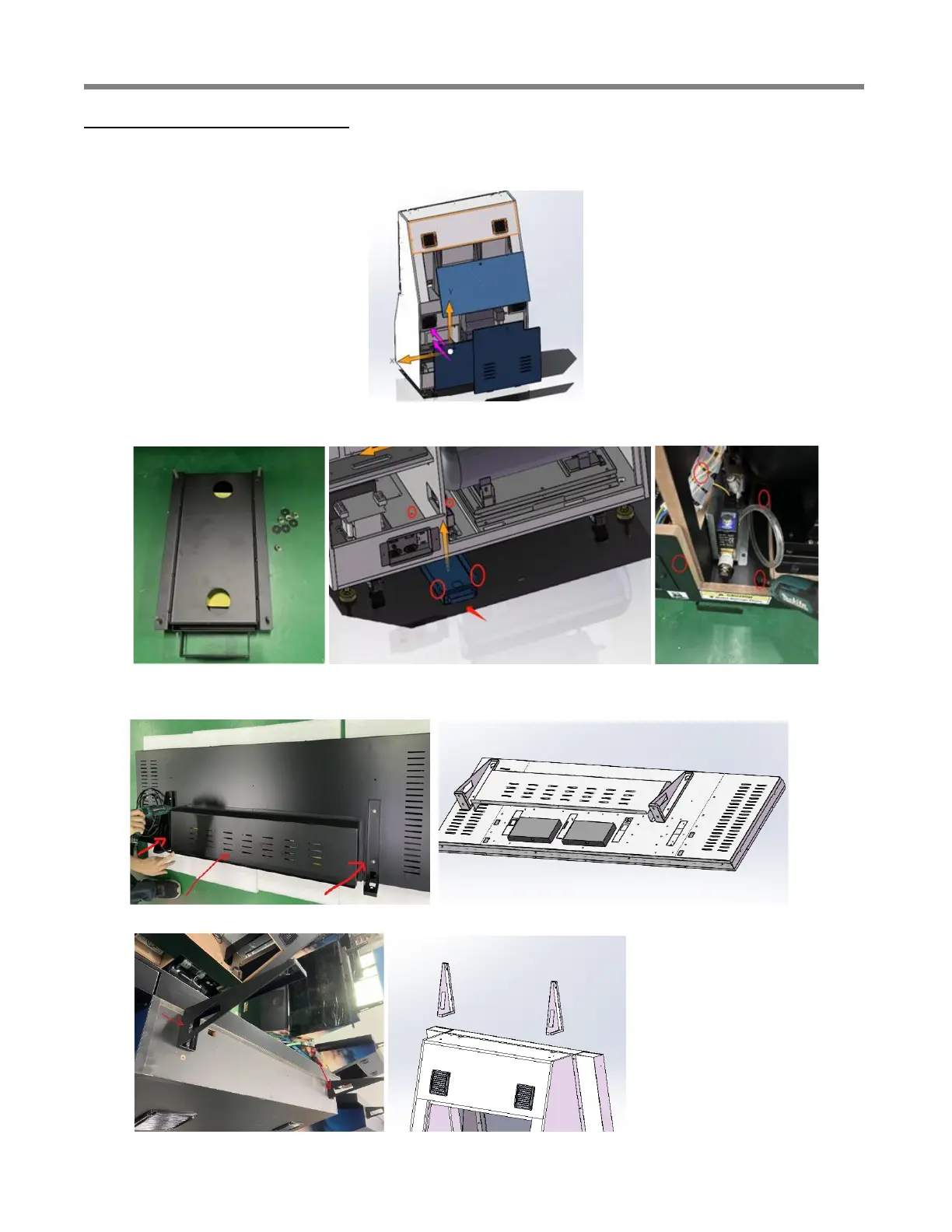

2.6 Install Direction
2.6.1 – Installation of Cabinet
Step 1. Remove the compressor door/PC door & monitor door from the monitor cabinet.
Step 2. Assemble the water storage box onto the monitor frame (4 nuts).
Step 3. Remove the LED PANEL ASSY back cover & bracket.
Step 4. Fix the bracket to the top of monitor frame (4 screws).
