• Place the machine on the flat and slip resistant area.

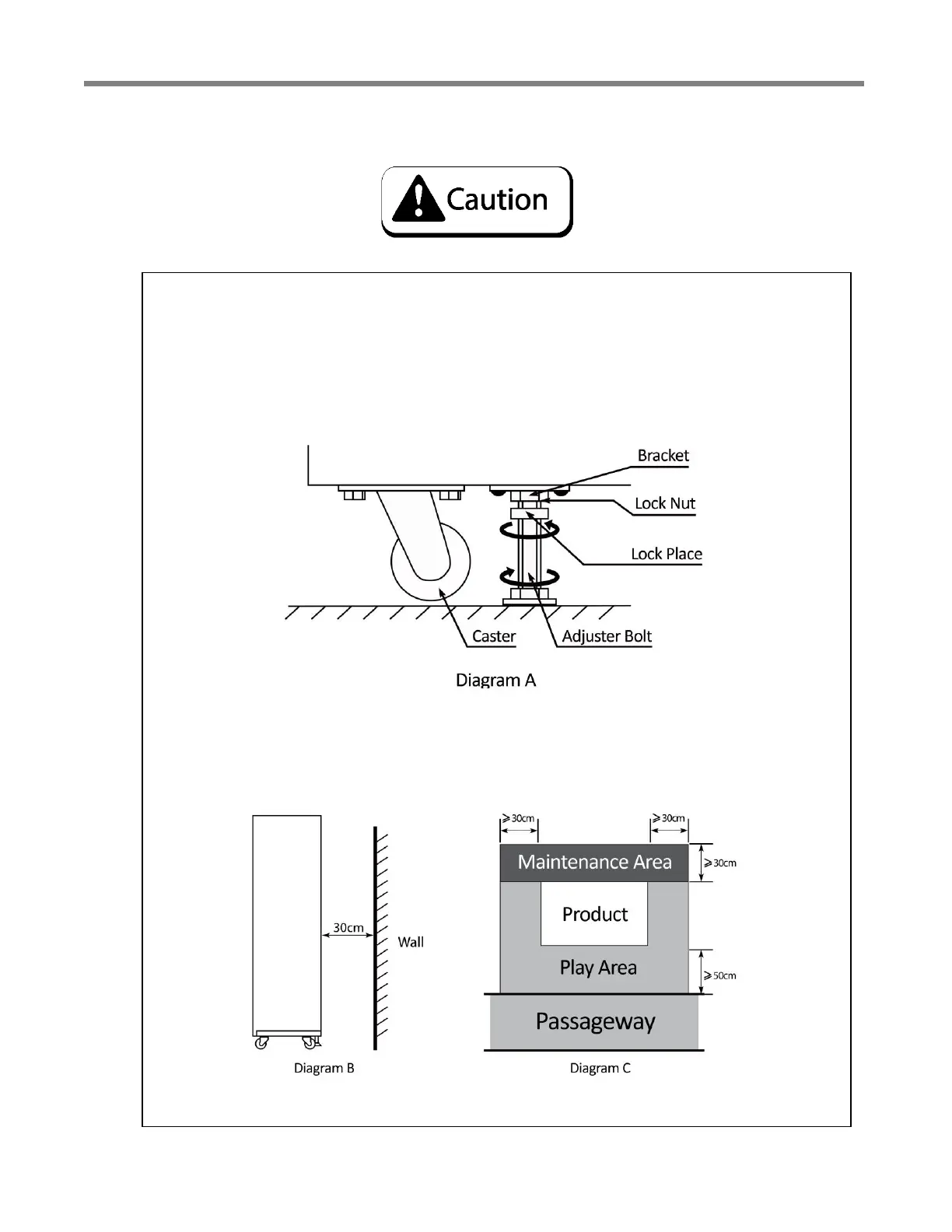

• Use the adjusters to fix the machine (See Diagram A).
▪ (1) Loosen the nuts for the adjusters(clockwise), tighten the
bolts with a wrench (clockwise).
▪ (2) Tighten the nut firmly (counter-clockwise) and fix it well.
• Provide a space of minimum 30cm between the rear of the machine
and the wall for good ventilation and heat emission (see Diagram B
and C).
