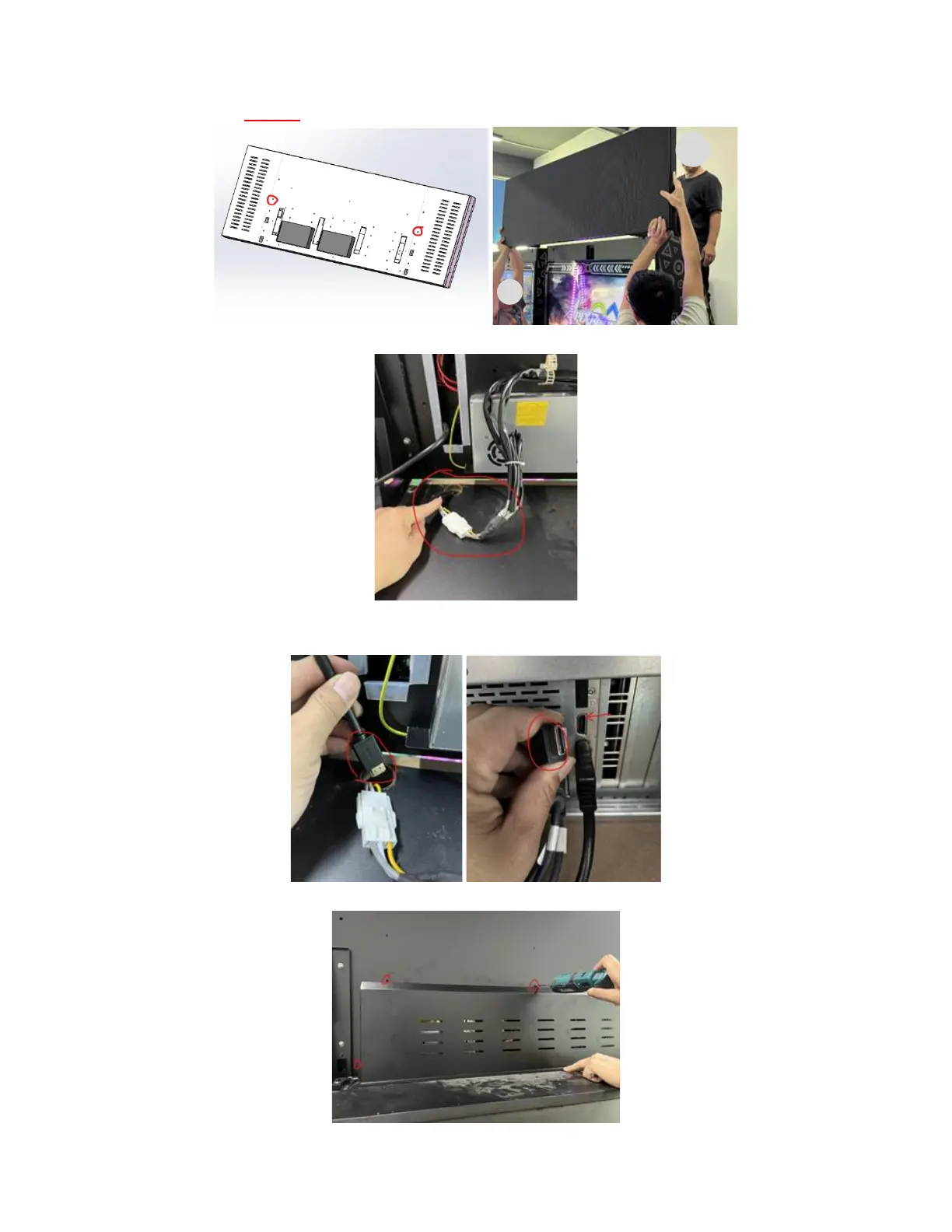

Step 5. Insert two screws into the top holes on the LCD panel (2-3 turns) and hang the LED PANEL onto
the bracket. Insert and tighten the bottom two screws through the bracket and into the LED panel and
tighten all 4 screws. (NOTE: Minimum of 3 people to complete this step)
Step 6. Connect the power cable from the LED panel to the receptacle inside the back of the game.
Step 7. Connect the HDMI cable between the PC (Lower left rear door of the cabinet and the LED
panel).
Step 8. Fix the back cover to the LED PANEL ASSY.
