6.7.1.2. Bridged
For bridged mode (1x200W), four jumpers must be set to the “50V” position (left & right position). Two
jumpers per channel.

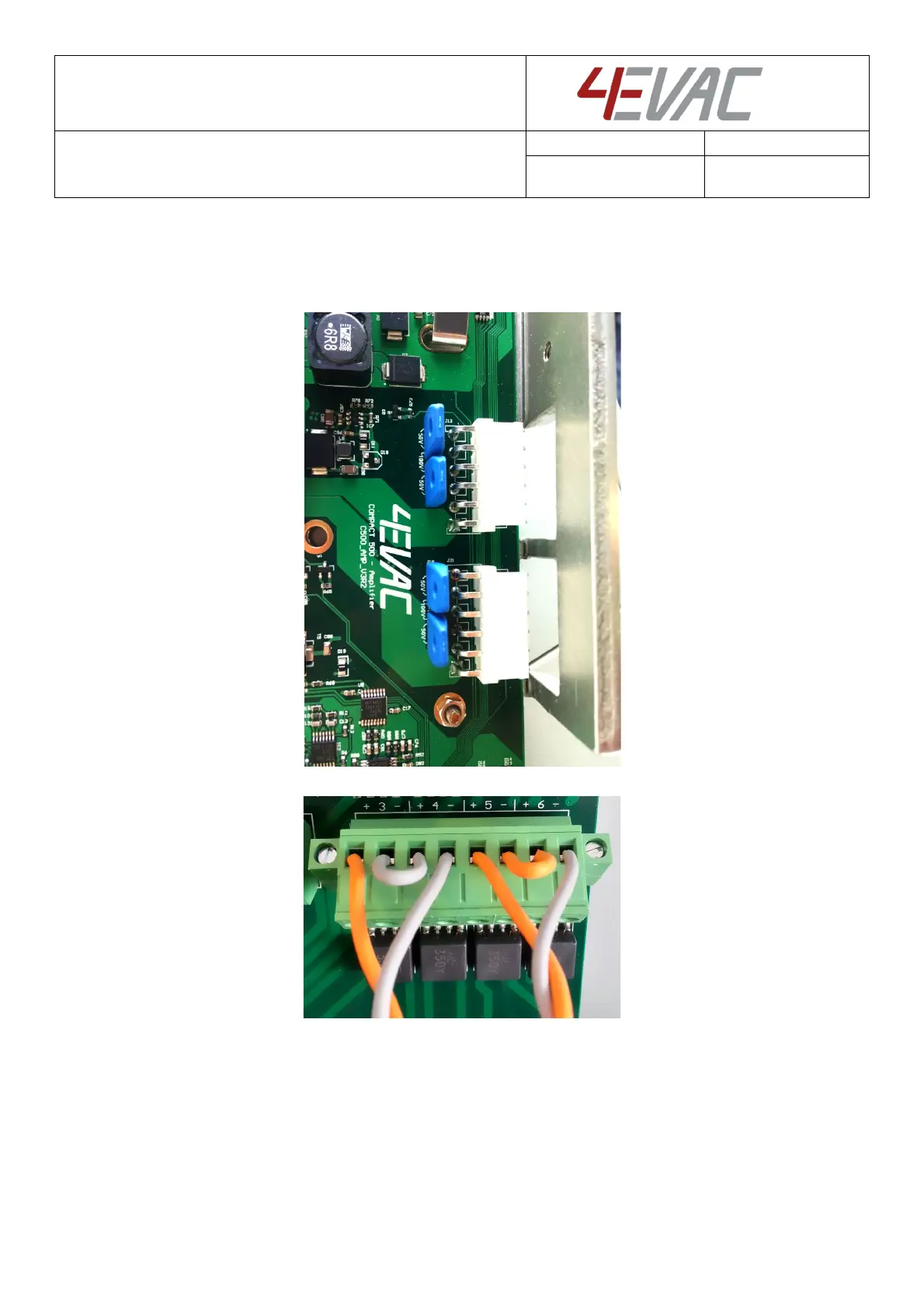

Jumper setting 50V per channel – amplifier unit
Bridged lines: 3+4, 5+6 – loudspeaker line output
