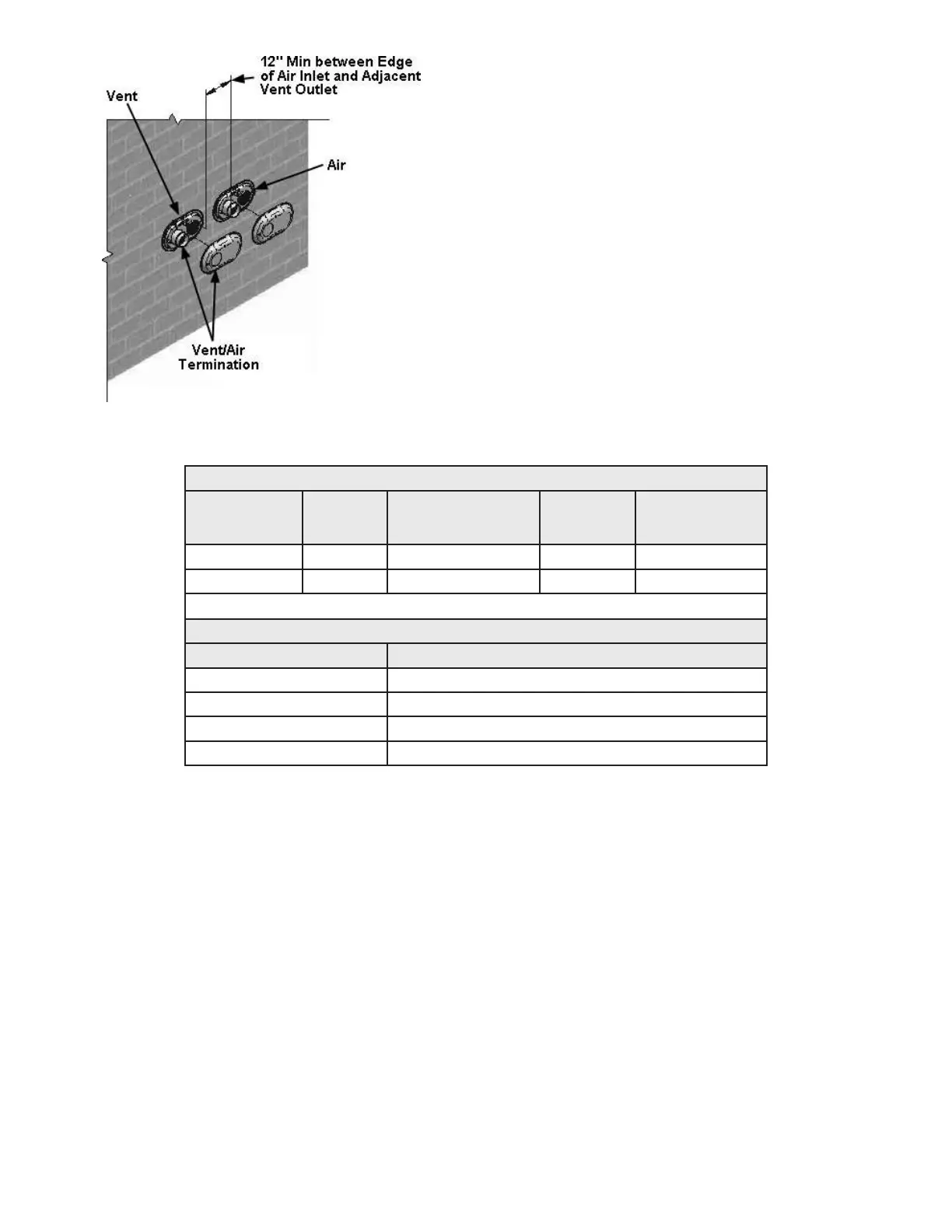

Figure 29. Multiple Low Profile Vent Clearances
Table 12. Low Prole Termination Kits - Dimensions
AOS Kit Number
IPEX
Part Num-
ber Description
Pipe Outside
Diameter
Hole Spacing
(Center to Center)
100086241 196984 2” Flush Mount Vent Kitt 2.375” 5.63”
100187887 196985 3″ Flush Mount Vent Kit 3.5″ 7.63"
Each Kit Contains
Qty Item Description
1 Base (two holes)
1 Cap (one hole)
8 Stainless Steel Screws
4 Plastic Anchors
