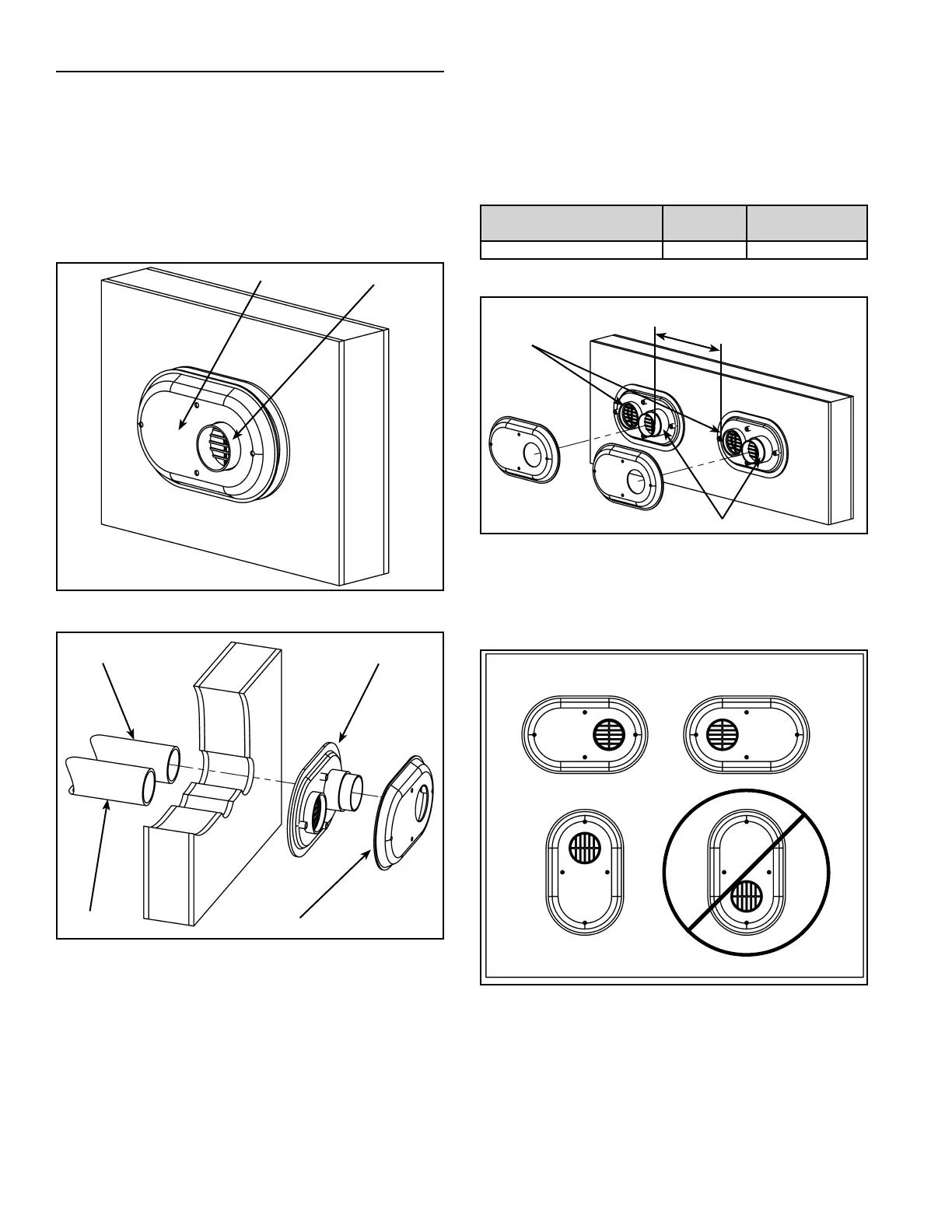

LOW PROFILE SIDE WALL VENT TERMINATION
The Low Profile termination is certified to be used on all
PDV model series 300/301 and 310/311 water heaters.
These instructions are to be followed in conjunction
with the installation guide provided with the System 636
components or at www.ipexna.com/resources/technical-
library. All termination kits must be located and installed
in accordance with local building codes and the current
edition of the “National Fuel Gas Code”, ANSI Z223.1/
NFPA 54.
LOW PROFILE
TERMINATION
EXHAUST
Figure 28.
EXHAUST
PIPING
INTAKE
PIPING
VENT
BASE
VENT
CAP
Figure 29.
Installation Procedure
1. Once the proper location has been determined, cut
2 holes in the wall large enough to accommodate
the pipe. Pipe diameters and distance between hole
centers can be found in Table 2.
2. Slide both the intake and exhaust pipes through the
holes. Solvent cement both pipes to the base of the
vent termination kit, follow the solvent cementing
procedures outlined in the System 636 Installation
Guide.
3. To fasten the Base to the wall, use the supplied screws
and anchors. A 5mm (3/16”) hole, 30mm (1-3/16”)
deep, will need to be drilled for the anchors. Locate
the anchor hole using the base as a template.
4. Screw the Cap to the Base using the supplied screws.
5. Once the vent termination and pipes are secured,
the wall penetrations will need to be sealed from the
interior using a PVC-compatible sealant material.
Description Pipe O.D.
Hole Spacing
(ctr to ctr)
3” Flush Mount Vent Kit 3.5” 5.6”
Table 2.
EXHAUST
INTAKE
12” MIN. BETWEEN EDGE OF THE EXHAUST
OUTLET AND ADJACENT AIR INTAKE
Figure 30.
Figure 31 illustrates the possible orientations of the Low
Profile termination. Note that only three of the orientations
are allowed.
Figure 31.
