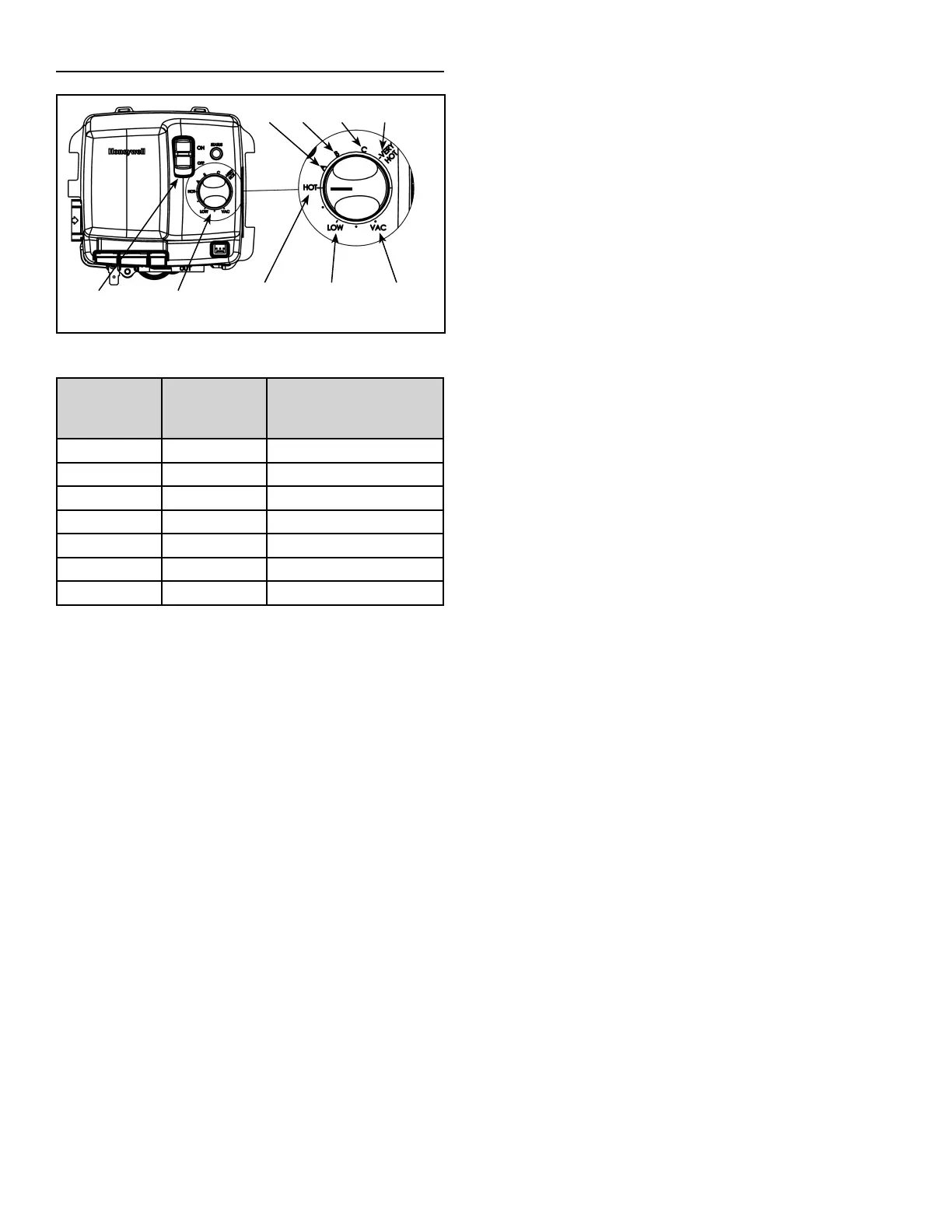

GAS CONTROL VALVE/THERMOSTAT
ON/OFF
SWITCH
TEMPERATURE
SETTING DIAL
181°F
70°F
140°F 155°F 165°F
130°F 110°F
Figure 46.
Temperature
Dial Setting
Approximate
Temperature
°F
Time to induce a 2nd
and 3rd Degree burn
to adult skin
VERY HOT 181 Less than 1 second
C 165 Less than 1 second
B 155 About 1.5 seconds
A 140 Less than 5 seconds
HOT 130 More than 30 seconds
LOW 110 Normal shower temp
VAC 70 N/A
Table 8.
Note: The temperatures indicated are approximate. The
actual temperature of the heated water may vary.
The Vacation Setting (VAC) sets the controller at
approximately 70°F . This setting is recommended when
the water heater is not in use for a long period of time. This
effectively turns the controller temperature setting down to
a temperature that prevents the water in the water heater
from freezing while still conserving energy.
