A.O. Smith BTH 150 - Parts Lists; Series

A. O. Smith Water Products Company Service Handbook
Irving, Texas 2000© Training Department
53
CYCLONE XHE
®
MODEL

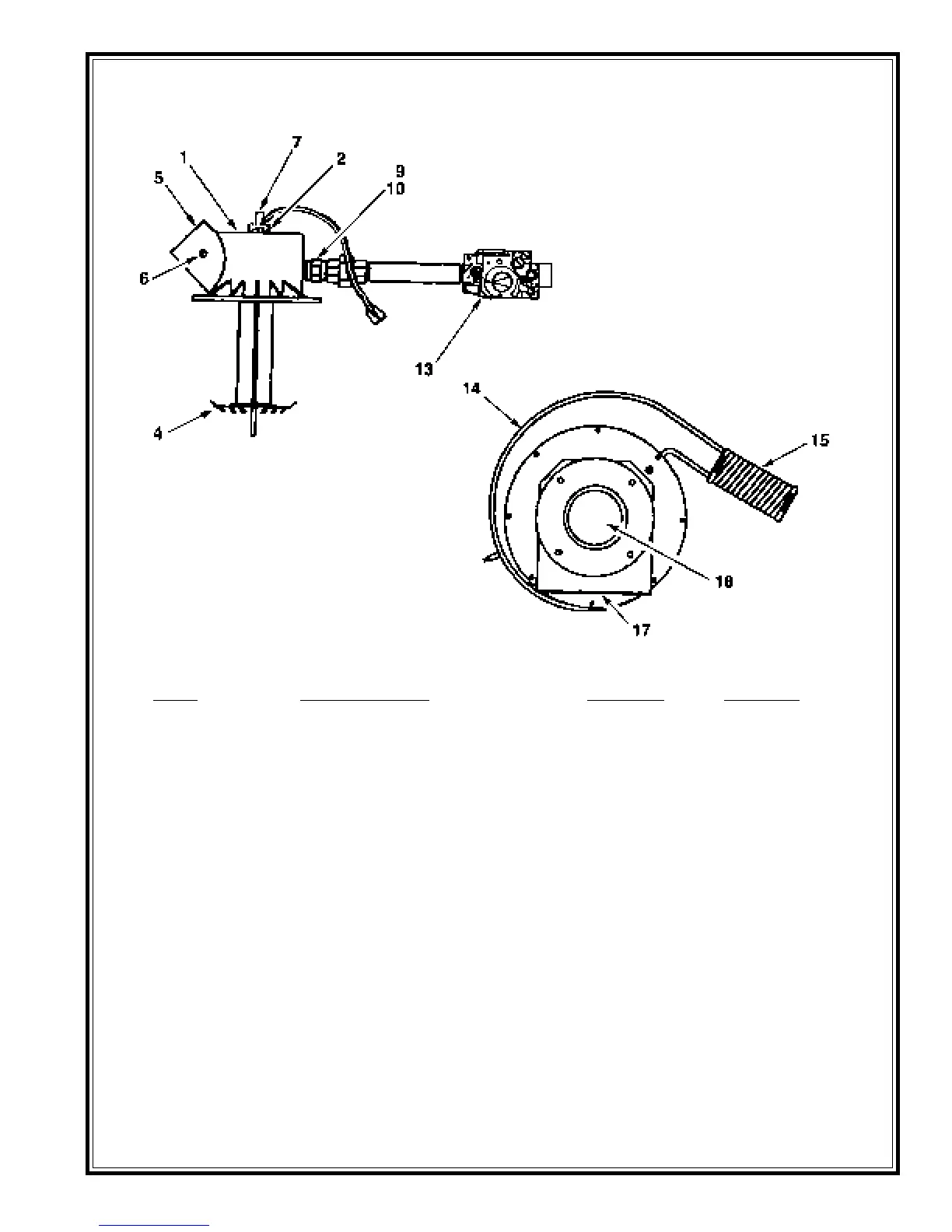

BTH-150 & BTH-199 BURNER & BLOWER PARTS LIST
SERIES 960
ITEM DESCRIPTION BTH-150 BTH-199
1 ..................... Burner ........................................ 192416-000 .....192416-000
2 ..................... Igniter Assembly........................ 192638-000 .....192638-000
4 ..................... Air Deflector ............................... 192414-000 .....192414-000
5 ..................... Air Restrictor.............................. 192450-001 .....192450-001
6 ..................... Barb, Hose, 3/16" ...................... 192800-000 .....192800-000
7 ..................... Flame Rod Assembly ................ 192478-000 .....192478-000
9 ..................... Orifice ......................................... 192477-001 .....192477-000
10 ................... Orifice Holder. ............................ 192447-000 .....192447-000
13 ................... Valve, Gas .................................. 192797-000 .....192797-000
14 ................... Blower ........................................ 192468-000 .....192468-000
15 ................... Tube, Air ..................................... 192469-000 .....192469-000
17 ................... Bracket, Blower Mounting ........ 192482-000 .....192482-000
18 ................... Flange Inlet ................................ 192641-000 .....192641-000
