ITEM DESCRIPTION BTH-250
1 ..................... Burner ........................................ 192416-000
2 ..................... Igniter Assembly........................ 192638-000
3 ..................... Rivet, Blind, 1/8" Dia 316 SS ..... 192730-000
4 ..................... Air Deflector ............................... 192414-000
5 ..................... Air Restrictor.............................. 192450-002
6 ..................... Barb, Hose, 3/16" ...................... 192800-000
7 ..................... Flame Rod Assembly ................ 192478-000
9 ..................... Orifice ......................................... 192477-002
10 ................... Orifice Holder. ............................ 192447-000
13 ................... Valve, Gas .................................. 192454-000
14 ................... Blower ........................................ 193203-000
15 ................... Tube, Air ..................................... 192469-010
17 ................... Bracket, Blower Mounting ........ 192482-000
18 ................... Flange Assembly, Inlet .............. 192886-000
19 ................... Low Gas Presure Switch. ......... 191149-001
Parts numbers underlined are recommended stock items
for emergency replacement.
CYCLONE XHE
®
MODELS

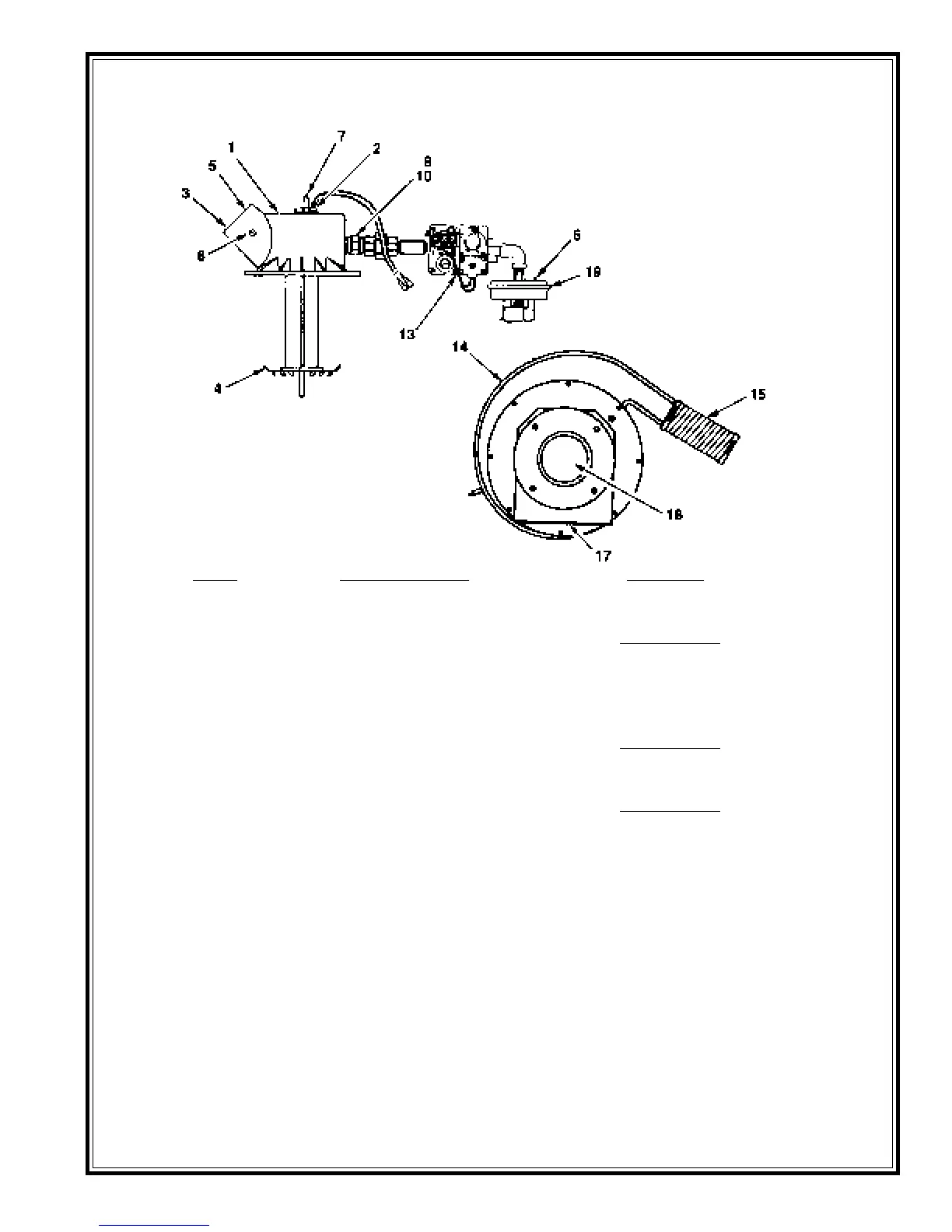

BTH-250 BURNER & BLOWER PARTS LIST - SERIES 962
