A. O. Smith Water Products Company Service Handbook
Irving, Texas 2000© Training Department
60
CYCLONE XHE
®
MODELS

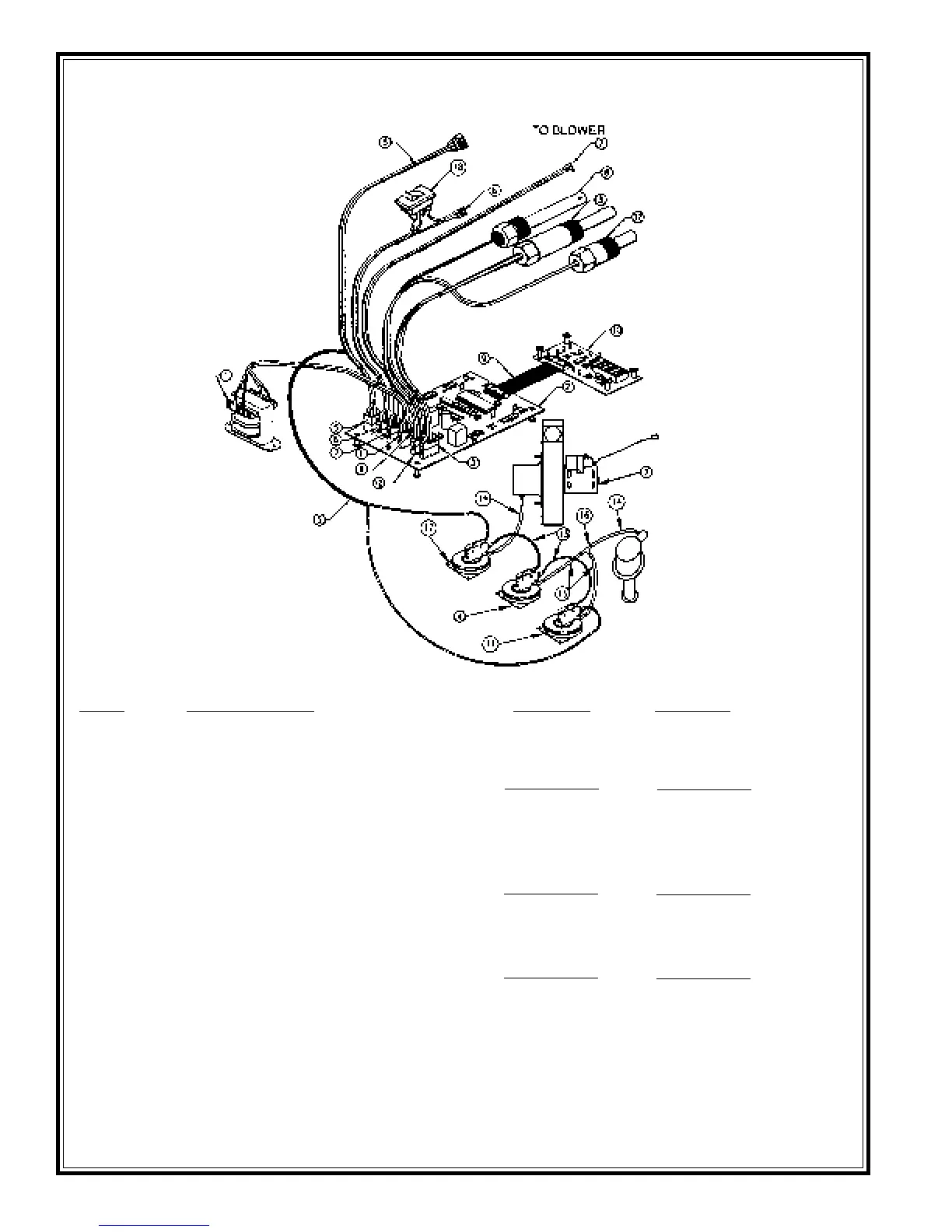

BTH-150 & BTH-199 CONTROLS PARTS LIST - SERIES 962
ITEM DESCRIPTION BTH-150 BTH-199
1 .............. Transformer ...................................... 192608-000 ........ 192608-000
2 .............. Control Board ................................... 192624-000 ........ 192624-000
3 .............. E.C.O./Temperture Probe ................. 192606-000 ........ 192606-000
4 .............. Blower Proving Air Switch .............. 193221-000 ........ 193221-000
5 .............. Low Voltage Cable Assembly.......... 192605-000 ........ 192605-000
6 .............. Line Voltage Cable Assembly.......... 192607-000 ........ 192607-000
7 .............. Blower Assembly ............................. 192468-000 ........ 192468-000
8 .............. Igniter Assembly............................... 192638-000 ........ 192638-000
9 .............. Cable to Control Display Board ...... 192623-000 ........ 192623-000
10 .............. Board, Display Panel........................ 192622-000 ........ 192622-000
11 .............. Blocked Flue Proving Switch. ......... 192878-000 ........ 192878-000
12 .............. Temperature Probe, Lower . ............ 192609-000 ........ 192609-000
13 .............. Wire Assembly, Air Flow Switch ...... 192802-000 ........ 192802-000
14 .............. Tubing, Pressure .............................. 192024-014 ........ 192024-014
15 .............. Tubing, Pressure .............................. 192024-004 ........ 192024-004
16 .............. Connector, Tube ............................... 192152-000 ........ 192152-000
17 .............. Blocked Inlet Proving Switch. ......... 192882-000 ........ 192882-000
18 .............. Switch-On/Off.................................... 192699-000 ........ 192699-000
Parts numbers underlined are recommended stock items for
emergency replacement.
