Servicing should only be performed by a Qualied Service Technician
STEP 2: TEST FOR 24VAC BETWEEN BLACK AND ORANGE ON DAMPER PC
BOARD
IF THEN
24VAC is present - damper NOT opening • Check Service Switch Position. Replace Damper
Assembly.
24VAC is not present. • Check Wiring Harness to Thermostat.
24VAC present - Damper Opens • Continue to Step 3.
CONDITION:
• Damper rotates continuously.
STEP 3: TEST THE THREE AMP FUSE
CONDITION:

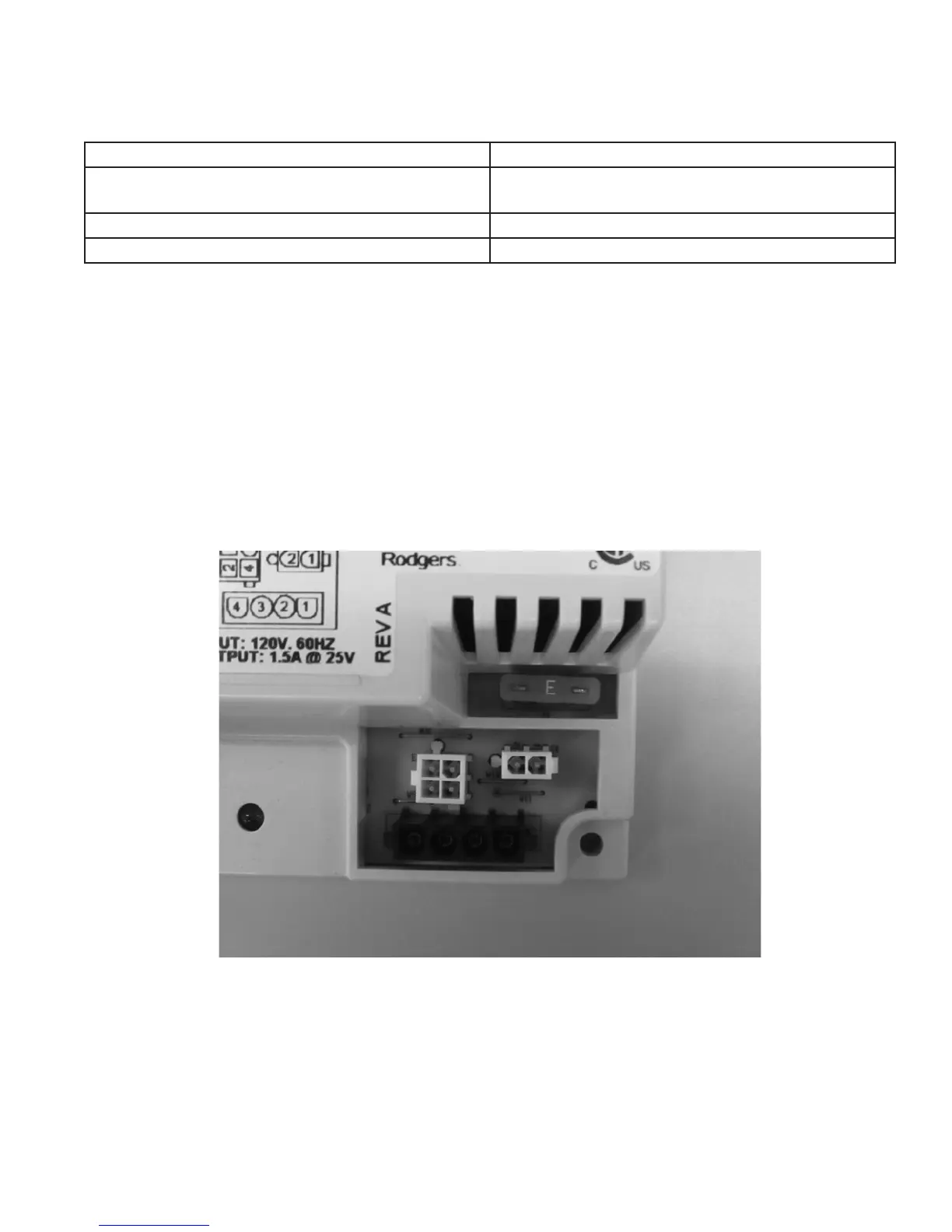

• Test via the terminals on the head of the fuse or by removing the fuse and testing across the blades.
• Verify that there is 120 VAC to the thermostat. Once veried set the meter to check for continuity and
perform the checks shown in gure below and on next page.
To Next Page
