8. Resistance values of the temperature thermistors
The 110 Indoor and 110 Outdoor use the same thermistors.
ºF 32 41 50 59 68 77 86 95 104 113
ºC 0 5 10 15 20 25 30 35 40 45
Resistance kΩ 23.76 19.08 15.43 12.56 10.28 8.47 7.02 5.85 4.90 4.12
Temperature ºF 122 131 140 149 158 167 176 185 194 203 212
ºC 50 55 60 65 70 75 80 85 90 95 100
Resistance kΩ 3.49 2.96 2.53 2.16 1.86 1.60 1.39 1.21 1.05 0.92 0.81

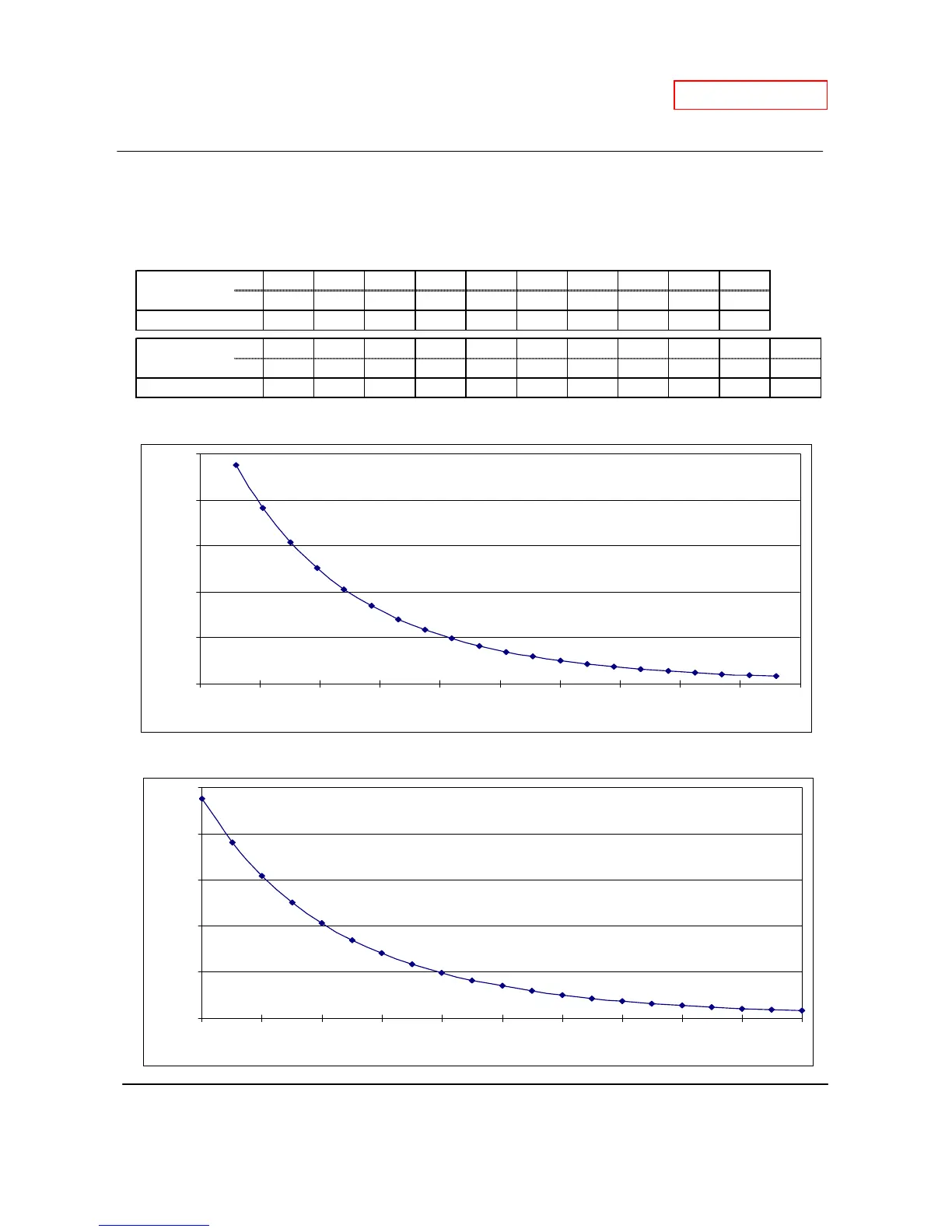

Temperature(ºF) vs. Resistance(kΩ)
Temperature(
℃
)
vs. Resistance(kΩ)
Temperature
0.00
5.00
10.00
15.00
20.00
25.00
20 40 60 80 100 120 140 160 180 200 220
Tem perature (ºF)
Resisitance (kΩ)
0.00
5.00
10.00
15.00
20.00
25.00
0 10 20 30 40 50 60 70 80 90 100
Tem perature (ºC)
Resisitance (kΩ)
Resistance values at different temperatures
