REPAIR PARTS
Residen al Hybrid Electric Heat Pump Water Heater Use and Care Guide • 33

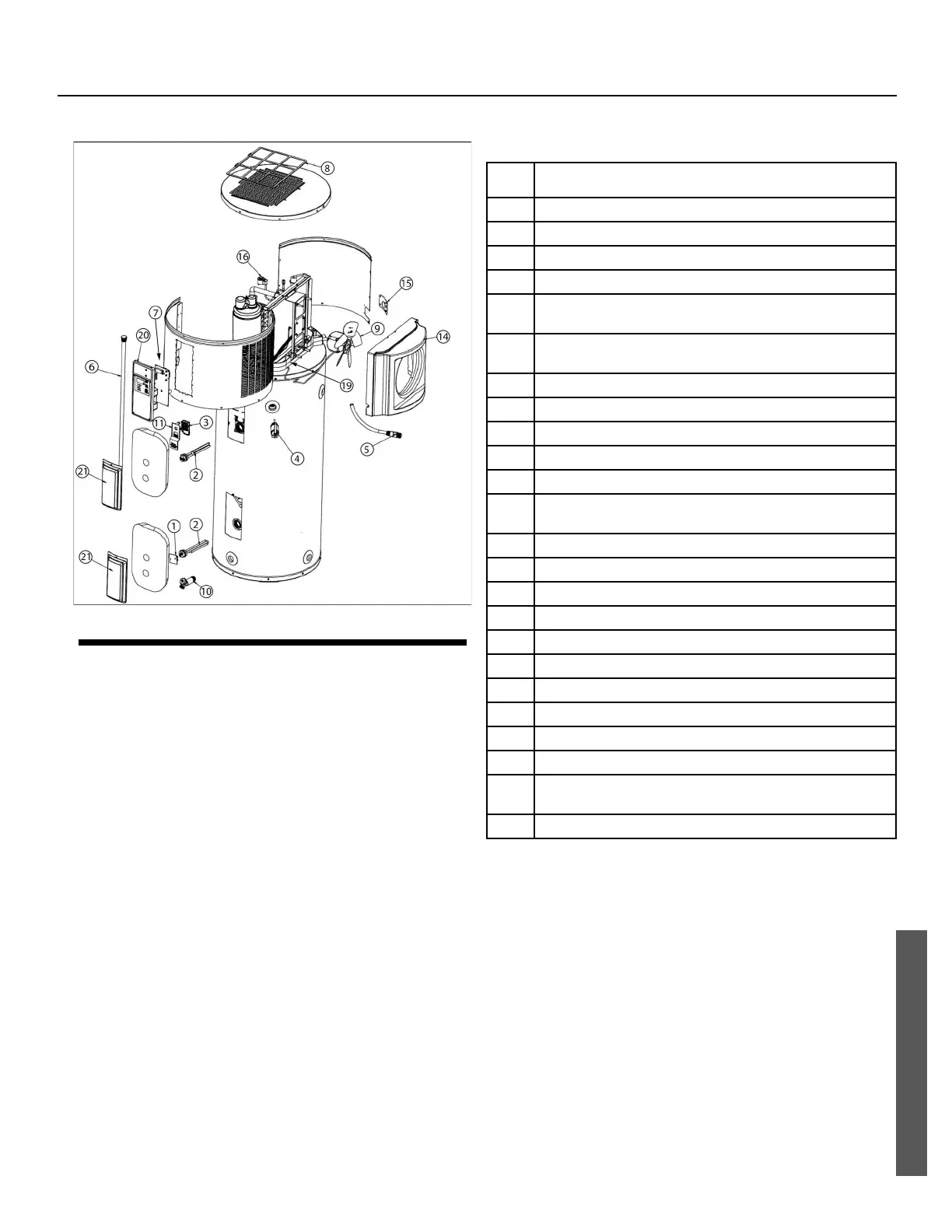

REPAIR PARTS ILLUSTRATION
ITEM
NO.
PARTS DESCRIPTION
1
Element Access Cover
2
Element (4500 Wa s)
3
Energy Cut-Off (ECO) Switch
4
Temperature & Pressure Relief Valve (T&P)
5
J-Tube (at hot water outlet; sizes for J-tubes are
dependent upon capacity of water heater)
6
Anode (Op onal for 50gal/189.3L and 66gal/249.8L
models)
7
Controller
8
Air Filter
9
Fan Assembly
10
Drain Valve - Brass - 2 inch
11
Personnel Protector
12
Ambient / Coil / Discharge Temperature Sensor
Assembly*
13
Upper / Lower Tank Temperature Sensor Assembly*
14
Fan Shroud
15
Condensate Drain Access Cover
16
Electronic Expansion Valve Coil
17
Run Capacitor*
18
Relay Kit*
19
Condensate Drain Pan
20
Smart Grid Cover
21
Element Access Panel
22
Condensation Pump Wiring Harness*
23
Anode (Optional for 66gal/249.8L and 80gal/302.8L
models)*
24
Anode (Optional for 80 gallon models)*
REPAIR PARTS
Repair parts may be ordered through your plumber, local
distributor, home improvement center . For informa on
about where to get parts in your area, visit our website at
www.hotwatercanada.ca or call 1-888-479-8324. When
ordering repair parts always give the following informa on:
1. Model, serial and product number
2. Item number
3. Parts descrip on
REPAIR PARTS LIST
* NOT SHOWN
