Chapter 2 Installation 23

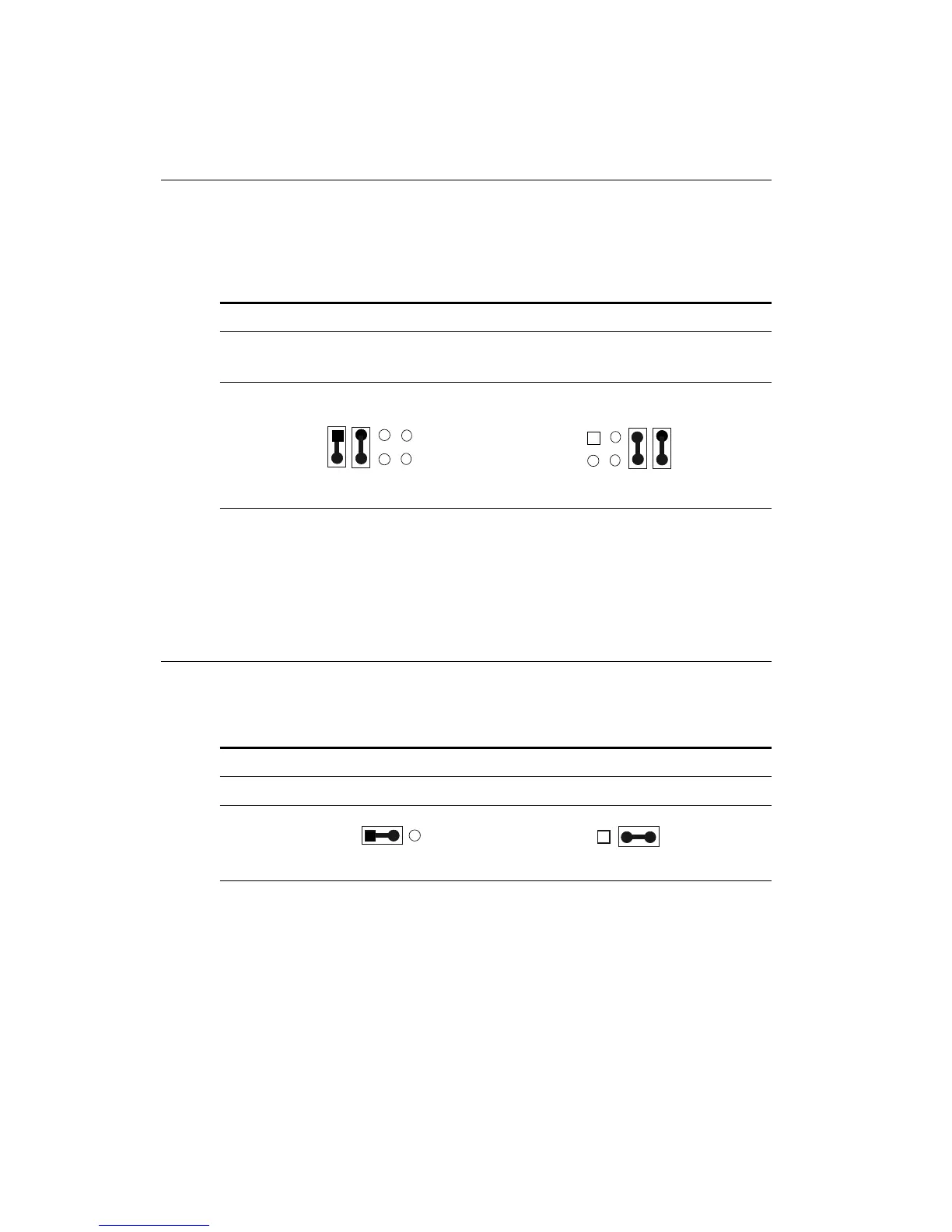

CPU Vio select (J13)
J13 must be set to match the CPU type. The CPU I/O voltage
(Vio) can be set to 3.3V or 2.5V.
CAUTION : Improper settings may damage the CPU !
CPU Vio select (J13)
* 3.3V 2.5V
(Intel Tillamook only)
J13
*default
Level 2 cache select (J16)
J16 must be set to match the CPU type in order for Level-2
cache to work properly.
L2 cache select (J16)
*Other CPUs Intel Tillamook CPU
J16
* default
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
1 2 3
1 2 3
