AAton XTRprod - Front View

10

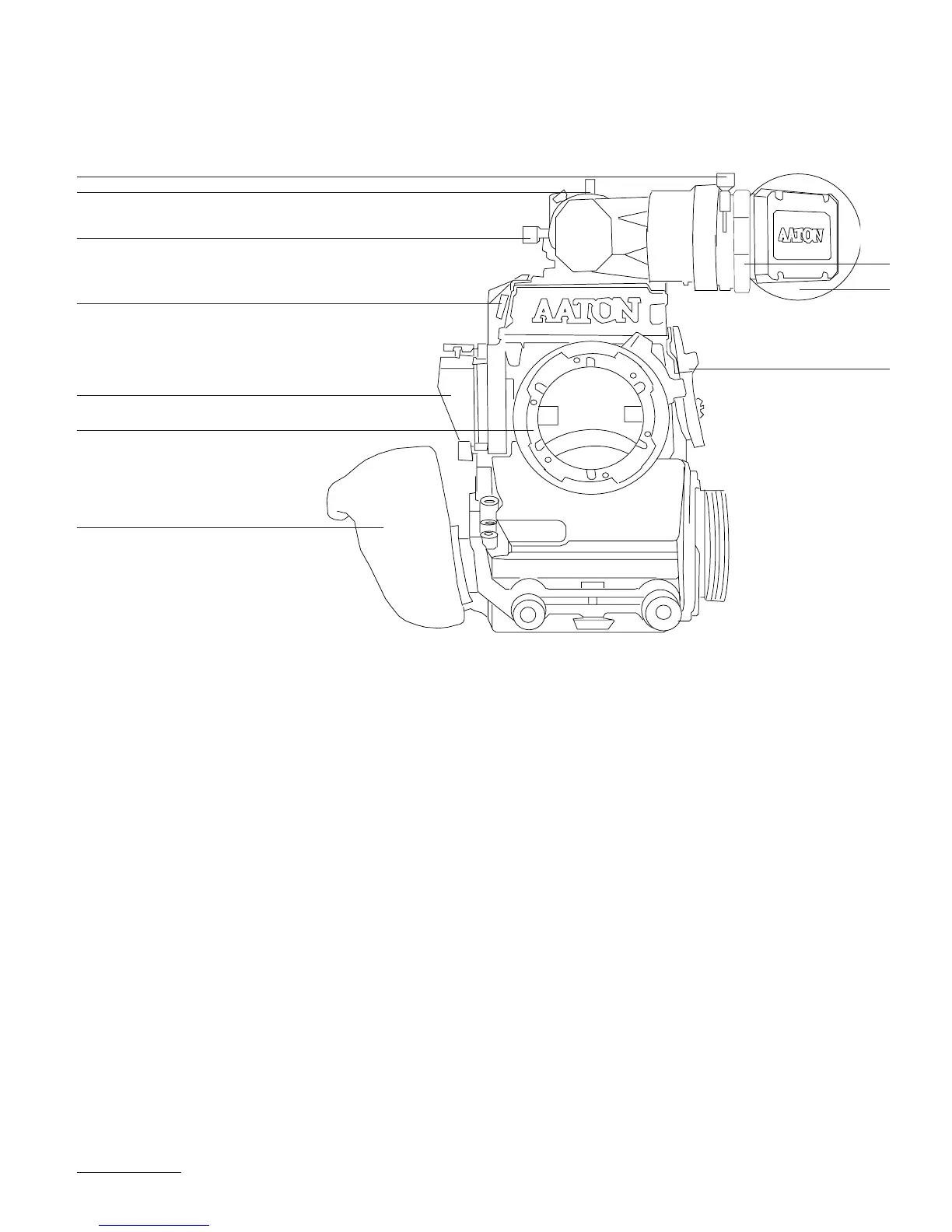

1.1 FRONT VIEW
1Friction Adjusting Ring adjusts the tension of the eyepiece swivel.
2Tape Measure Stud holds tape measure at film plane.
3 Lateral Lock Knob locks the lateral position of the viewfinder.
4Beamsplitter Access Cap covers the port which accesses the beamsplitter adjustment screw.
5 CCD Cover accesses the CCD head.
6 PL Lens Port standard mounting system for XTRprod.XTRprod.
7Wooden Handgrip allows for comfortable handheld operation.
8Eyepiece Lock Ring fastens interchangeable standard and extension finders.
9Eyepiece Shutter blocks light when operator's eye is away from the finder.
10 Body Run/Test Switch provides camera run and half frame inching.
1
2
3
4
5
6
7
10
9
8
