12

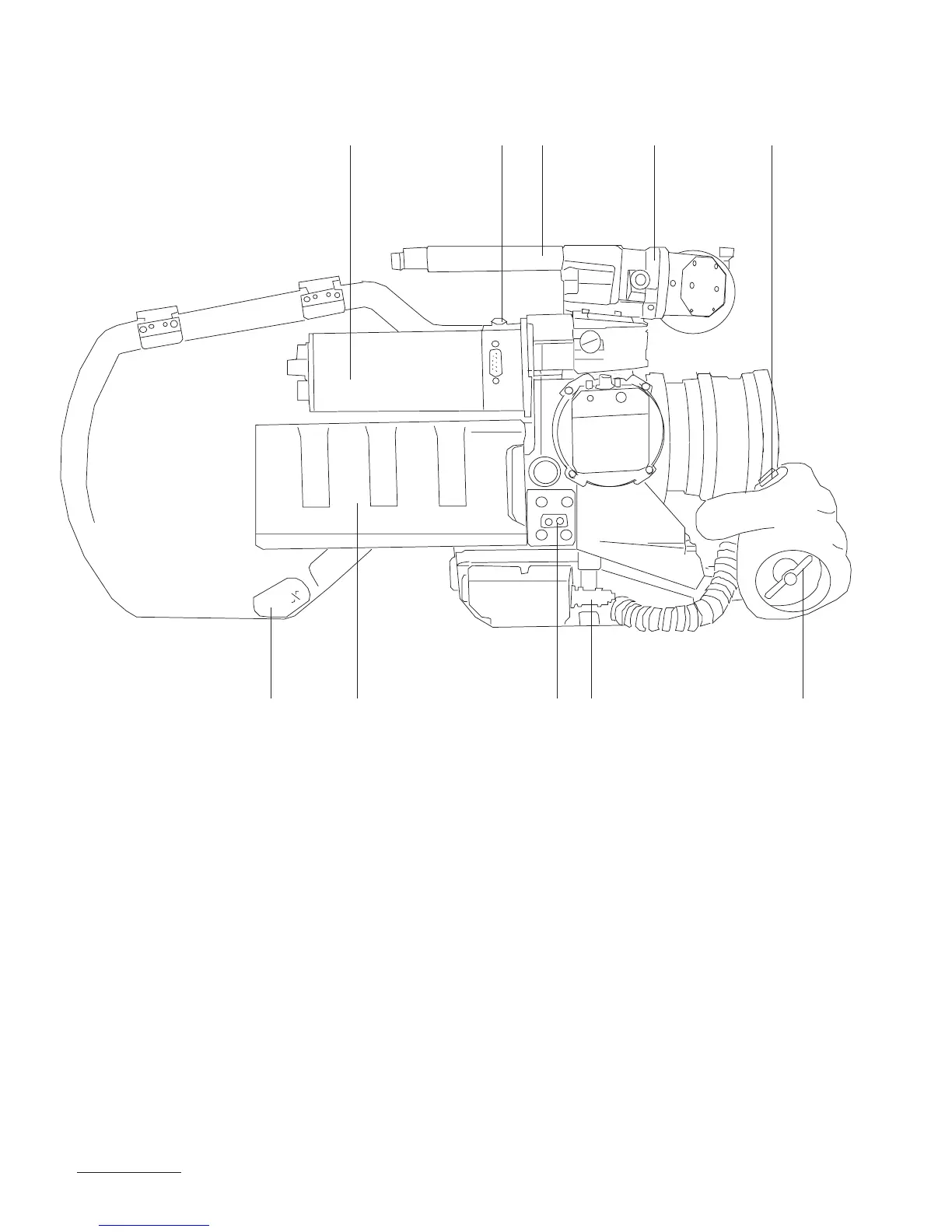

1.3 BATTERY SIDE
21 CCD Control Unit fastens to the body for CCD operation.
22 CCD On/Off powers the CCD assist. Switch off to conserve battery life.
23 Carrying handle includes tape measure stud, 3/8-16 accessory hole and adjusting tools.
24 Diopter Set Ring adjusts the diopter setting of the viewfinder to the operator's eye.
25 Run/Test Switch provides camera run and full frame inching from the handgrip.
26 Take-up Latch locks the magazine take-up door.
27 On-board Battery 12V nicad for handheld operation.
28 LED Indicators battery side indicators for camera run, camera test and low battery.
29 Lemo2 input provides camera run functions.
30 Adjusting Screw adjusts the rotation of the handgrip.
21 22 23 24 25
26 27 28 29 30
