AAton XTRprod - General Overview; Back View

11
GENERAL OVERVIEW

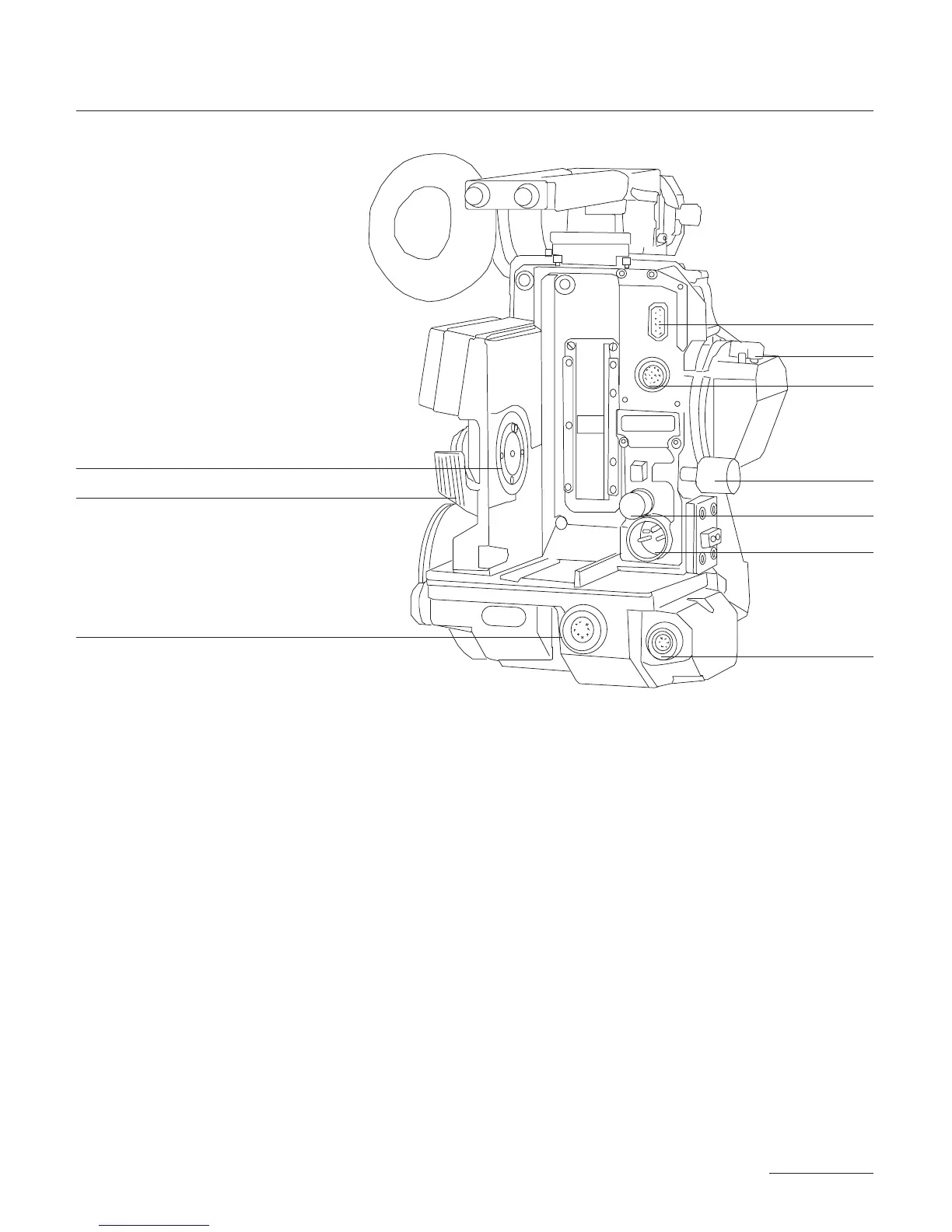

1.2 BACK VIEW
11 Magnetic Drive provides magnetic magazine coupling.
12 Mag Release Lever releases the magazine for removal.
13 Amph9 accessory input provides +/-, Hz, and camera run functions.
14 Manual Iris Lever controls CCD iris operation.
15 Lemo14 connects CCD head to the CCD control unit.
16 Battery Lock Screw fastens the on-board battery to the camera body.
17 Camera Fuse protects the body from excessive current and reverse polarity.
18 XLR4 main power input for on-board battery or other 12V power source.
19 Lemo8 accessory input provides +/-, Hz, TVsync, 100PPF and camera run.
20 Lemo6 accessory input provides +/- and camera run functions.
13
14
15
11
12
17
16
18
19
20
