the aperture opening (indicated below in grey).
Regardless of the screen or format, the entire full frame indicated on
all screens, should be centered to the entire aperture opening of the
camera gate.
The tolerance for this alignment is approximately the thickness of a
line of the screen. If the viewing screen does not seem to be aligned
properly, check its seating by pressing against the threaded hole with
your thumb.
• 3. Shifting the Viewfinder
The viewing optics of the camera need to be set to the new optical
center of the shifted viewing screen.
Remove the viewfinder assembly from the camera by removing the
four allen screws and spacer that hold the base of the viewfinder to
the front housing. Take note of the side on which the spacer has
been removed. The spacer is used to fill the gap that is created when
shifting the viewfinder between formats. Replace the viewfinder as-
sembly accordingly:
Secure the viewfinder by installing the spacer on the appropriate side
and installing the four screws loosely. After all four screws are in pla-
ce, tighten each screw until it is snug.

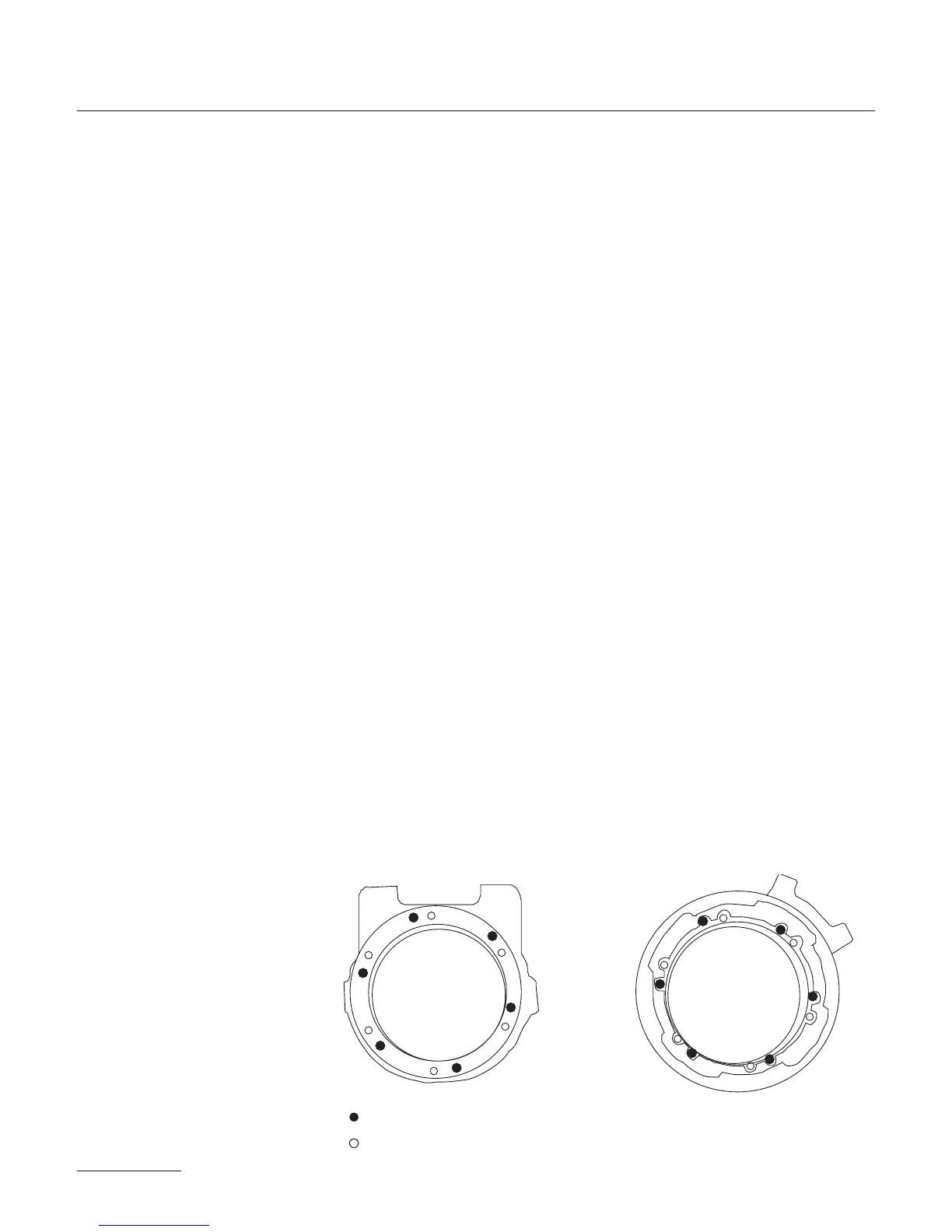

• 4. (a) Shifting the PL Lens Port
The PL lens port needs to be reset to the new optical center of the
shifted viewing screen and viewfinder.
88
