Manual Corrigo Ventilation, revision R Chapter 2 About Corrigo 13
Inputs
Analogue inputs AI .............................................. Settable 0…10 V DC or PT1000, 12 bit A/D
Digital inputs DI ....................................................................................... Potential-free closure
Universal inputs UI ........................................... Can be set to act as either an analogue input or
a digital input with specifications as above
Outputs
Analogue outputs AO ............................................... Configurable 0…10 V DC; 2…10 V DC;
10…0 V DC or 10…2 V DC
8 bit D/A short-circuit protected
Digital outputs DO ........................................... Mosfet outputs, 24 V AC/DC, 2 A continuous.
Totally max 8 A.
Options
LON ................................................................... FT3150, gives a second communication route
…W (TCP/IP-port) ............................... Replaces RS485 for EXOline (Port 1) communication
2-port Corrigo models ........................ Two serial ports or one serial port and one TCP/IP port
3 ports Corrigo............................................................ .... Two serial ports and one TCP/IP port
External hand terminal, E3-DSP ......................... For use with Corrigo E units without display
External room unit...................................................................... ED-RU / ED-RUD / ED-TCV

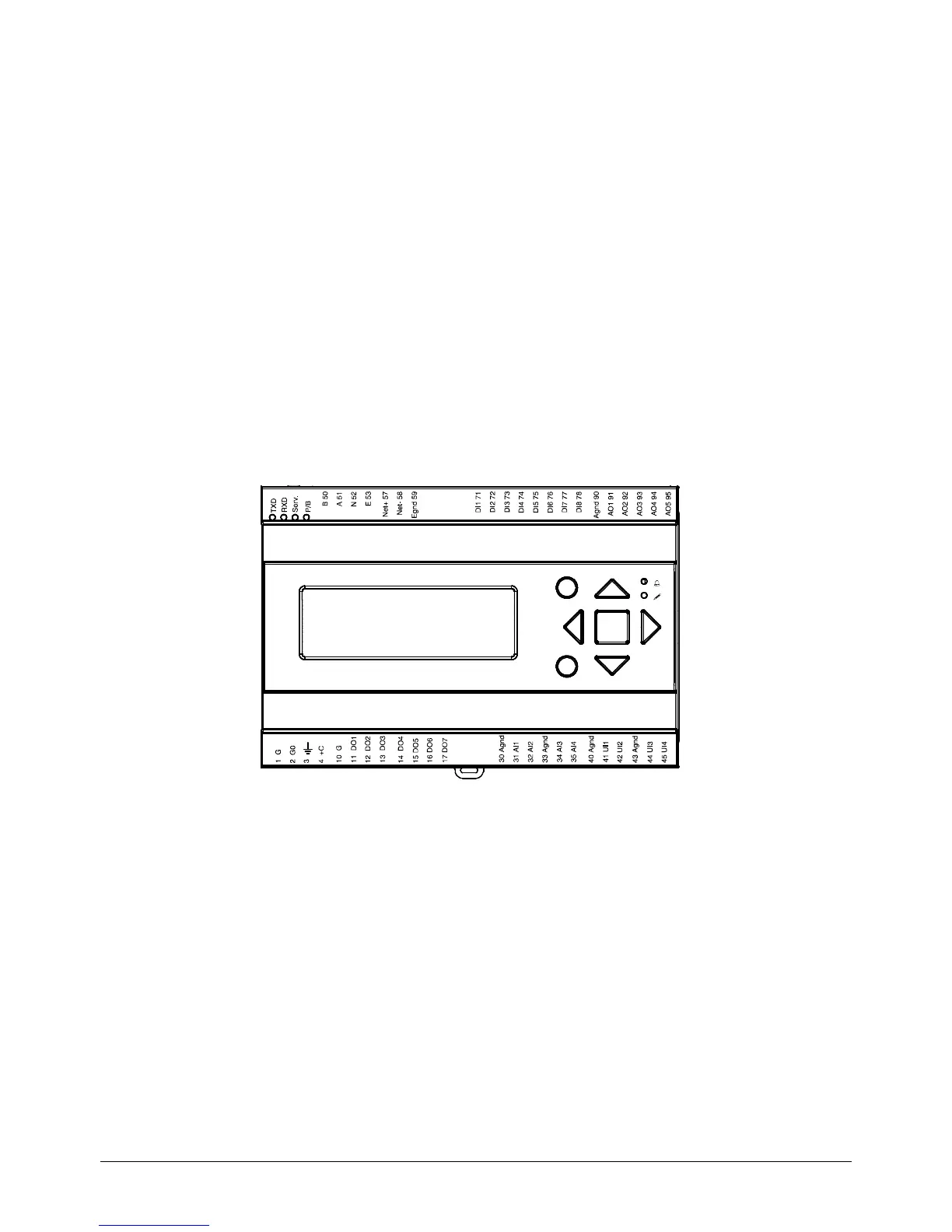

Position of the terminals on the Corrigo
