Installation 4 – 24 Advant Controller AC 31 / Issued: 08.99
3

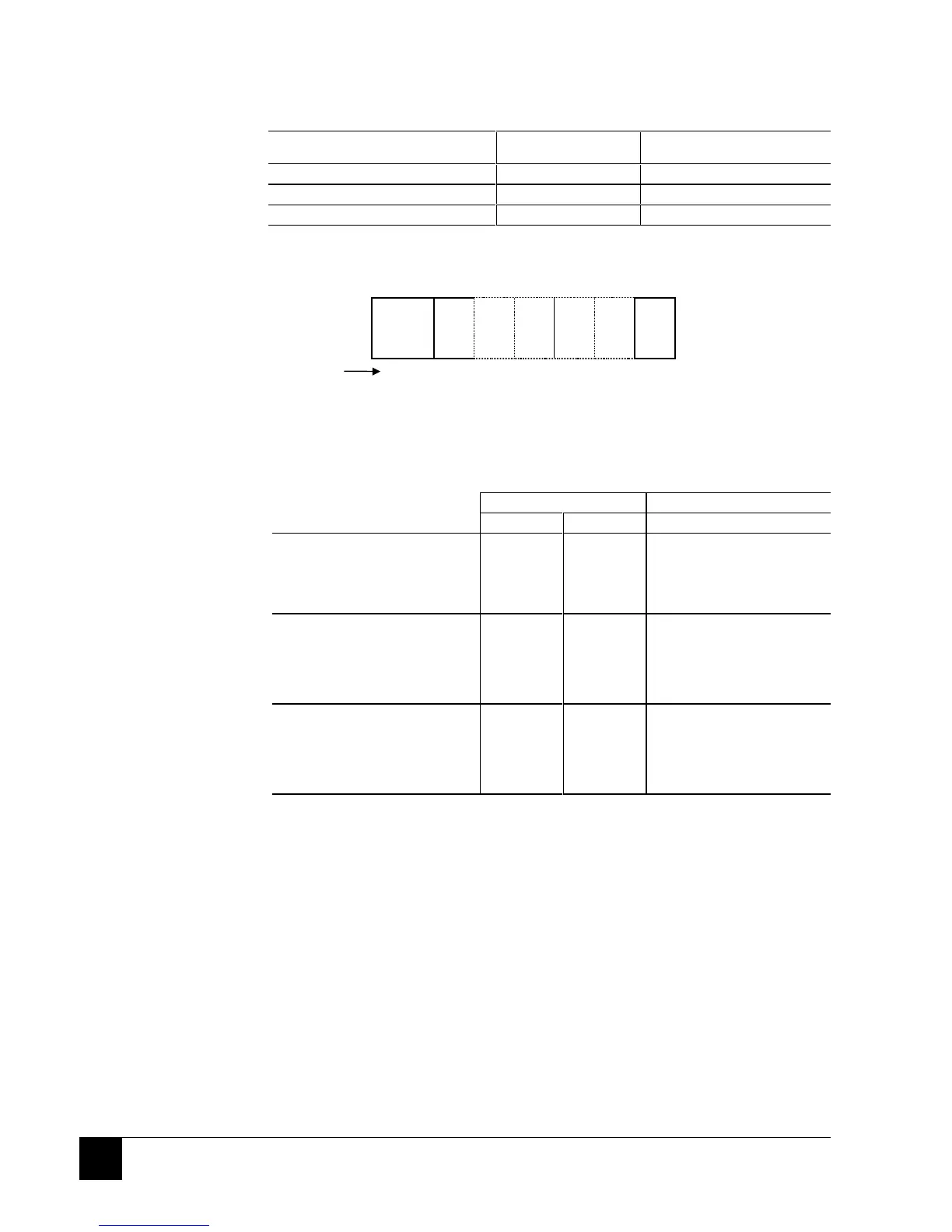

4.5.4 Summary
Master basic unit
40 and 50 series
Addresses Address configuration
- Integrated inputs/outputs 62 Standard
- Digital extension 63 to 68 automatically
- Analog extension 63 to 68 automatically
Remote
unit
Addresses X N
Where X = address of the extensible remote unit,
and N = maximum number of extensions of one type on an extensible remote unit.
Master basic unit Address configuration
50 series 90 series
- Extensible remote unit, By rotary switches
If solely digital extension
0 ≤ X+N ≤ 61 0 ≤ X+N ≤ 61
automatically
If at least one analog extension
0 ≤ X ≤61 0 ≤ X ≤5
automatically
- 50 series slave basic unit
Digital configuration 0 to 61 0 to 61 by programming software
KW00,00
Analog configuration 0 to 61 0 to 5 by programming software
KW 00,00
- 90 series slave basic unit
Digital configuration 0 to 61 0 to 61 by programming software
KW 00,00
Analog configuration 0 to 5 0 to 5 by programming software
KW 00,00

ABB 07CR41 Specifications

General

Manufacturer	ABB
Model	07CR41
Product ID	07CR41
Extended Type Designation	07CR41
Country of Origin	Germany
Contact Configuration	4PDT
Mounting Type	DIN Rail
Terminal Type	Screw
Type	Relay Controller
