3 Turbocharger weight and transportation / 
© Copyright 2019 ABB. All rights reserved. HZTL455311P0038_EN Rev.A December 2019
3 Turbocharger weight and
transportation
Lifting gear with a sufficient load limit must be used for removing, installing and transport-
ing the turbocharger. The weight specified below applies to the heaviest variant possible.
Depending on the specification, the weight specified on the rating plate may be lower than
the standard value specified here.
Swivel lifting eyes to be used
Two swivel lifting eyes are required for the safe lifting of loads, these are not supplied by
ABB Turbo Systems.

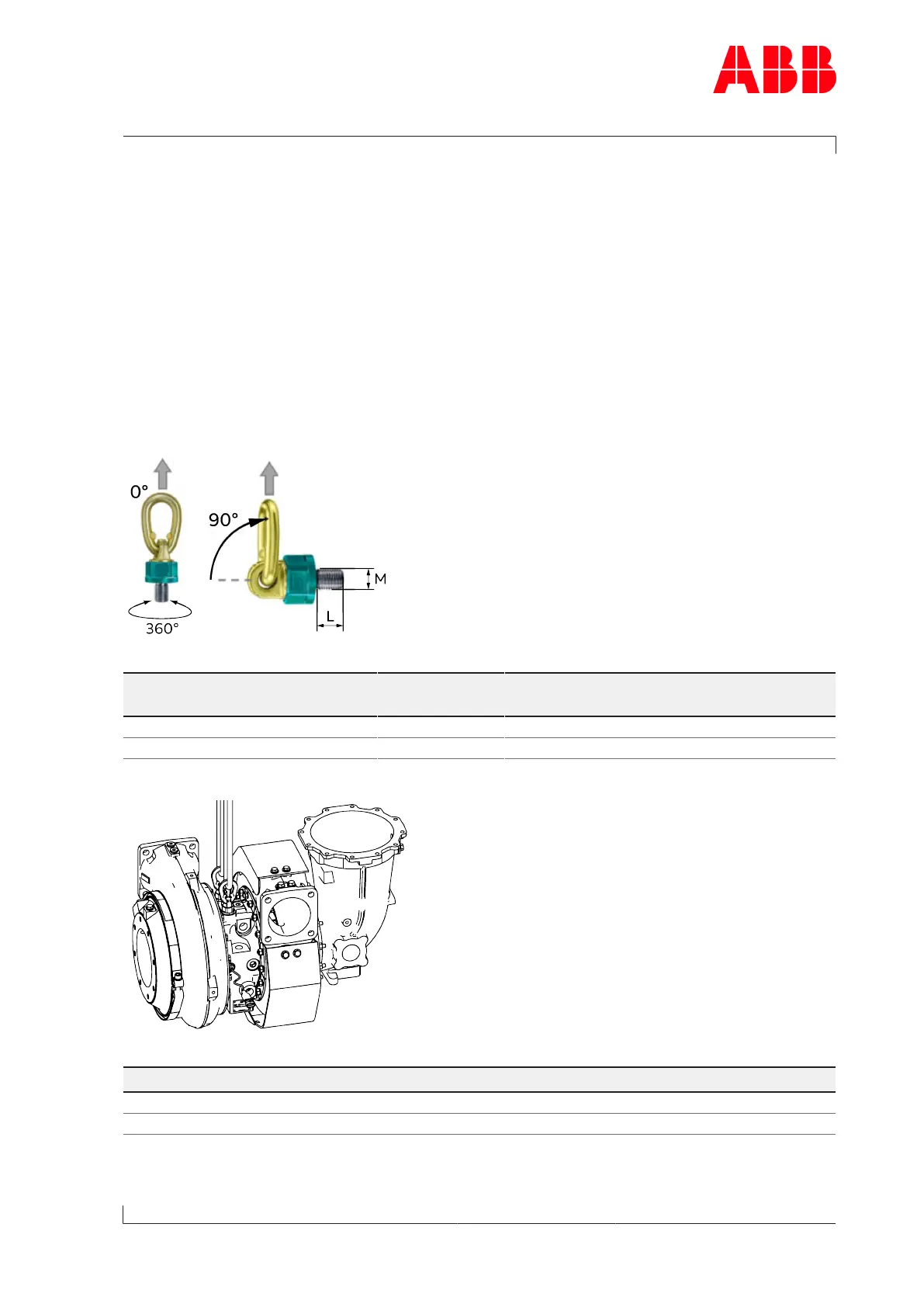

Fig.3: Swivel lifting eyes
Product Thread M Length L
[mm]
Minimum load limit
[kg]
Quantity
A131-H M8 13 mm 300 kg 2
A136-H M10 17 mm 450 kg 2
Table4: Swivel lifting eyes
Fig.4: Suspension of complete turbocharger unit
Product Weights [kg]
A131-H 190
A136-H 310
Table5: Weights of turbochargers A101-H
