ABB A101-H Series User Manual

Assembly Instructions / A101-H
4 Installing the turbocharger / 4.2 Fitting threaded rods
© Copyright 2019 ABB. All rights reserved. HZTL455311P0038_EN Rev.A December 2019
4.2 Fitting threaded rods
Fastening material, scope of delivery
The threaded rods and nuts for fastening the turbocharger on the bracket are not included
in the ABB Turbo Systems scope of delivery.
Requirements for the threaded rods

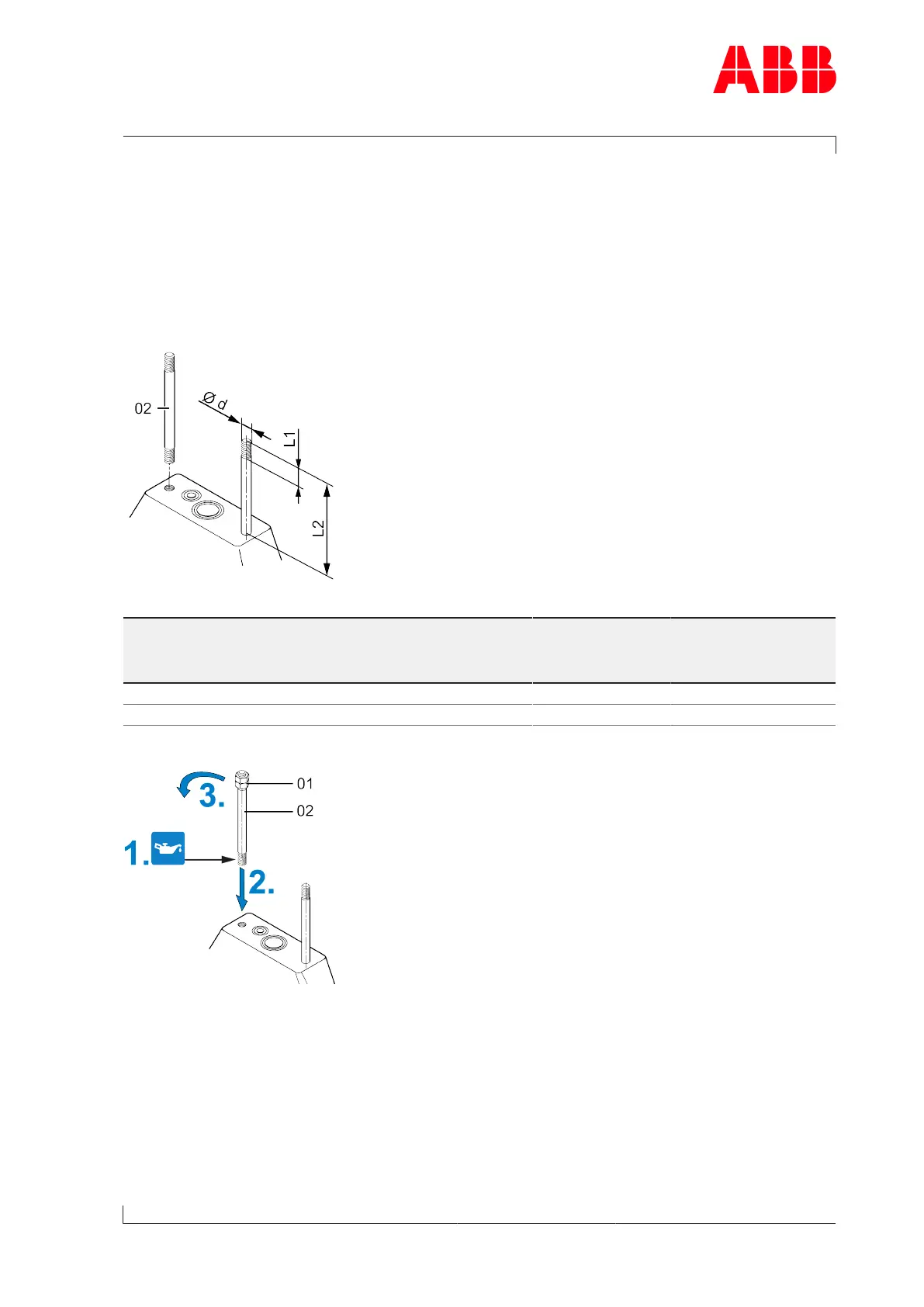

Fig.6: Requirements for threaded rods
Product Diameter
Threaded rod
[mm]
Material
DIN / ISO 898
(Part 1)
Thread length
L1[mm]
Free length over
bracket
L2 [mm]
A131-H Ø 16 / M16 10.9 / 12.9 ≥ 30 195
A136-H Ø 20 / M20 10.9 / 12.9 ≥ 30 225
Table6: Requirements for threaded rods
Fig.7: Fitting threaded rods onto the bracket
1. Lightly oil the surfaces of the threaded rods(02) to be screwed in.
2. Screw the threaded rods into the bracket with the aid of locknuts(01).
3. Remove nuts(01) again.
Page 11 / 17
