Assembly Instructions / A101-H
4 Installing the turbocharger / 4.3 Placing the turbocharger on the
bracket
© Copyright 2019 ABB. All rights reserved. HZTL455311P0038_EN Rev.A December 2019
4.3 Placing the turbocharger on the bracket

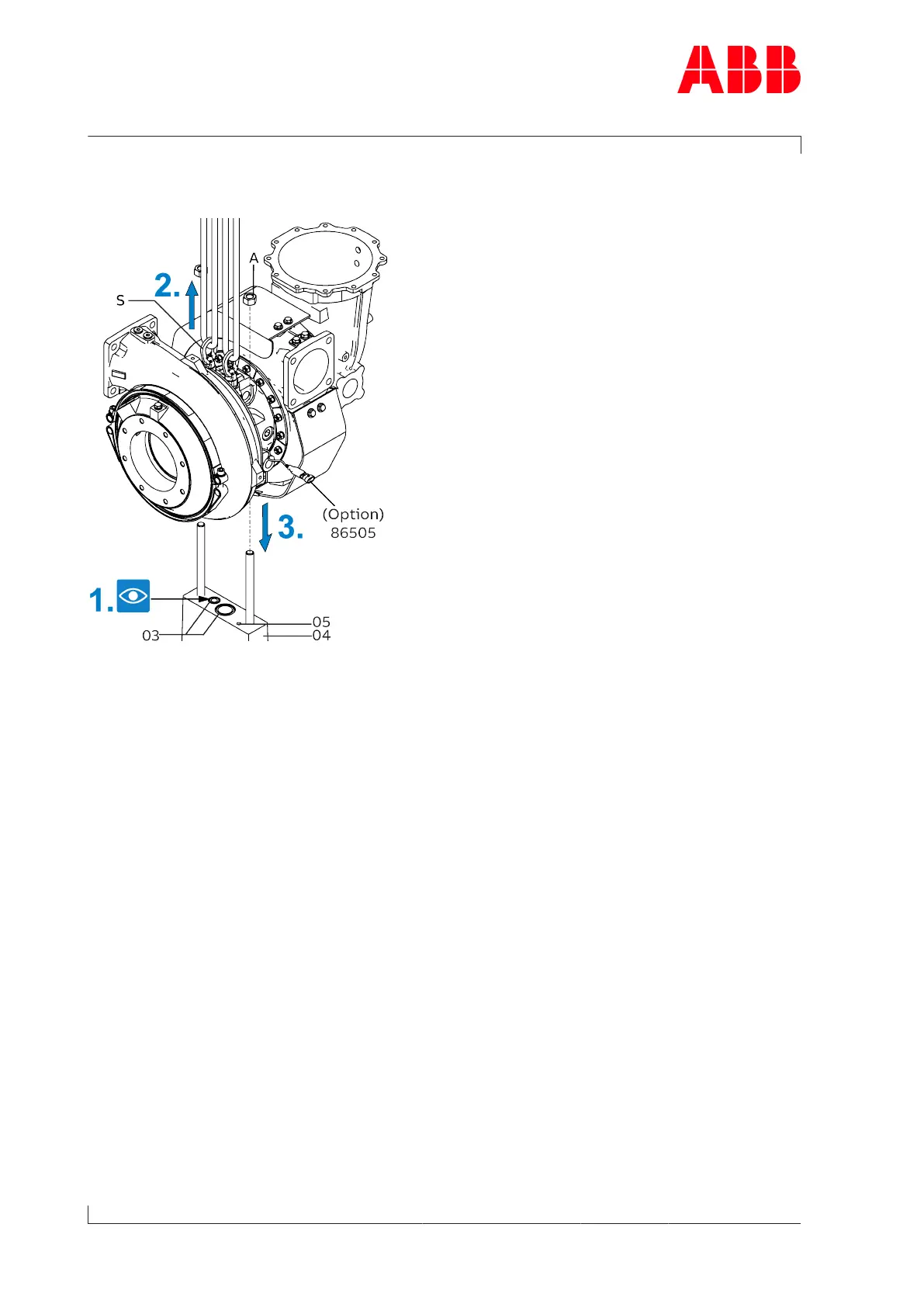

Fig.8: Placing the turbocharger on the bracket
A Standard nut
u Make sure that covers of the oil and water connections are removed.
1. Make sure that the O-rings(03) are undamaged and positioned correctly in the slots.
2. Attach lifting gear to the swivel lifting eyes(S).
3. Position the turbocharger on the bracket(04) and align it. If present, pay attention to the
positioning pin(05) in the bracket.
