ABB A150-M Series Instruction Manual

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.6
Removing the cartridge group
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020

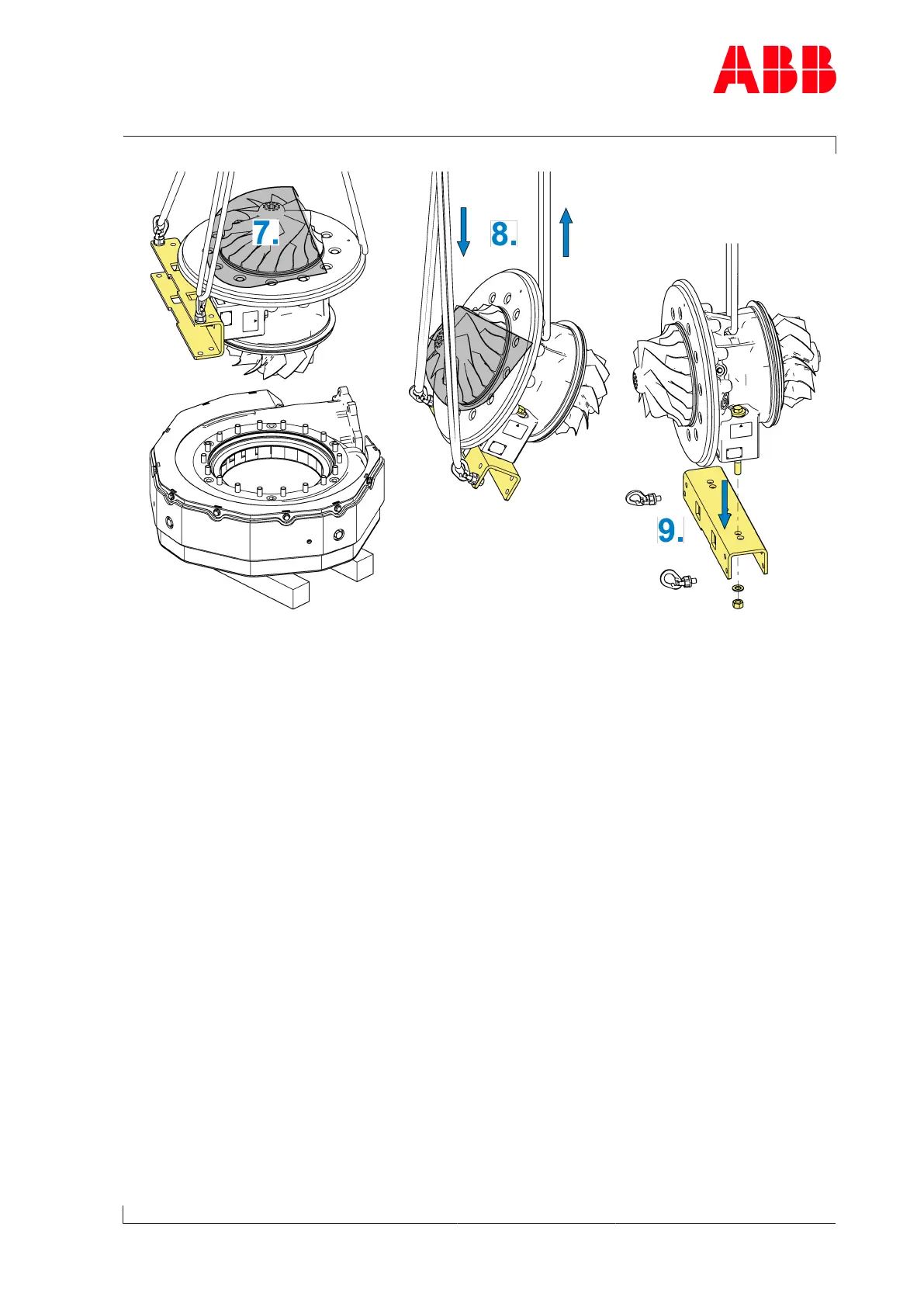

Fig.55: Removing cartridge group 3
7. Place a suitable protective cover over the compressor wheel.
8. Turn the cartridge group into the horizontal rotor axis.
9. Remove lifting gear from service support and cross-piece.
Page 91 / 171
