ABB A150-M Series Instruction Manual

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
1 Introduction / 1.4 Layout and function of the turbocharger
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
1.4 Layout and function of the turbocharger

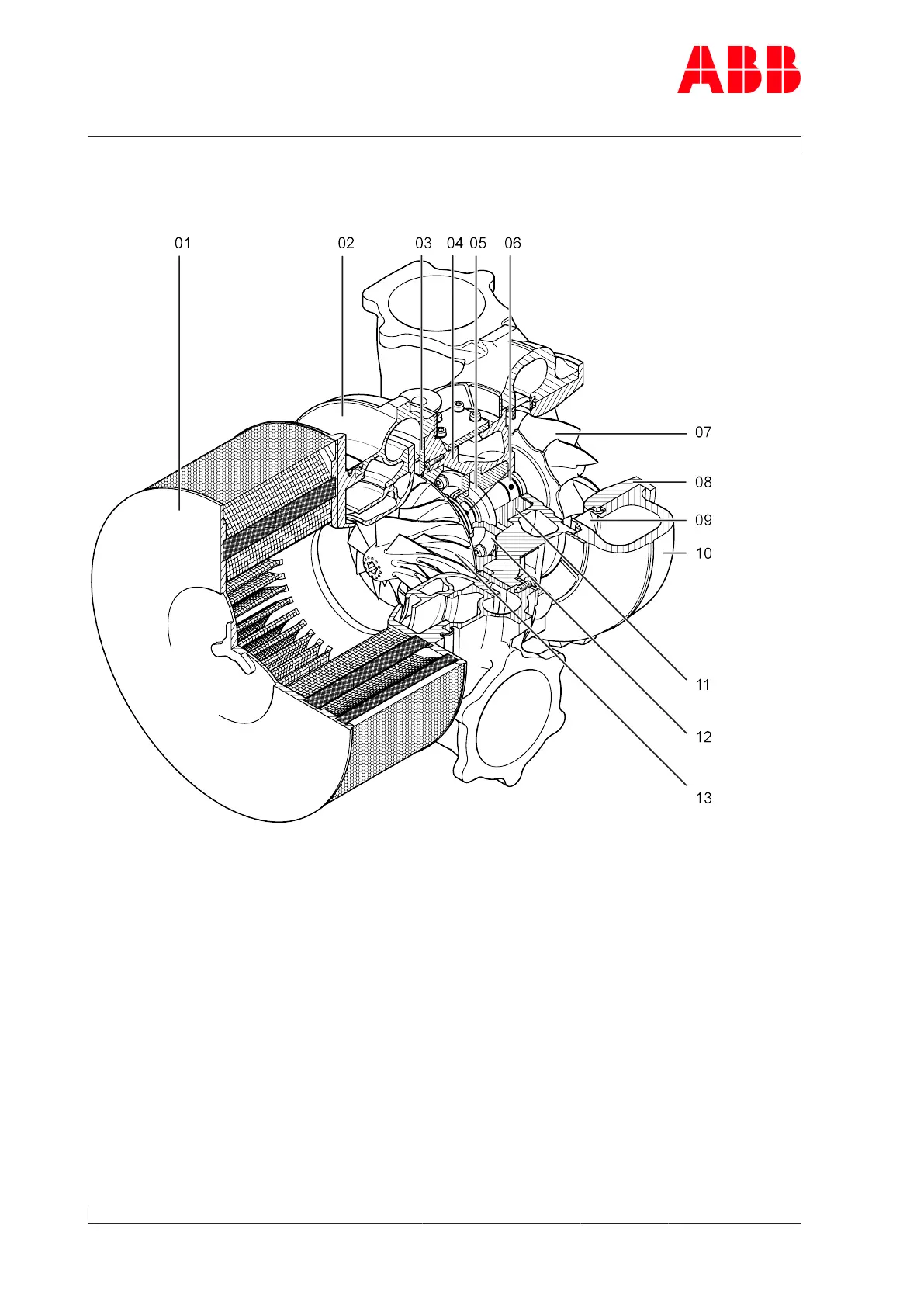

Fig.1: Layout and function of the turbocharger
01 Filter silencer / air suction branch 08 Gas outlet flange
02 Compressor casing 09 Nozzle ring
03 Diffuser 10 Turbine casing
04 Bearing casing 11 Turbine-end bearing flange
05 Axial thrust bearing 12 Compressor-end bearing flange
06 Radial plain bearing 13 Compressor wheel
07 Turbine
Page 6 / 171
