ABB A150-M Series Instruction Manual

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
10 Dismantling and fitting, cartridge concept / 10.9 Installing the com-
pressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
Installing the compressor casing

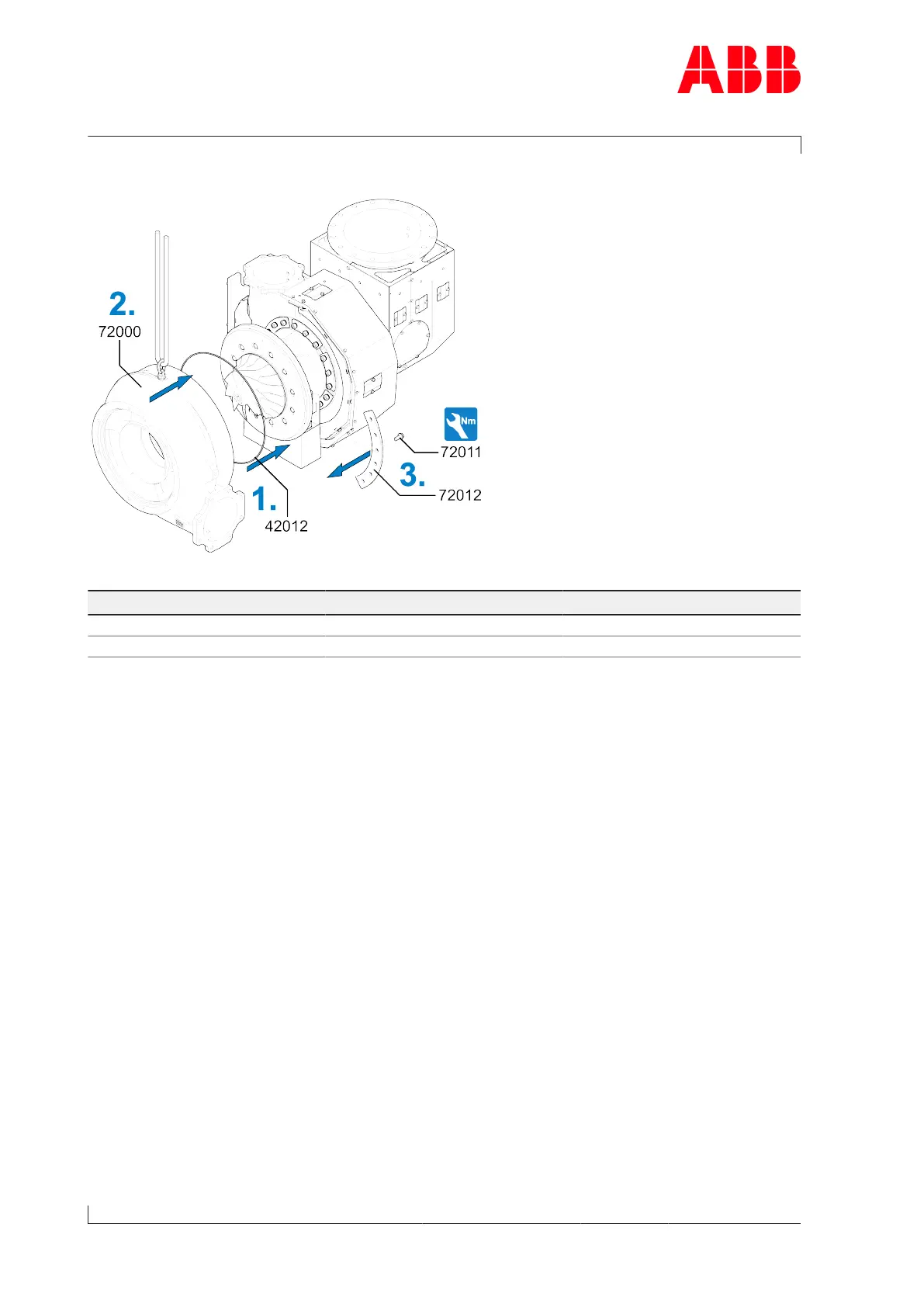

Fig.94: Installing the compressor casing
Product Size Tightening torque [Nm]
A150 M16 275
A155 M18 370
Table60: Tightening torque (72011)
u Thoroughly clean the fastening strips(72012) before assembly.
1. Fit a new O-ring(42012).
2. Install the compressor casing(72000).
3. Install the fastening strips(72012) with screws(72011). Observe the tightening torque.
Page 128 / 171
