ACH580 E-Clipse bypass and packaged drive user manual 217
Technical data

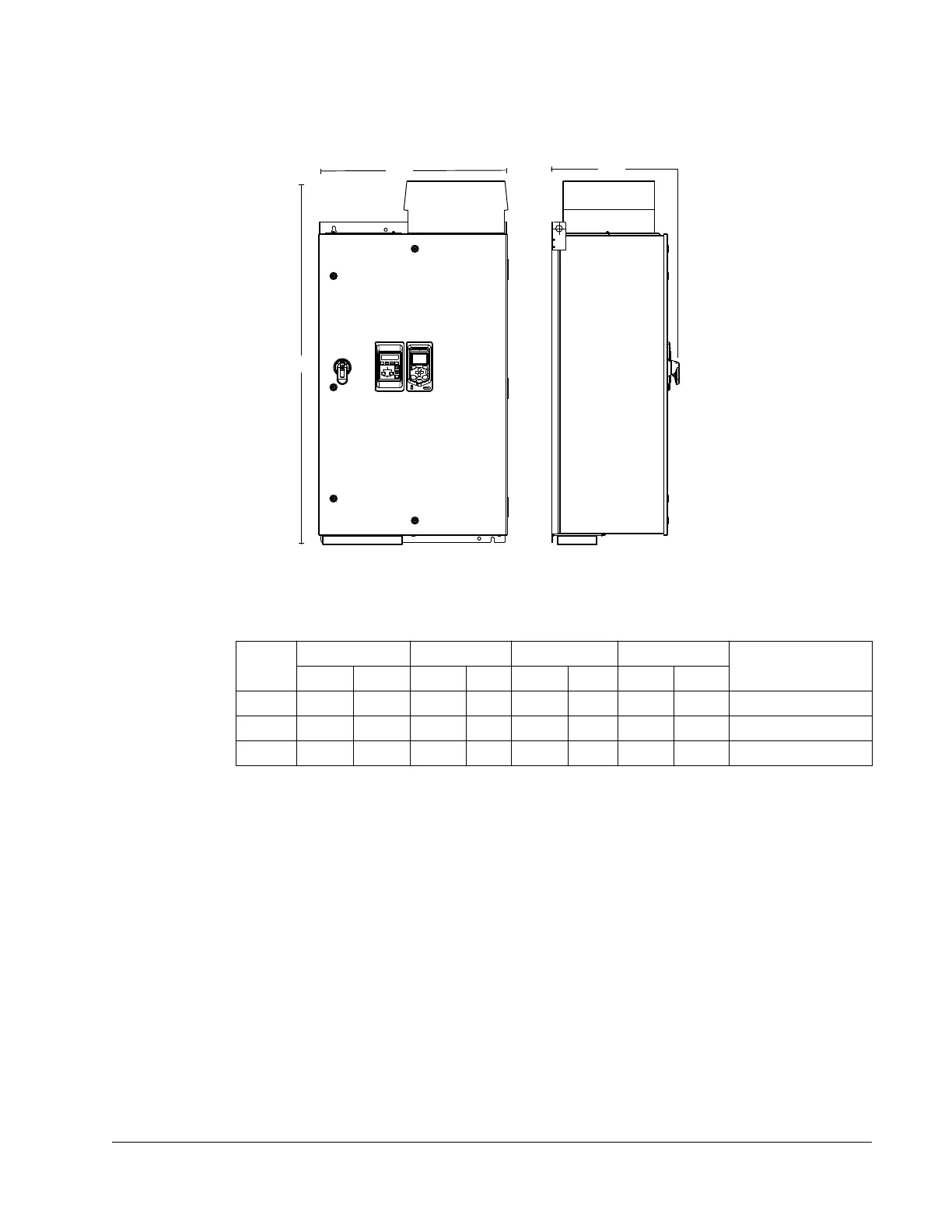

Dimensions: ACH580-BxR UL (NEMA) Type 12, R1 through R8 Frame Size
Frame
Height (H) Width (W) Depth (D) Weight
Dimensional
Drawings
in mm in mm in mm lb kg
Bx12-1 33.16 842 17.63 447 13.90 353 84.0 38.1 3AXD50000234028
Bx12-2 40.60 1030 20.50 521 15.30 388 139.0 63.0 3AXD50000235193
Bx12-3 54.17 1376 28.24 717 19.04 483 448.0 203.0 3AXD50000211159
*Keep a minimum of 50 mm (2 in) of free space on each side and 200 mm (8 in.) of free space above
and below all units from non-heat producing sources. Double these distances from heat producing
sources.
Wall Mount (Bx12-1 - Bx12-3)
BYPASS CONTROL
ESC
ENTER
ENABLE
SELECTED
FAULTED
MOTOR RUN
DRIVE
BYPASS
AUTO
OFF/RESET
HAND
Drawing is not for engineering purposes.
W
H
D
