ABB ACQ580 Quick Start Up Guide

Hand/Off/Auto operation
The drive can be used in following modes: Auto, Off, Hand
Auto mode – Drive is controlled remotely from the I/O or
the fieldbus.
Off mode – Drive is controlled locally from the control
panel. This mode indicates that drive is stopped.
Hand mode – Drive is controlled locally from the control
panel. This mode indicates that drive is running. With this
mode, the initial reference is copied from the drive reference.
The symbol
EN – Quick start-up guide 7
R0-
R4
EN
DE
ES
FR
IT
RU
SV
3 – Hand/Off/Auto operation
The drive can be used in following modes: Auto,
Off, Hand
Auto mode – Drive is controlled remotely from the
I/O or the fieldbus.
Off mode – Drive is controlled locally from the
control panel. This mode indicates that drive is
stopped.
Hand mode – Drive is controlled locally from the
control panel. This mode indicates that drive is
running. With this mode, the initial reference is
copied from the drive reference.
symbol on the top row indicates that you can
change the reference with and .

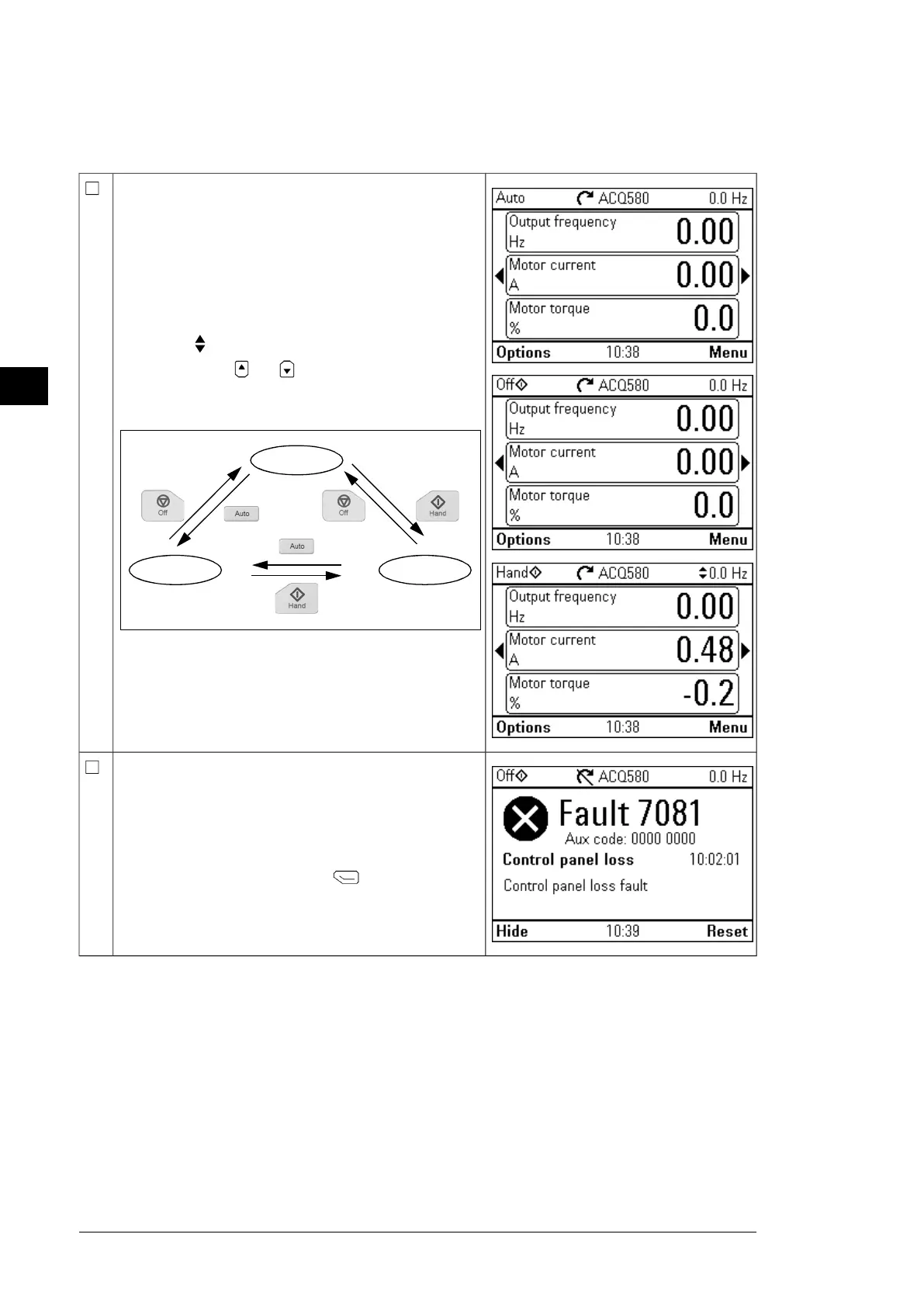

The following diagram shows the state transitions
when you press the Auto, Off or Hand button:
Drive generates the Fault 7081 Control panel
loss if the panel was disconnected from the drive
for more than the communication loss time
defined in the drive (parameter 49.04).
If panel is not connected to the drive, reset signal
should come from I/O or fieldbus, or by
reconnecting the panel.
When panel is reconnected, press (Reset)
to reset the fault.
Auto
Off
Hand
ACQ580 QSG.book Page 7 Wednesday, July 26, 2017 3:17 PM
on the top row indicates that you can change
the reference with and .
The following diagram shows the state transitions when you
press the Auto, Off or Hand button:
EN – Quick start-up guide 7
R0-
R4
EN
DE
ES
FR
IT
RU
SV
3 – Hand/Off/Auto operation
The drive can be used in following modes: Auto,
Off, Hand
Auto mode – Drive is controlled remotely from the
I/O or the fieldbus.
Off mode – Drive is controlled locally from the
control panel. This mode indicates that drive is
stopped.
Hand mode – Drive is controlled locally from the
control panel. This mode indicates that drive is
running. With this mode, the initial reference is
copied from the drive reference.
symbol on the top row indicates that you can
change the reference with and .
The following diagram shows the state transitions
when you press the Auto, Off or Hand button:
Drive generates the Fault 7081 Control panel
loss if the panel was disconnected from the drive
for more than the communication loss time
defined in the drive (parameter 49.04).
If panel is not connected to the drive, reset signal
should come from I/O or fieldbus, or by
reconnecting the panel.
When panel is reconnected, press (Reset)
to reset the fault.
Auto
Off
Hand
ACQ580 QSG.book Page 7 Wednesday, July 26, 2017 3:17 PM
Drive generates the Fault 7081 Control panel loss if the
panel was disconnected from the drive for more than the
communication loss time defined in the drive (parameter
49.04).
If panel is not connected to the drive, reset signal should
come from I/O or fieldbus, or by reconnecting the panel.
When panel is reconnected, press (Reset) to reset the
fault.
10 EN – Quick start-up guide
EN
CS
DE
ES
FI
FR
IT
PT
RU
SV
TR

ABB ACQ580 Specifications

General

Protection class	IP21, IP55
Ambient temperature range	-15°C to +50°C
Communication protocols	Modbus RTU
Mounting type	Wall mounted
Control method	vector control
Frequency range	0 Hz to 500 Hz
Protection features	Overcurrent, overvoltage, undervoltage, short circuit
