CHAPTER 6 – ELECTRICAL INSTALLATION 100

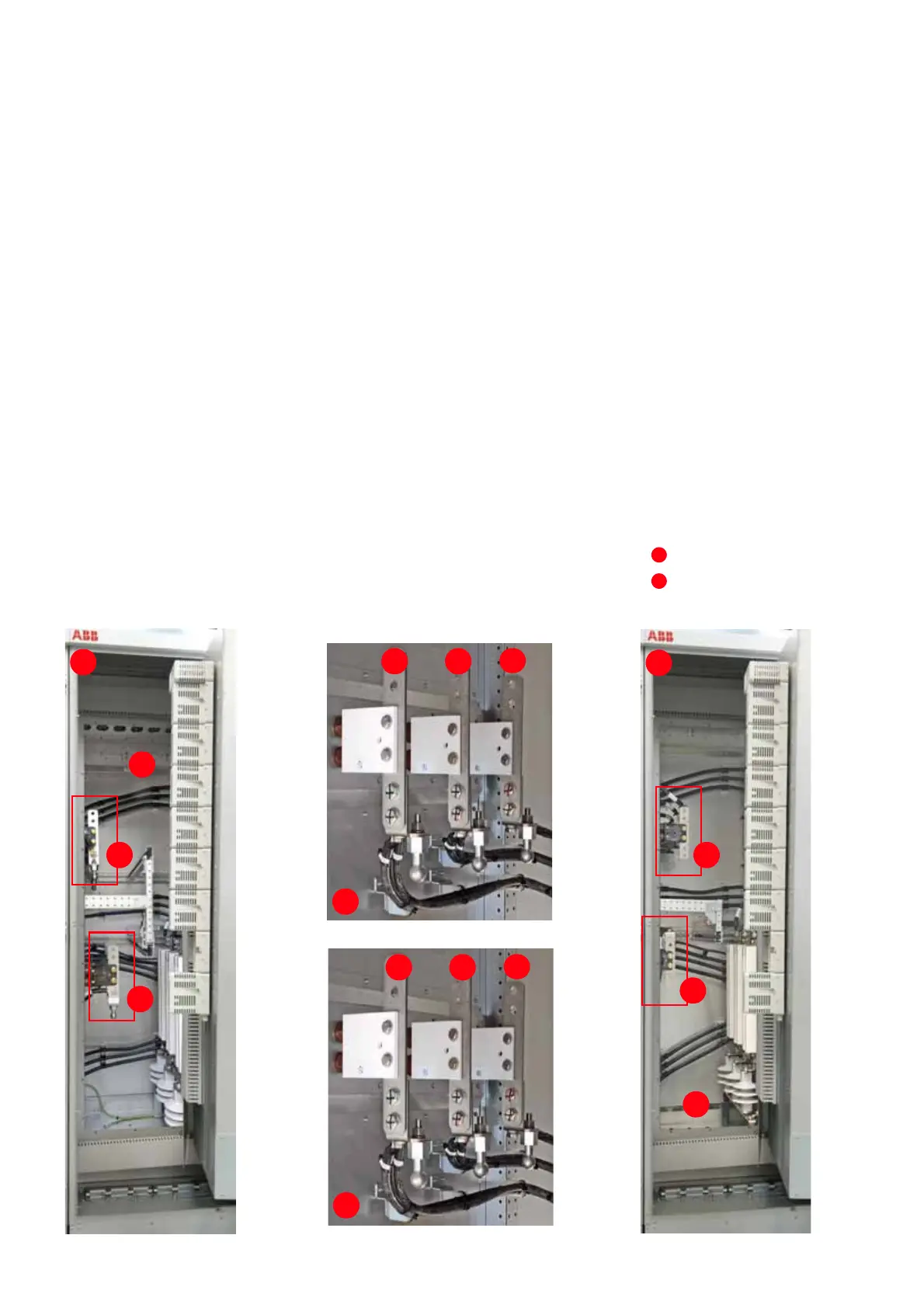

Connections
Connect the cables to their corresponding bus-
bars:
• the feeder cable conductors to busbars U1, V1,
W1, (1)
• the motor cables to busbars U2, V2, W2, (2)
• the screen ends of all conductors and the
shields of all cables to the PE ground bus,
• the ground cable to the PE ground bus (3),
• the equipotential bonding conductor to the PE
ground bus (4).
—
References
—
6-7 Power cable entry
—
6-7
A
B
3
4
2
1
1
2
2
1
U2 V2
W2
U1 V1
W1
Top cable entry
Bottom cable entry
A
B
