103 ACS2000 AFE 2MVA UM 3BHS355653 ZAB E01 REV. H
Routing the cables
Top and bottom entry
• Rout the cables as illustrated to the customer
terminals in the control compartment.
Preparing cables for EMC plates
Top or bottom entry
1. Remove the grommets.
2. To ensure proper sealing, cut along the marking
that corresponds to the cable diameter.
3. Slide the grommet onto the cable. The grom-
met must fit tightly to prevent water entering
the cabinet.
The grommets can be discarded if cables are
entered through the floor.
4. If necessary, remove the entry plate and the
cable through the entry holes.
5. Loosen all screws of the EMC cushion brackets
and push the cushions apart.
—

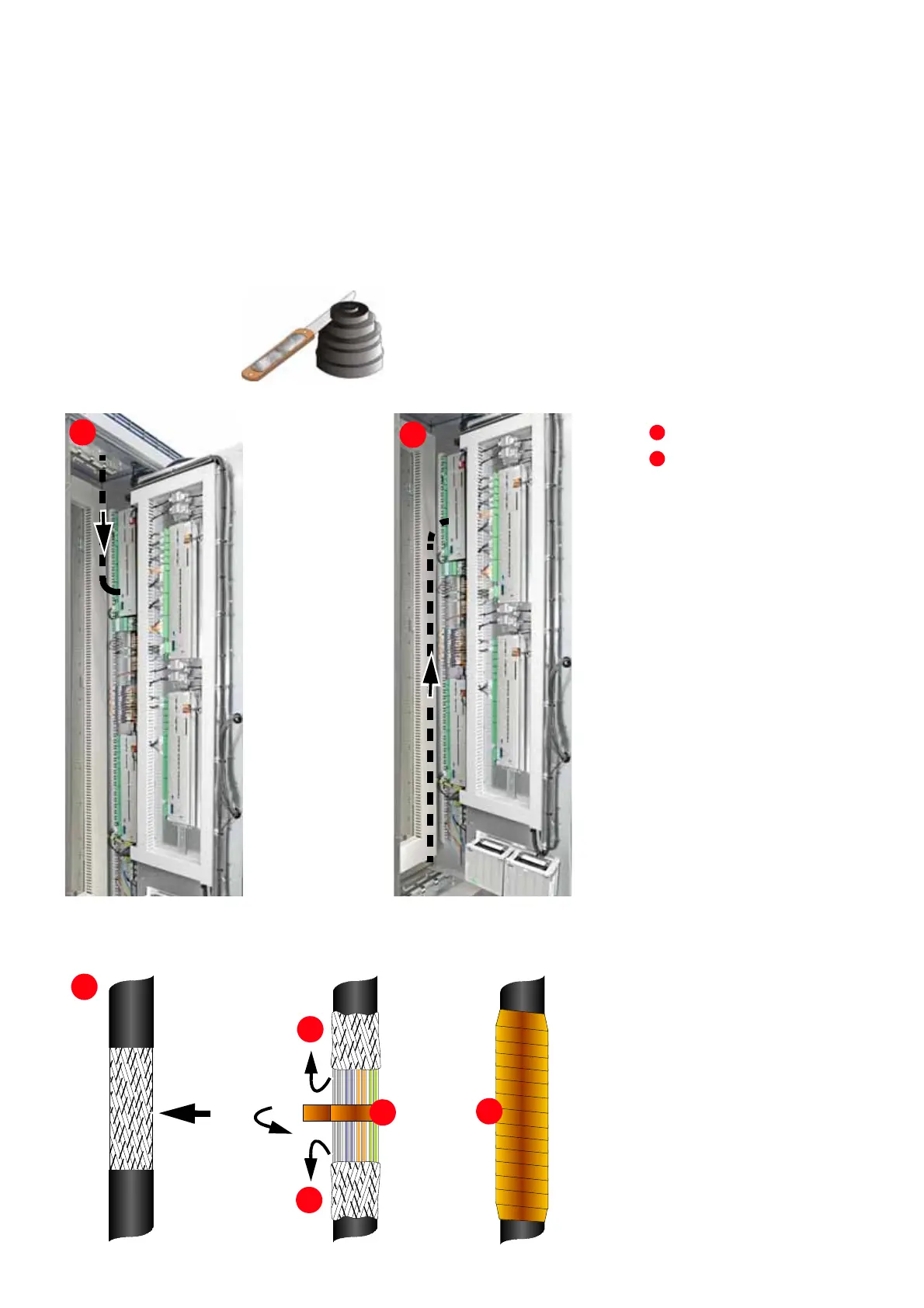

References
—
6-9 Control cable entry
—
6-10 Preparing control
cables for EMC plates
—
6-9
A
B
Top cable entry
Bottom cable entry
A
B
—
6-10
1
2
2
3
3
