Tools

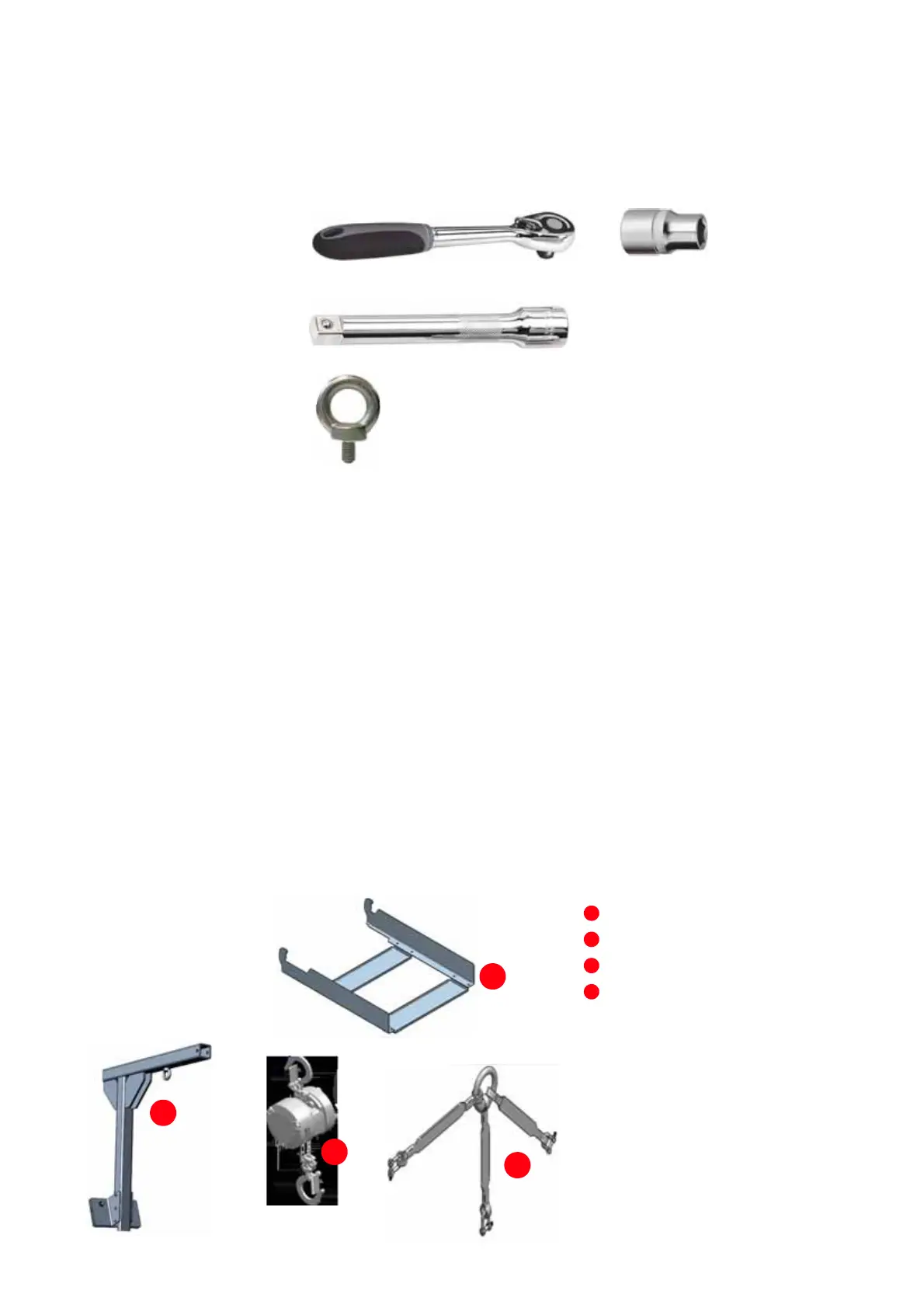

Phase module replacement kit
The following parts (10-16) are required for the
maintenance of the phase modules. The parts can
be order as a kit (standard option), or separately.
Other tools
The tools below are not included in the scope of
supply.
—
References
—
10-16 Phase module
replacement kit
—
10-16
3BHB029201R0001 Module tray 2MVA
2UBA005486R0001 Cantilever
3BHB032083R0001 Lifting hoist
3BHB030813R0001 Hoisting brackets,
3 arms
1
2
3
4
1
2
3
4
10, 13, 17 mm
225 mm
3x M8x13
