4.4.2 Using a crane

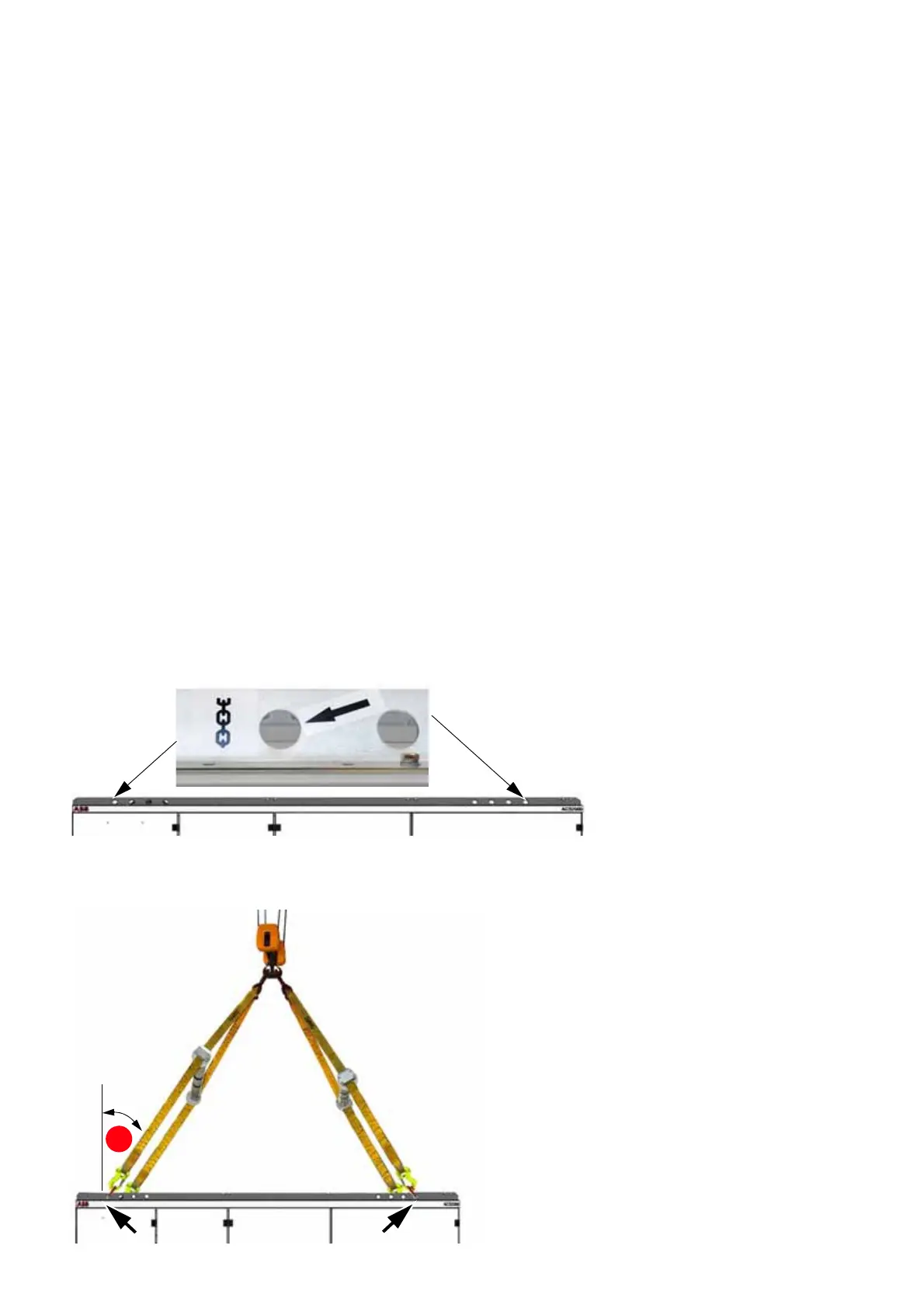

Observe the following points when using a crane:
• Use lifting equipment (eg, web slings, chain
slings, round slings, safety hooks, shackles)
that corresponds to the weight of the cabinet.
• Attach a sling to the outer holes of the rails. The
holes are marked with a chain and an arrow.
The rails can be removed after the cabinet has
been installed at its final location.
• Do not pass a sling through the hole.
Use appropriate safety hooks or shackles to
attach a sling.
• Verify that the slope angle (1) is appropriate to
the weight of the cabinet.
• Observe the center of gravity.
• Lift the cabinet slowly and steadily to the
required clearance height maintaining the cabi-
net in upright position.
• Check the horizontal position of the cabinet.
Reposition the slings if necessary.
4-2 Transporting the
cabinet by crane
