36 ACS2000 DFE UM 3BHS360367 ZAB E01 REV. K

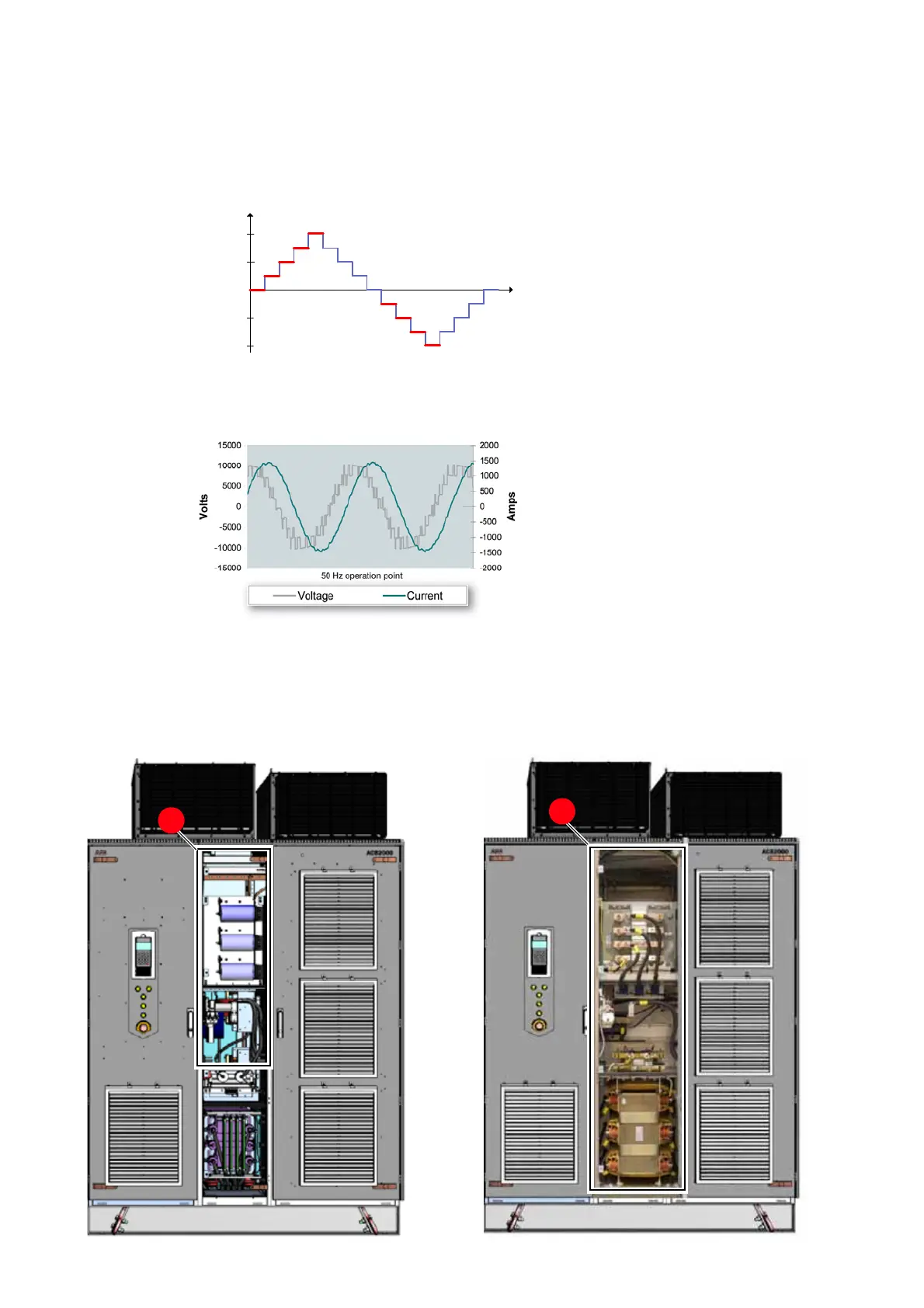

The active 3-phase unit is designed as a self-com-
mutated, 5-level voltage source inverter. As a result
of the multi-level topology, the drive produces an
optimum number of switching levels - nine levels,
phase to phase.
The resulting waveforms permit the application of
standard motors.
2.3.4 EMC and sine filter
Depending on the application, the drive is
equipped with one of the following filters at the
output of the inverter:
•EMC filter (1)
• Sine filter (2)
P
P
P
P
P
P
10000 V
5000 V
- 5000 V
- 10000 V
P
P
P
10000 V
5000 V
- 5000 V
- 10000 V
