44 ACS2000 DFE UM 3BHS360367 ZAB E01 REV. K
—
3.1 Overview
The control compartment incorporates the hardware for the control,
monitoring and protection functions of the drive, and the
communication interfaces to the local control panel and to the remote
control devices.
Depending on the control concept of the drive sys-
tem, the remote control devices include a higher-
level control system and / or remote operator sta-
tions.
—
References
—

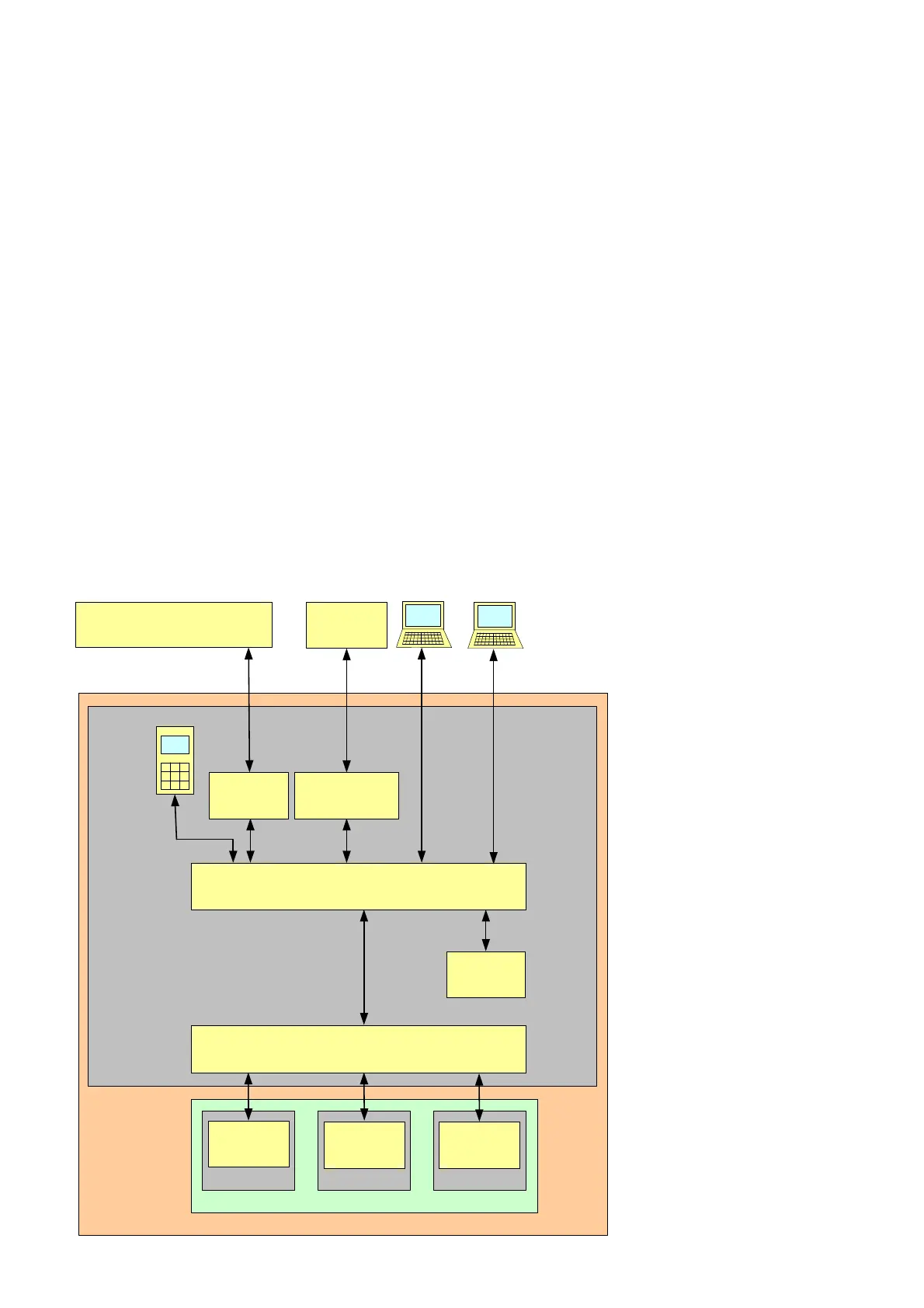

3-1 Block diagram of
control system
—
3-1
Fieldbus
adapter
ACS2000
IOEC
I/O modules
AMC circuit board
INT circuit board
INU
INU
circuit board
Phase-INT
Phase module
Phase module Phase module
INU
External
devices
Higher-level
Pulse
encoder*
CDP control panel
DriveWare
®
DriveMonitor
DDCS
DDCS
RS485
PPCS
DDCS
PPCS
PPCS PPCS
* option
DDCS
control system
circuit board
Phase-INT
circuit board
Phase-INT
