ABB ACS2000 DFE - Page 80

80 ACS2000 DFE UM 3BHS360367 ZAB E01 REV. K
1
2
3
1
2
3
FE
PE
U1
V1 W1
U
V
W
U2
V2
W2
123
1
2
3
PE
FE
U2
V2
W2
U1
V1 W1
M
PE
PE
—
6-2

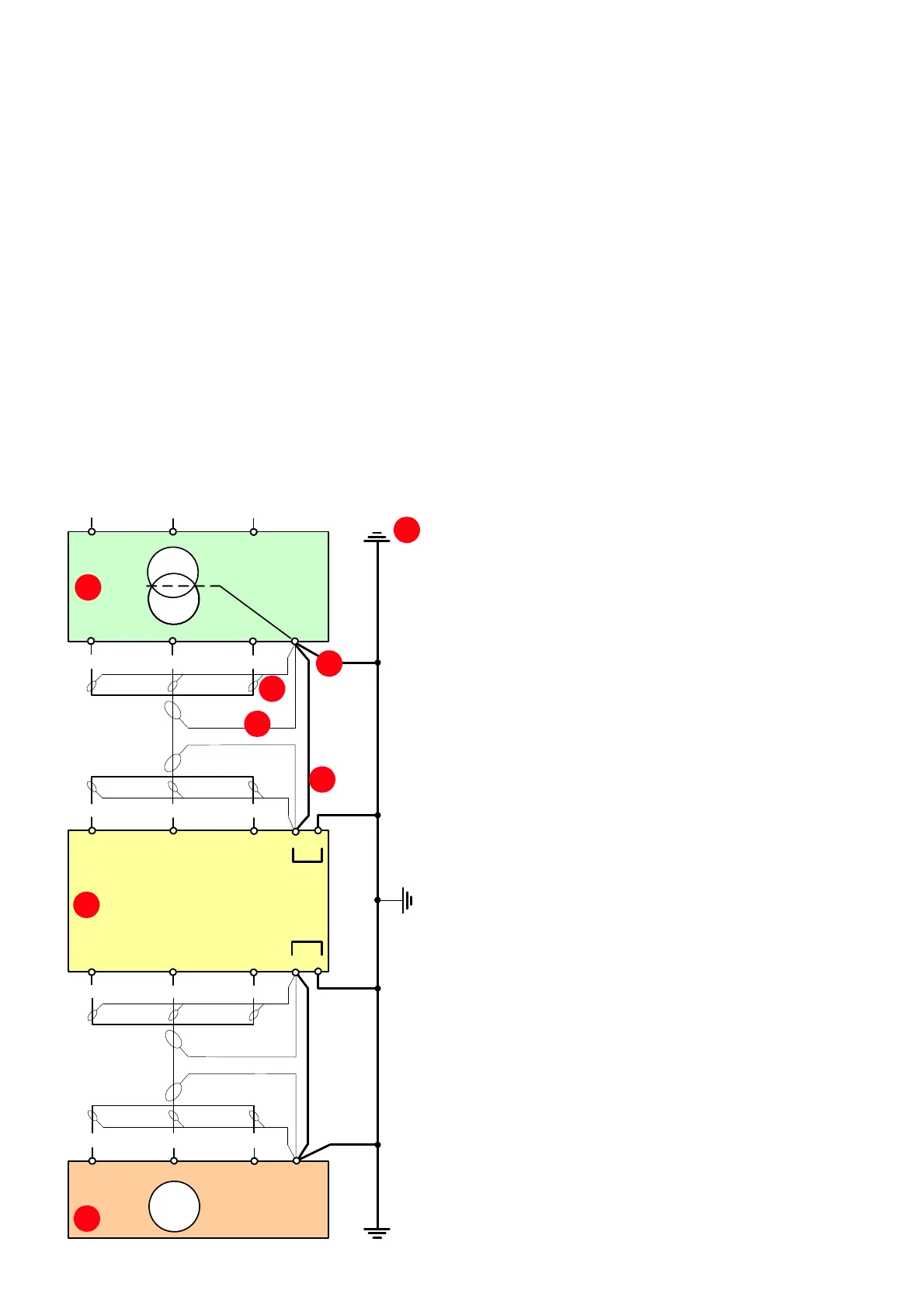

1. Input transformer
2. Drive
3. Motor
4. Earth electrode
5. Ground cable
6. Cable screen
7. Cable shield
8. Equipotential bonding conductor
1
2
3
8
7
6
5
4
—
References
—
6-2 Grounding drive
system and non-
integrated transformer
