ABB AMVAC - ED2.0 CIRCUIT BOARD CONNECTIONS, JUMPERS AND DIP SETTINGS

42
1VAL050601-MB Rev C
APPENDIX C
I1002 I1004
KM1005 (INPUTS)
14 - Under voltage
13 + Under Voltage
12 - Close Blocking
11 + Close Blocking
10 Not Used
9 Not Used
8 - 2nd Trip/Protect trip
7 + 2nd Trip/Protect trip
6 - Aux Open/Safe Open
5 + Aux Open/Safe Open
4 - CB Remote Open
3 + CB Remote Open
2 - CB Remote Close
1 + CB Remote Close
KM1004 (OUTPUTS)
14 - Remote Open
13 + Remote Open
12 - Not Ready
11 + Not Ready
10 + Ready
9 - Ready
8 - CB Aux Closed
7 + CB Aux Closed
6 - CB Aux Open
5 + CB Aux Open
4 - CB Closed
3 + CB Closed
2 - CB Open
1 + CB Open
ED2.0 CIRCUIT BOARD CONNECTIONS, JUMPERS AND DIP SETTINGS

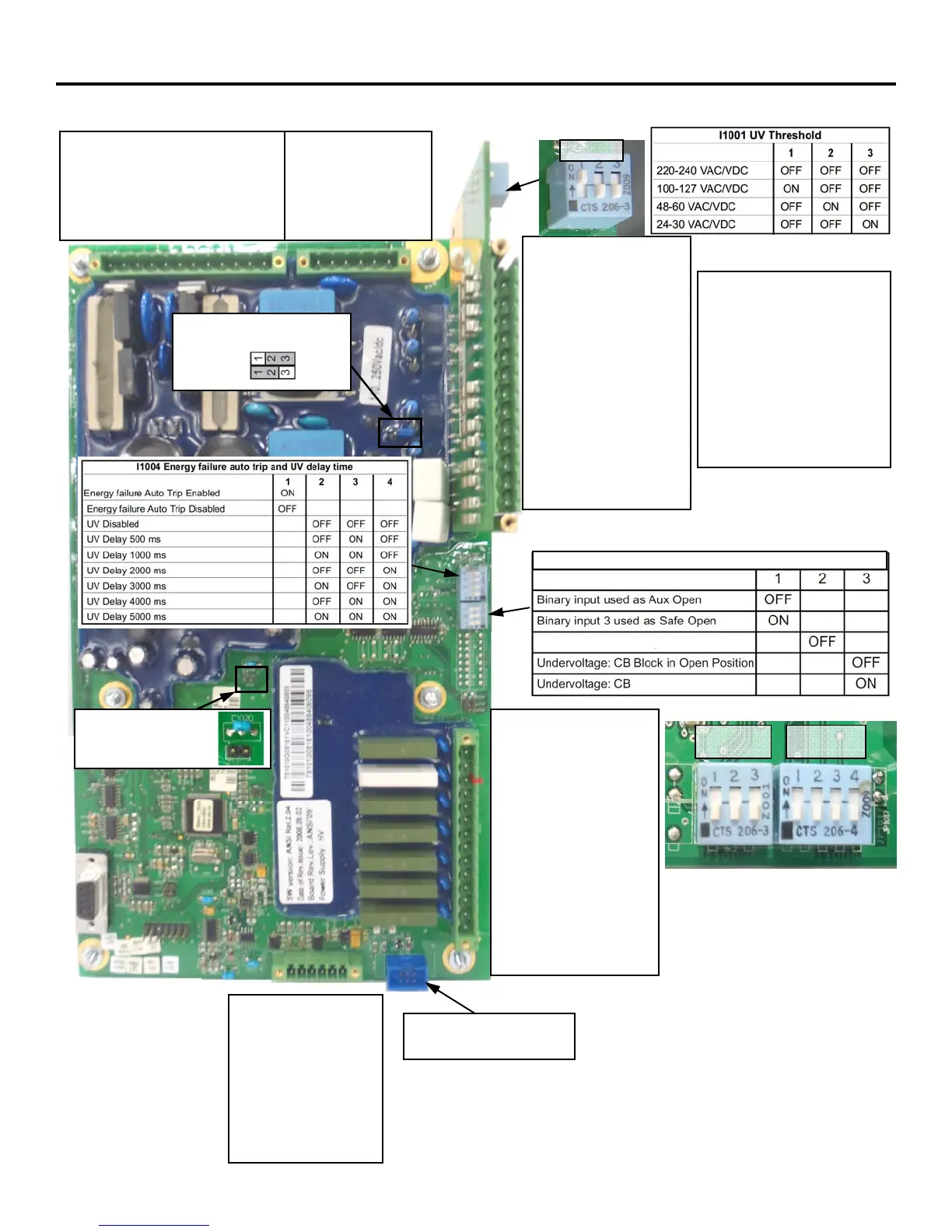

F IGURE 3 – ED2.0 CIRCUIT BOARD
KM1002 12 Off Coil 11 Off Coil 10 On Coil 9 On Coil 8 Off Coil 7 Off Coil 6 On Coil 5 On Coil 4 GND 3 GND 2 80V 1 80V KM1003 6 5 cap discharge 4 cap discharge 3 - Aux Supply 2 + Aux Supply 1 GND
KM1001 POSITION
SENSORS
CB Open SIG +18 VDC 6
CB Closed SIG +18 VDC 5
+18 VDC 4 +18 VDC 3
0 VDC 2
0 VDC 1
KM1007
PUSH BUTTON ASSY
JP1001
PROTECTION TRIP / SECOND TRIP
NORMAL
PROTECTION
NOTE: The filter card has wire
jumpers for each binary input.
If the jumpers are left in-
stalled, the input voltage
threshold is as listed in the
instruction book. If cut the
voltage level required is ap-
proximately 20V higher.
These are typically “not al-
ways” cut for high voltage
board applications and are left
intact for low voltage boards.
I1002 AUX/SAFE OPEN and UV BLOCK OPEN
JP1019 ADD JUMPER FOR
LOW POWER 33 WATT SET-
TING
I1001
