ABB AMVAC - Appendix D: Wiring Diagrams

43
1VAL050601-MB Rev C
APPENDIX D

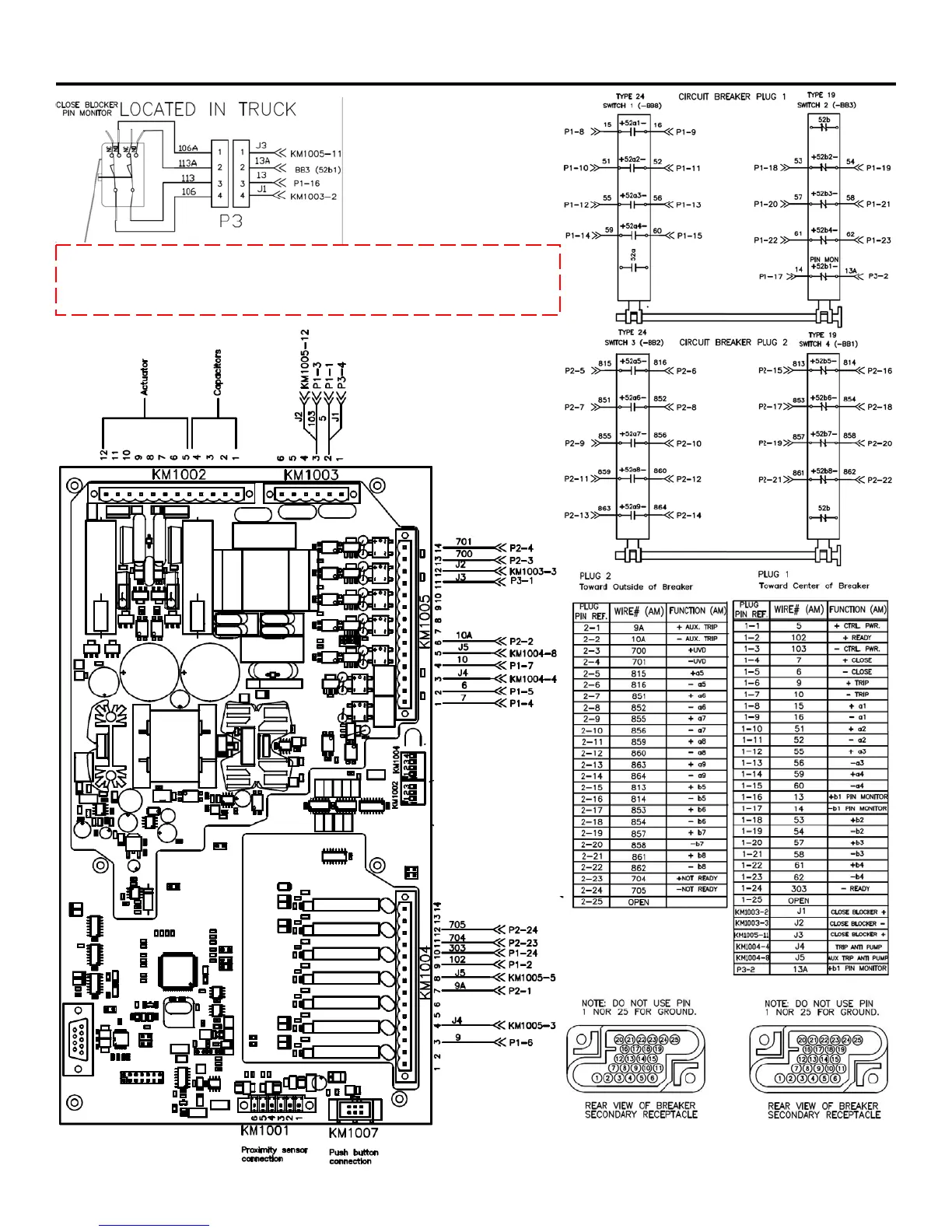

NOTE: Single secondary
draw-out has only plug 1.
* NOTE: On Fixed Mount Breakers ONLY P3-1 and P3-4 does not ex-
ist. Pin 11 on KM1005 is directly wired to Pin 2 on KM1003 for the
Lock Circuit Breaker open circuit. Also P1-16 wire 13 goes directly to
*
*
*
*
*
Provided by Northeast Power Systems, Inc. (NEPSI)
