ABB AMVAC - Page 44

44
1VAL050601-MB Rev C
APPENDIX D

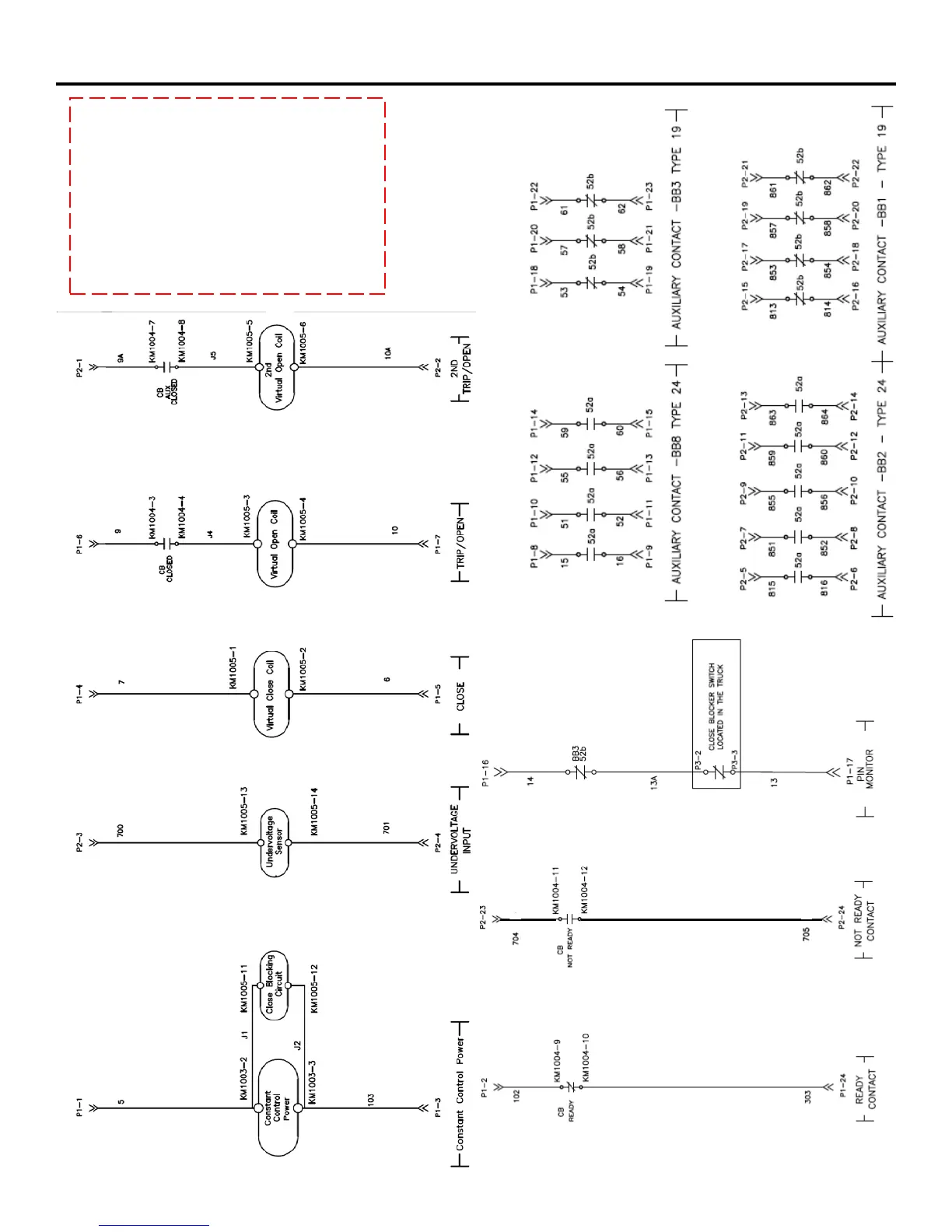

* NOTE: On Fixed Mount Breakers ONLY P3-1 and P3-4 does not exist. Pin 11 on KM1005 is directly wired to Pin 2 on KM1003 for the Lock Circuit Break- er open circuit. Also P1-16 wire 13 goes directly to 52b1 on BB3
*
*
Provided by Northeast Power Systems, Inc. (NEPSI)
